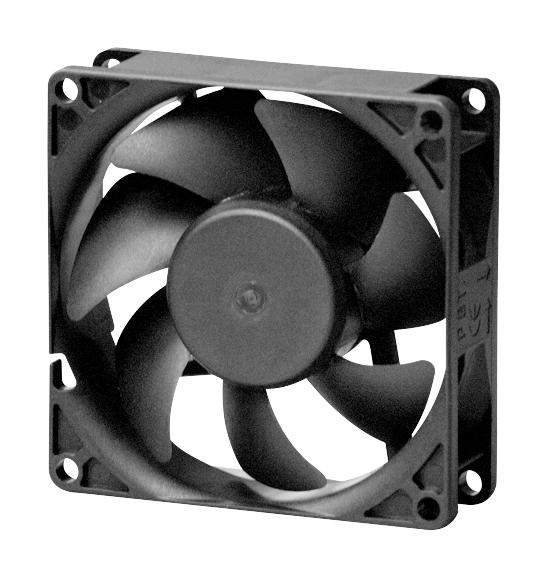

MULTICOMP MC002708 DC Axial Fan
The multicomp DC axial fan measures 80mm x 80mm x 25mm and operates efficiently on 12V DC. Designed with a Vapo bearing system, it produces a airflow of 37 CFM at a noise level of 30dB. Its single-phase, 4-pole bushless motor offers high durability with an estimated lifespan of 60,000 hours. The fan is suitable for cooling applications in electronic devices and industrial equipment, featuring thermoplastic PBT frames, UL Class A insulation, and automatic restart protection. Mountable via four 4.3mm holes, it maintains reliable performance across temperature ranges from -10°C to +70°C.
MULTICOMP MC002708 DC Axial Fan Specifications:
- Dimensions: 80mm x 80mm x 25mm
- Rated Voltage: 12V DC
- Rated Current: 92mA / Max. 106mA
- Rated Power Consumption: 1.11W / Max. 1.28W
- Operating Voltage Range: 4.5 to 13.8V DC
- Starting Voltage: 4.5V DC
- Operating Temperature Range: -10°C to +70°C
- Motor Design: Single Phase, 4-Pole Bushless DC Motor
- Bearing System: Vapo Bearing
- Fan Blade Material: Thermoplastic PBT of UL 94V-0
- Frame Material: Thermoplastic PBT of UL 94V-0
- Rated Speed: 2,900 RPM ±10%
- Air Flow: 37 CFM
- Static Pressure: 0.15 Inch-H2O
- Acoustic Noise: 30dB(A)
- Protection: Polarity, Automatic Restart, Dielectric Strength
- Life Expectancy: 60,000 Hours @ 40°C, 65% Humidity
- Mounting Holes: 4 Holes, 4.3mm Diameter
- Weight: 75g
- Insulation Resistance: 10MQ @ 500V DC
- Certifications: UL Class A
Buy the Buy Multicomp Fan Part Number MC002708 Online
Order the multicomp 80mm x 80mm x 25mm DC axial fan MC002708 online for efficient cooling in electronic devices and industrial systems. Featuring a robust Vapo bearing system, a durable thermoplastic PBT frame, and UL safety certifications, this fan provides reliable airflow of 37 CFM at 30dB noise level. Its 12V DC operation, automatic restart, and high lifespan of 60,000 hours make it ideal for continuous operation in various environments. Easily mountable and engineered for precision and durability, buy now for optimal cooling performance.
Get multicomp fan MC002708 today—engineered for reliable cooling and long-lasting performance in electronic and industrial applications.
