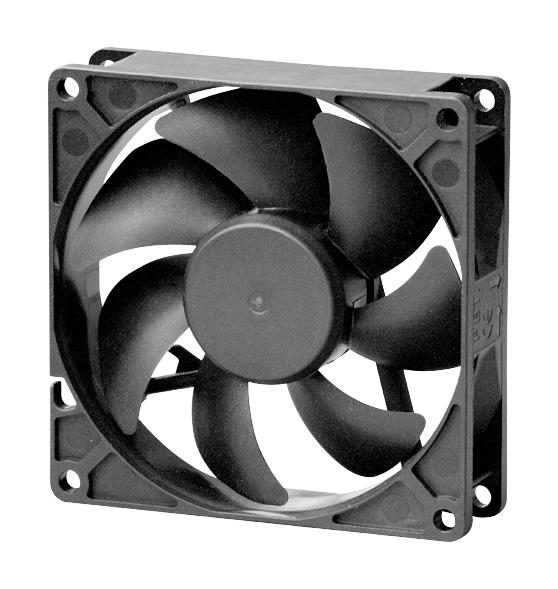

MULTICOMP MC002717 Axial Fan
This 92mm x 92mm x 25mm multicomp DC axial fan is designed for cooling and ventilation applications. Operates on 12V DC with a rated current of 370mA and a maximum of 426mA, consuming up to 5.12W. It features a thermoplastic PBT frame and blades, Vapo bearing system for durability, and a maximum speed of 4500RPM. Produces an airflow of 75 CFM, with a noise level of 45.5 dB, suitable for electronic cooling in various industrial and commercial systems. Designed for reliable, long-term operation up to 60,000 hours at optimal conditions.
MULTICOMP MC002717 Axial Fan Specifications:
- Dimension: 92mm x 92mm x 25mm
- Rated Voltage: 12V DC
- Rated Current: 370mA / Max. 426mA
- Power Consumption: 4.44W nominal / Max 5.12W
- Operating Voltage Range: 6V to 13.8V DC
- Rated Speed: 4500RPM ±10%
- Air Flow: 75.0 CFM
- Static Pressure: 0.35 Inch-H₂O
- Noise Level: 45.5 dB (A)
- Bearing System: Vapo
- Frame Material: Thermoplastic PBT of UL 94V-0
- Blade Material: Thermoplastic PBT
- Insulation Class: UL Class A
- Life Expectancy: 60,000 Hours at 40°C, 65% Humidity
- Mounting Holes: 4 Holes of 4.3mm Diameter
- Weight: 106g
Buy the Multicomp Series Axial Fan: 92mm x 92mm x 25mm 12V 75CFM
Purchase the Multicomp Series 92mm x 92mm x 25mm DC axial fan now to benefit from efficient cooling, low noise operation, and long lifespan. Designed with premium thermoplastic material and Vapo bearings, this fan delivers an airflow of 75 CFM while operating at a rated 12V voltage. Its compact size makes it suitable for various electronic devices and industrial applications. Enjoy easy online ordering, fast shipping, and the confidence of a high-quality component that enhances your system’s performance and reliability.
Order your Multicomp Series Axial Fan today and ensure reliable cooling for your electronics and industrial systems with this durable 12V fan.
Frequently Asked Questions
Where can I buy MULTICOMP MC002717?
You can click on the BUY or RFQ button to purchase MC002717 from an authorized MULTICOMP distributor.
How do I troubleshoot issues or seek technical support for part MC002717?
You can download the MC002717 datasheet or visit the MULTICOMP website for support.
Who is the manufacturer of MC002717?
MULTICOMP
