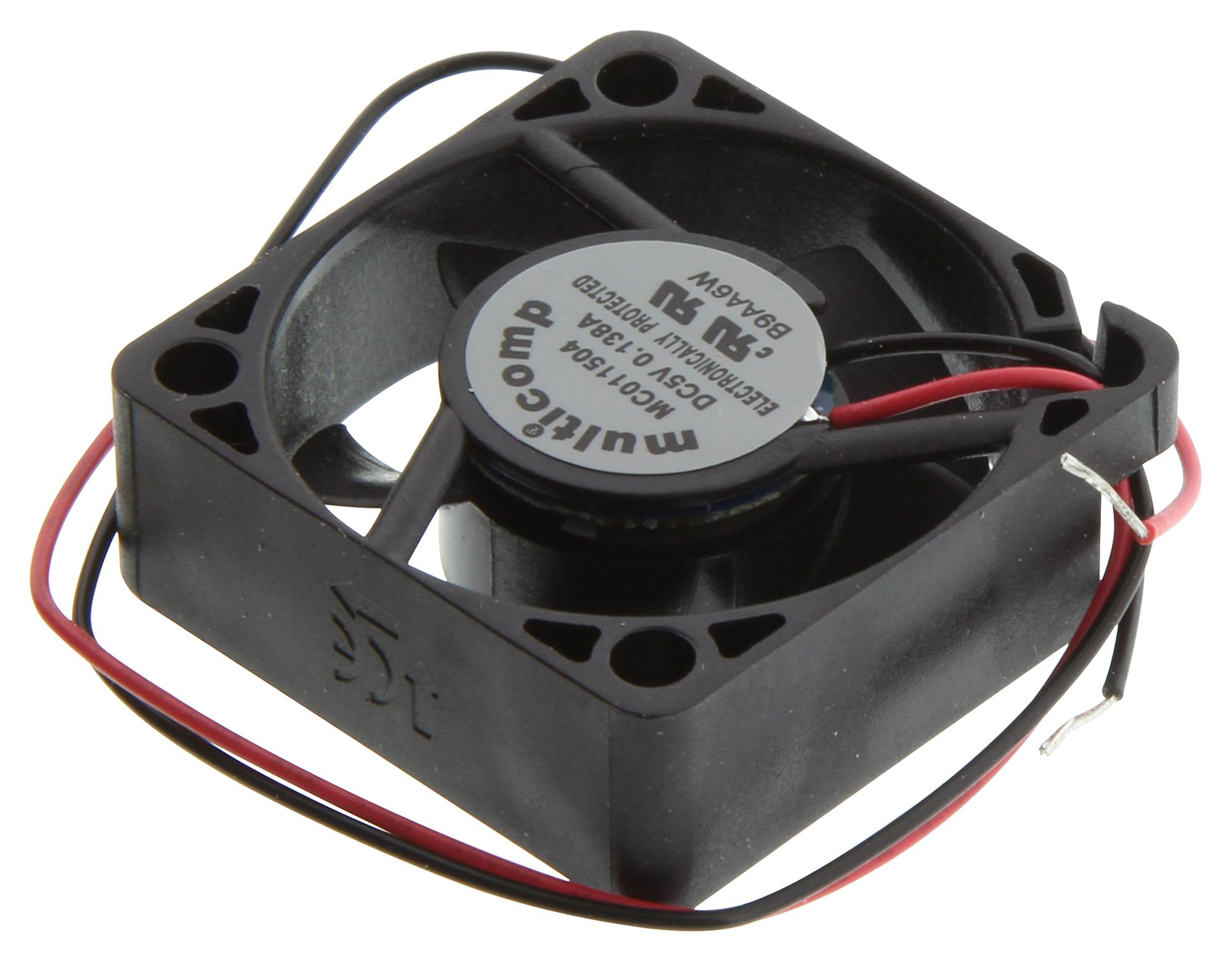

MULTICOMP MC011504 Axial Cooling Fan
These axial DC fans with Vapo bearings are compact, reliable cooling solutions measuring 30mm x 30mm x 10mm, suitable for electronics and industrial applications. They feature brushed DC motors with single-phase, 4-pole design and thermoplastic PBT frames and blades, ensuring durability and heat resistance. Operating voltages are 5V DC and 12V DC, with speeds reaching up to 11500 RPM. They offer excellent airflow, low noise levels, and safety protections, making them ideal for demanding environments requiring long life and stable performance.
MULTICOMP MC011504 Axial Cooling Fan Specifications:
- Dimensions: 30mm x 30mm x 10mm
- Material: Thermoplastic PBT of UL94V-0
- Bearing System: Vapo bearing
- Motor Design: Single phase, 4-poles brushless DC
- Rated Voltage: 5V DC / 12V DC
- Rated Current: 120mA / 138mA at 5V; 80mA / 92mA at 12V
- Rated Power Consumption: 0.6W / 0.69W at 5V; 0.4W / 0.46W at 12V
- Operating Voltage Range: 2.5V DC to 6V DC (5V model), 6V DC to 13.8V DC (12V model)
- Start Voltage: 2.5V DC (5V model), 6V DC (12V model)
- Speed: Up to 11500 RPM at rated voltage
- Airflow: 4.6 - 5.5 CFM
- Static Pressure: 0.14 - 0.25 Inch-H2O
- Noise Level: 20 - 23 dB(A)
- Life Expectancy: 60,000 hours at 40°C, 65% humidity
- Protection Features: Automatic restart, polarity protection
- Insulation Resistance: 10MQ @ 500V DC
- Dielectric Strength: AC 500V for 1 min or AC 600V for 2 sec
- Operating Temperature: -10°C to +70°C
- Storage Temperature: -40°C to +70°C
- Mounting Holes: 3 holes, diameter 3.2mm
Buy the Multicomp Series Axial Cooling Fan: MC011504
Enhance your cooling solutions with the reliable Multicomp Series Axial Cooling Fan, measuring 30mm x 30mm x 10mm, available in 5V and 12V variants. Designed with Vapo bearings and thermoplastic PBT frames, these fans deliver up to 11500 RPM, ensuring optimal airflow and low noise. Built for durability, they operate efficiently within -10°C to +70°C and have a lifespan of 60,000 hours. Perfect for electronics and industrial applications, they include protections like automatic restart and polarity safeguard. Convenient online ordering makes integrating this dependable fan into your project straightforward.
Order your Multicomp Series MC011504 Vapo Bearing 30mm x 30mm x 10mm axial fan today and give your electronics cooling projects the dependable performance they deserve.
Frequently Asked Questions
Where can I buy MULTICOMP MC011504?
You can click on the BUY or RFQ button to purchase MC011504 from an authorized MULTICOMP distributor.
How do I troubleshoot issues or seek technical support for part MC011504?
You can download the MC011504 datasheet or visit the MULTICOMP website for support.
Who is the manufacturer of MC011504?
MULTICOMP
