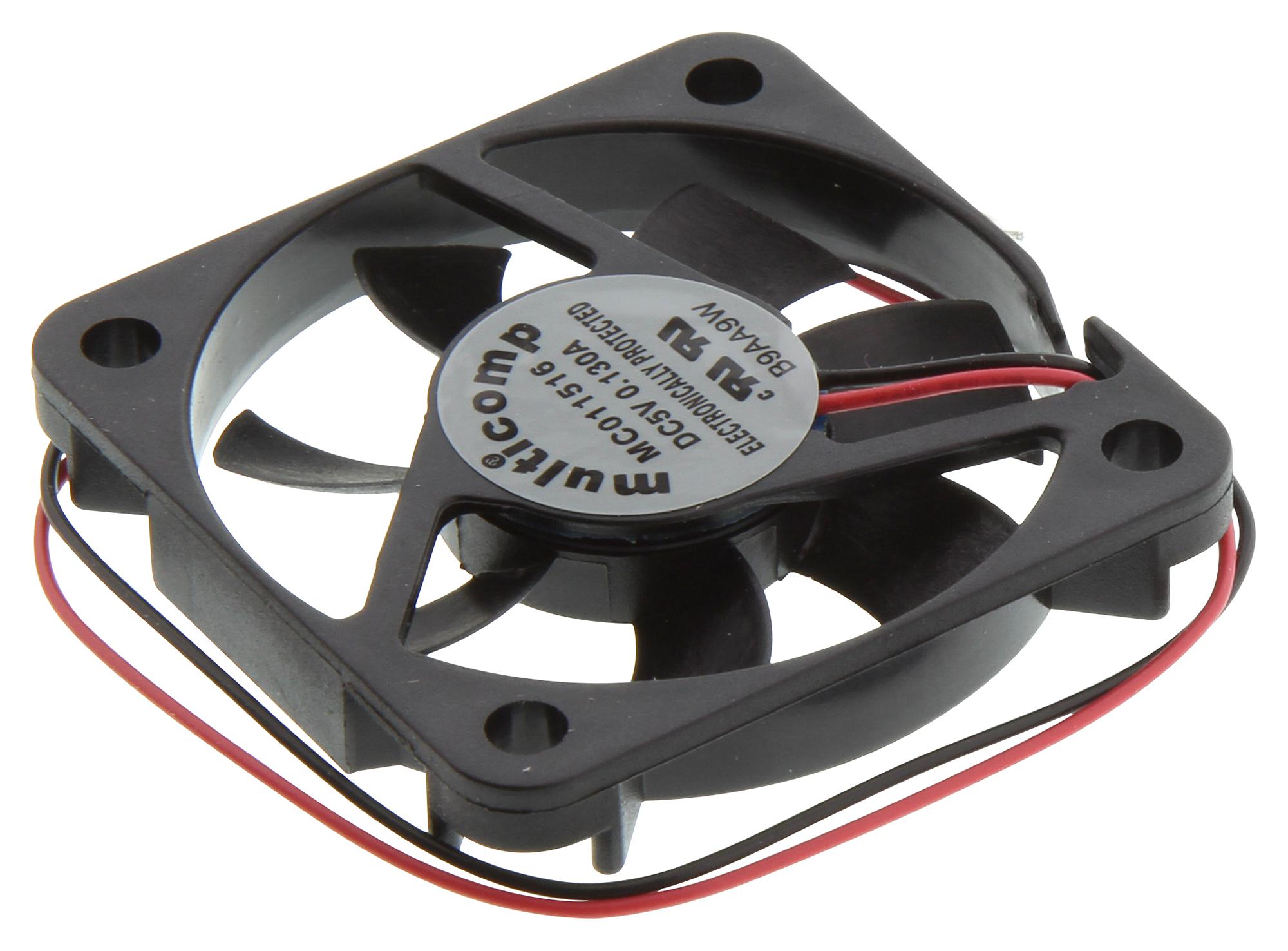

MULTICOMP MC011516 Axial Fan
This axial DC fan features a Vapo bearing system and measures 40mm x 40mm x 6mm, designed for efficient airflow and cooling in electronic devices. It uses a single-phase, 4-poles brushless motor capable of reaching 7000 RPM, with an airflow of 6.3 CFM and static pressure of 20.1 Inch-H20. The fan operates on 2.5V DC to 6V DC, consuming up to 0.51W, and is suitable for ambient temperatures from -10°C to +70°C. Made with UL94V-0 thermoplastic, it includes mounting holes for easy installation.
MULTICOMP MC011516 Axial Fan Specifications:
- Motor Design: Single phase, 4-poles Brushless DC motor
- Bearing System: Vapo bearing system
- Dimensions: 40mm x 40mm x 6mm
- Materials of Frame: Thermoplastic PBT of UL94V-0
- Materials of Fan Blade: Thermoplastic PBT of UL94V-0
- Direction of Rotation: Counter-clockwise viewed from front of fan blade
- Mounting Holes: Diameter 3.4mm in 4 holes
- Weight: 6.8g
- Rated Voltage: 5V DC
- Rated Current: 87mA / Max. 101mA
- Rated Power Consumption: 0.44W / Max. 0.51W
- Safety Power Consumption: 0.65W
- Operating Voltage Range: 2.5V DC to 6V DC
- Starting Voltage: 2.5V DC
- Operating Temperature Range: -10°C to +70°C
- Rated Speed: 7000 RPM +15%
- Air Flow: 6.3 CFM
- Static Pressure: 20.1 Inch-H20
- Acoustic Noise: 29.3 dB(A)
- Insulation Class: UL Class A
- Life Expectancy: 60,000 hours @ 40°C, 65% humidity
- Protection: Automatic Restart, Polarity Protection
- Certifications: UL, CUR, TUV, CE
Buy the Buy Mulitccomp Axial Fan Part Number MC011516 Online
Purchase the multicomp 40mm axial fan online today for your electronic cooling needs. Designed with a Vapo bearing system and capable of reaching 7000 RPM, this fan offers an airflow of 6.3 CFM and static pressure of 20.1 Inch-H20. Its compact size and durable thermoplastic frame ensure easy installation and long-term reliability. Operating efficiently from 2.5V to 6V DC, it meets UL safety standards, making it ideal for a wide range of electronic cooling applications in various environments.
Order your multicomp Series MC011516 40mm axial fan today and ensure reliable cooling for your electronic projects with this high-performance ventilator.
Frequently Asked Questions
Where can I buy MULTICOMP MC011516?
You can click on the BUY or RFQ button to purchase MC011516 from an authorized MULTICOMP distributor.
How do I troubleshoot issues or seek technical support for part MC011516?
You can download the MC011516 datasheet or visit the MULTICOMP website for support.
Who is the manufacturer of MC011516?
MULTICOMP
