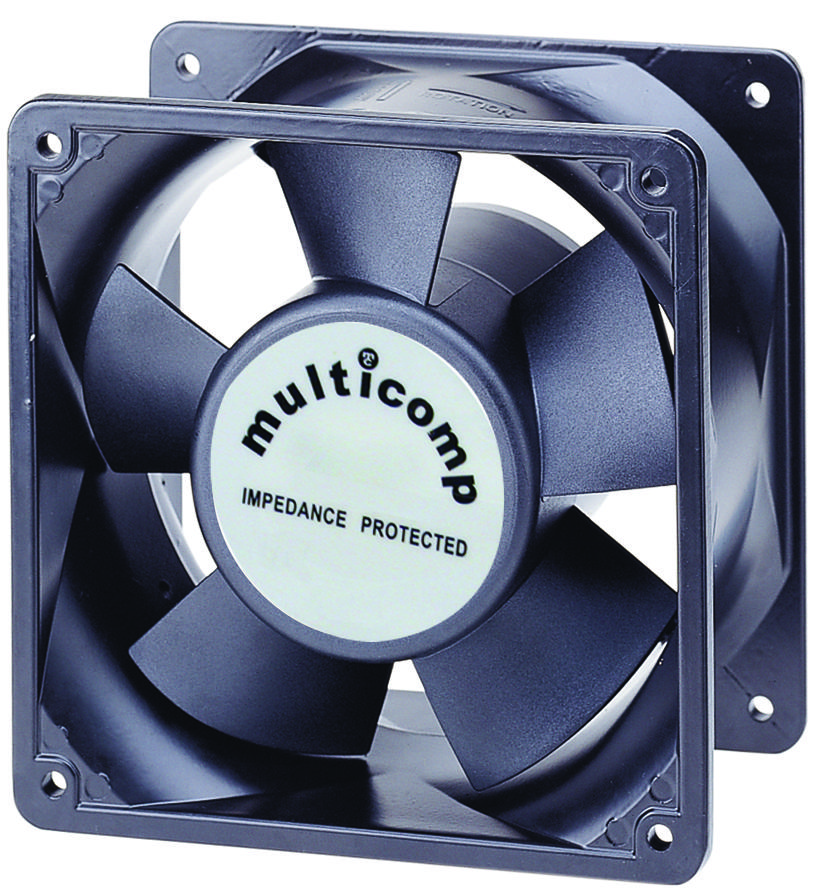

MULTICOMP MC25027 Axial Fan
The MC25027 is a high-quality axial fan designed for reliable air circulation in varied applications. Operating at 115VAC with a power range of 24/30W, it features a durable alveolate motor construction and precise ball bearing system. Its rated speed of approximately 2800/3250 RPM delivers an airflow of 315/335 CFM and static pressure of 0.65/0.8 inches H₂O, making it suitable for cooling and ventilation systems. The fan is UL, CE, and CUR approved, operating effectively over temperatures from -10°C to 70°C, with high insulation resistance and noise levels maintained below 66 dB(A). The fan rotates clockwise from the front and is protected with thermal safeguards.
MULTICOMP MC25027 Axial Fan Specifications:
- Rated Voltage: 115 VAC, 50/60 Hz
- Operating Voltage Range: 75-125 VAC
- Starting Voltage: 75 VAC
- Rated Speed: 2800/3250 RPM ±10%
- Air Delivery: 315/335 CFM
- Static Pressure: 0.65/0.8 inches H₂O
- Rated Power: 24/30 W
- Rated Current: 0.25/0.27 A
- Insulation Resistance: 500 Megohms minimum at 500 VDC
- Dielectric Strength: 1800 VAC for one second
- Noise Level: 62/66 dB(A)
- Direction of Rotation: Clockwise when viewed from front
- Operating Temperature: -10°C to +70°C
- Storage Temperature: -40°C to +70°C
- Bearing System: Ball bearings
- Weight: 1960 g
- Safety Certification: UL, CE, CUR approved
Buy the Fan Series Axial: MC25027
Buy the high-performance axial fan MC25027 online today for reliable cooling and ventilation support. With a powerful airflow of 315/335 CFM and speed of approximately 2800/3250 RPM, this fan is designed for durability and efficiency. Its alveolate motor construction ensures longevity, while UL and CE certifications guarantee safety and quality. Operating from -10°C to 70°C, it features a ball bearing system for smooth performance. Perfect for industrial and electronic cooling applications, purchase now for fast delivery and seamless installation.
Order your Fan Series Axial MC25027 today and give your cooling systems the dependable performance they need for efficient operation.
Frequently Asked Questions
Where can I buy MULTICOMP MC25027?
You can click on the BUY or RFQ button to purchase MC25027 from an authorized MULTICOMP distributor.
How do I troubleshoot issues or seek technical support for part MC25027?
You can download the MC25027 datasheet or visit the MULTICOMP website for support.
Who is the manufacturer of MC25027?
MULTICOMP
