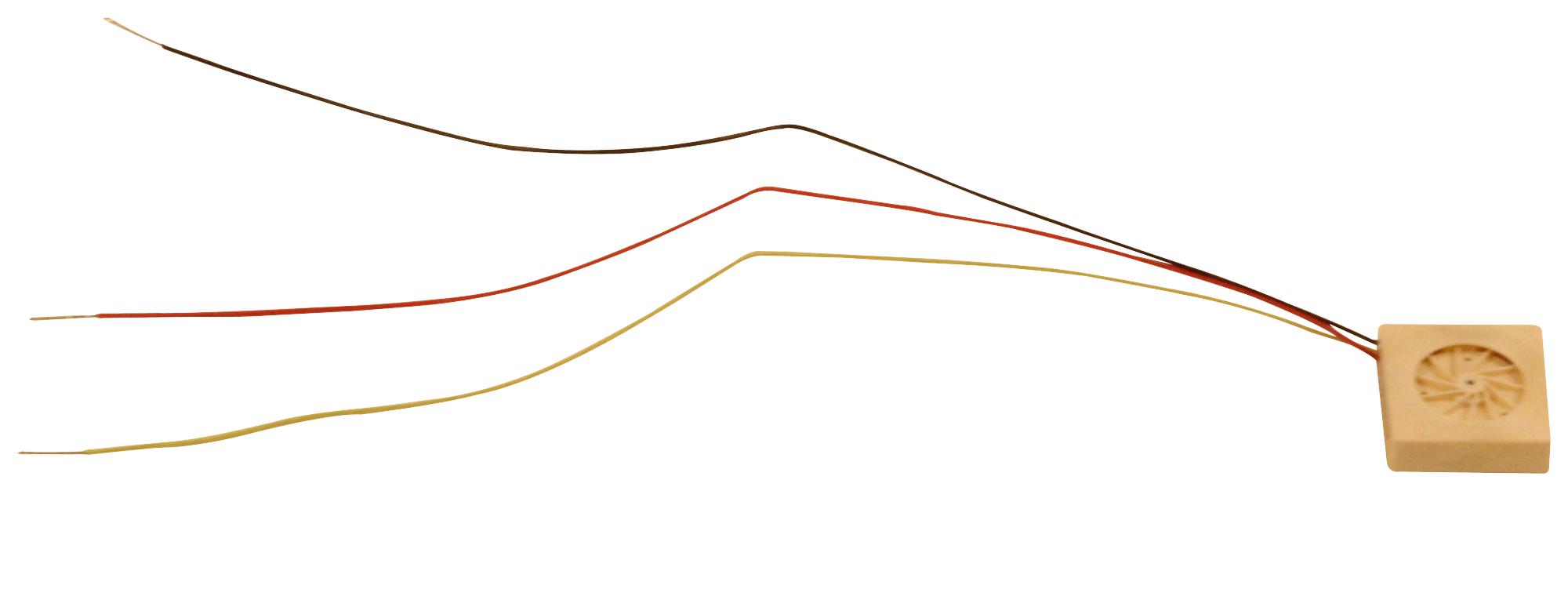

MULTICOMP MC34109 DC Brushless Blower
The DC Brushless Blower from Multicomp is a compact, high-performance cooling fan designed with a single-phase, 6-pole brushless DC motor. It features a 12mm x 12mm x 3mm thermoplastic LCP frame and impeller, operating quietly at noise levels of 18dB(A) at 1 meter and 26dB(A) at 0.3 meters. Rated for 3V DC with an operating range of 2V to 3.5V DC, it provides a maximum speed of 15,500 RPM. Engineered with Vapo Bearing System, it offers automatic restart protection and polarity safeguards for reliable long-term use in various temperature conditions.
MULTICOMP MC34109 DC Brushless Blower Specifications:
- Rated Voltage: 3V DC
- Operating Voltage Range: 2V DC to 3.5V DC
- Rated Speed: 15,500 RPM +30%
- Air Delivery: 2.67 Limin
- Static Pressure: 22.96 Pa
- Rated Current: 36mA
- Rated Power: 0.1 Watts
- Noise Level: 18dB(A) @ 1M, 26dB(A) @ 0.3M
- Direction of Rotation: Counter-clockwise viewed from front
- Operating Temperature: -10°C to +70°C
- Storage Temperature: -40°C to +70°C
- Bearing System: Vapo Bearing
- Weight: 0.89g
- Dimensions: 12mm x 12mm x 3mm
- Material: Thermoplastic LCP for frame and impeller
- Insulation Resistance: >20MQ at DC 100V
- Dielectric Strength: 2 seconds between housing and lead wire (+)
- Applied AC Voltage: 500V for 1min or 600V for 1min
Buy the Buy Multicomp DC Brushless Blower Part Number MC34109 Online
Order the Multicomp DC Brushless Blower online today for high efficiency, low noise operation, and robust protection features. Ideal for cooling electronics and appliances, this compact blower operates reliably within a 2V to 3.5V DC range, delivering up to 15,500 RPM. Its Vapo Bearing System ensures durability and quiet operation. Perfect for demanding environments with temperature ranges from -10°C to +70°C, it provides a dependable solution for various industrial and electronic cooling needs. Purchase now to enhance your device performance.
Get Multicomp MC34109 today—built for precision, long-lasting durability, and reliable cooling performance in compact applications.
Frequently Asked Questions
Where can I buy MULTICOMP MC34109?
You can click on the BUY or RFQ button to purchase MC34109 from an authorized MULTICOMP distributor.
How do I troubleshoot issues or seek technical support for part MC34109?
You can download the MC34109 datasheet or visit the MULTICOMP website for support.
Who is the manufacturer of MC34109?
MULTICOMP
