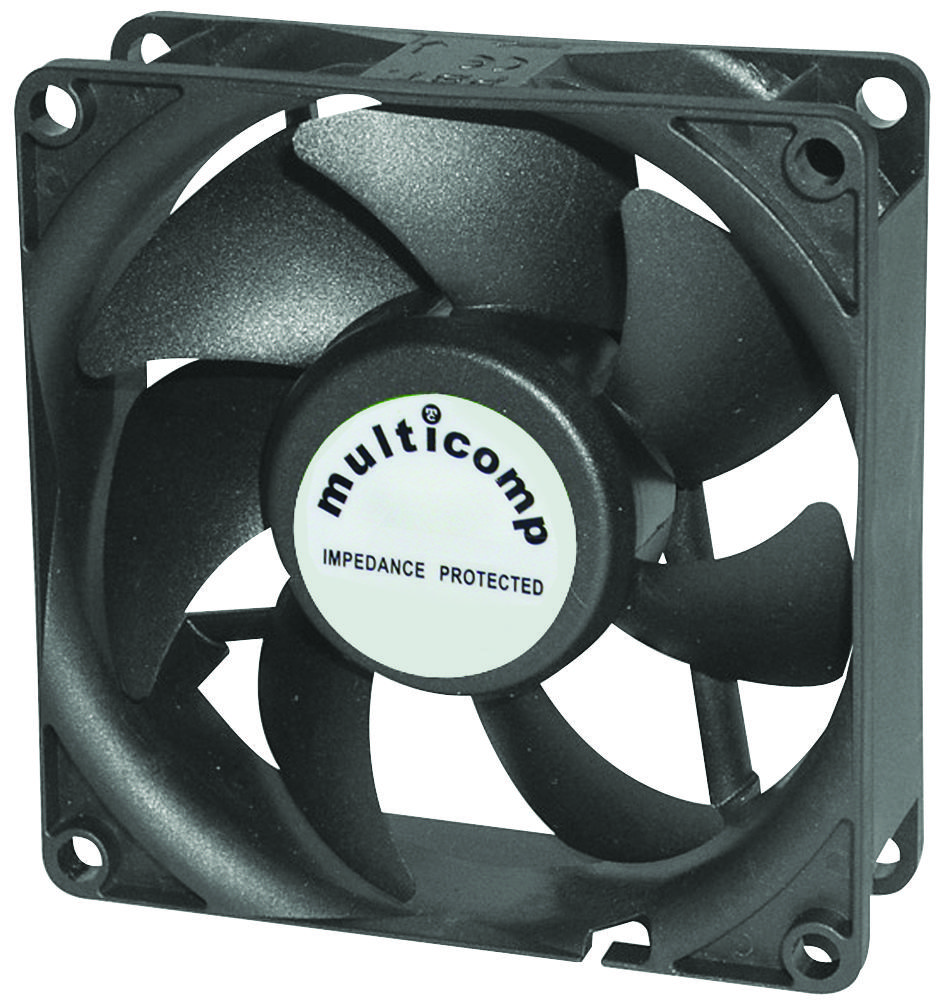

MULTICOMP MC35353 Cooling Fan
The MC35353 is a 12V DC axial fan featuring a VAPO bearing and a thermoplastic PBT impeller. It has a brushless DC motor housed within a thermoplastic PBT frame and is powered via lead wires. The fan includes an automatic restart function that temporarily disables power if the fan is locked by an external force to prevent coil overheating, and it will automatically restart once the lock is released. The fan rotates counter-clockwise when viewed from the front. It operates within a temperature range of -10°C to 70°C.
MULTICOMP MC35353 Cooling Fan Specifications:
- External Height / Width: 92mm
- External Depth: 25mm
- Current Type: DC
- Current Rating: 91mA
- Power Connection Type: Lead Wires
- Input Voltage Max: 13.8V
- Rated Voltage: 12V DC
- Operating Voltage Range: 4.5 to 13.8V DC
- Starting Voltage: 4.5V DC (25°C, Power On/Off)
- Rated Speed: 2,400 RPM + 10% at rated Voltage
- Acoustic Noise: 28dB (A)
- Static Pressure: 0.1"-H,O
- Rated Current: 91mA
- Rated Power: 1.3W
- Weight: 194g
- Direction of Rotation: Counter-clockwise viewed from front of fan blade
- Operating Temperature: -10°C to +70°C
- Storage Temperature: -40°C to +70°C
- Bearing System: VAPO bearing system
- Air Flow: 39.5 CFM
- Frame: Thermoplastic PBT
- Impeller: Thermoplastic PBT
- Locked Rotor Protection: Automatic Restart
- RoHS: Compliant
Buy the Multicomp Series Axial Fan: MC35353
Purchase the multicomp MC35353 cooling fan online today to ensure efficient thermal management for your electronic projects. This high-performance 12V DC axial fan is equipped with a VAPO bearing for durability and a thermoplastic PBT impeller for lightweight strength. Its automatic restart feature prevents damage from locked rotor conditions, making it ideal for various cooling applications. With a quiet operation of 28dB and a weight of 194 grams, this fan provides reliable and silent airflow, ensuring your devices stay cool and protected.
Buy multicomp MC35353 now and experience unmatched reliability and performance with efficient cooling and automatic restart protection.
