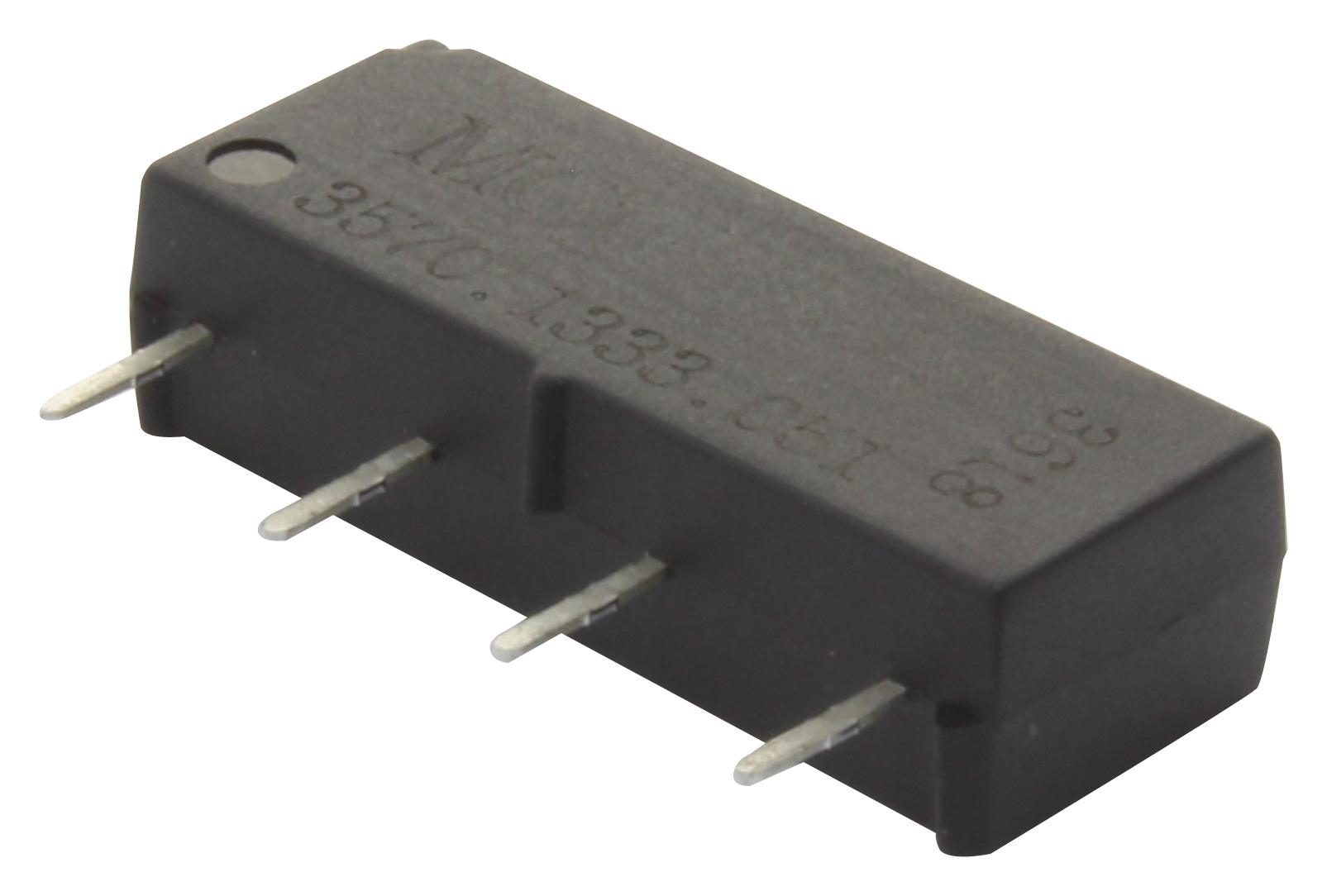

MULTICOMP MC35701411051 Reed Relay
This instrumentation grade mini SIP reed relay offers high reliability with sputtered Ruthenium contacts, designed for industrial applications requiring precise switching. It features a compact 10W power rating, hermetically sealed contacts for long life, and high insulation resistance. The relay is suitable for high-density board designs and stringent operating conditions, with a fast operate time of 0.35ms and a release time of 0.1ms. It supports switching voltages up to 200V DC and a maximum switching power of 10W, making it ideal for automation and measurement systems.
MULTICOMP MC35701411051 Reed Relay Specifications:
- Contact Resistance (Initial): 150mΩ
- Operate Time: 0.35ms
- Release Time: 0.1ms
- Insulation Resistance: 10^7Ω at 100V
- Dielectric Strength: 200V DC/peak AC between open contacts
- Capacitance: 0.5pF
- Vibration: 20G
- Shock: 50G
- Operating Temperature: -40°C to +85°C
- Storage Temperature: -40°C to +100°C
- Life Expectancy at specified load: 100 million operations
- Coil Voltage: 5V DC
- Coil Resistance: 500Ω
- Switching Power (Max.): 10W
- Switching Voltage (Max.): 200V DC
- Switching Current (Max.): 0.5A
- Carrying Current (Max.): 0.5A
- Dimensions: 0.6 inches (15.24mm) length, 0.125 inches (3.18mm) width, pin pitch 0.1 inches (2.54mm)
Buy the multicomp MC3570-1411-051 – Reliable Reed Relay for Industrial Applications
Purchase the multicomp reed relay online today for dependable performance in industrial automation and testing environments. Featuring high insulation resistance, hermetically sealed contacts, and quick response times, this relay ensures reliable switching up to 200V DC and 10W power capacity. Its compact design supports high-density circuit boards, making it ideal for precise control applications across various industries. Enjoy fast, secure delivery and enhance your system’s reliability by choosing this high-quality reed relay for your projects.
Get multicomp MC3570-1411-051 today—built for precision and long-lasting durability in automation systems.
