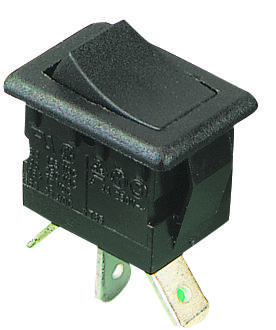

MULTICOMP MC3632801101 Miniature rocker switch
The MC36328-011-01 is a compact and reliable miniature rocker switch designed for industrial and electronic applications. It features a non-illuminated SPDT switching mechanism with a black actuator, fitting standard panel cut-outs with a 4.8mm quick connect terminal. Rated for 4A at 250V ac, it offers a mechanical life exceeding 100,000 cycles and an endurance life over 20,000 cycles at full load. With a contact resistance below 20mΩ and insulation resistance over 50MΩ, it ensures dependable performance. Suitable for panel thicknesses between 1mm and 3mm, it meets safety standards up to 3.5kV dielectric strength and PTI 250 soldering parameters, making it ideal for various industrial, control, and appliance uses.
MULTICOMP MC3632801101 Miniature rocker switch Specifications:
- Ratings: 4A at 250V AC
- Operating Temperature: 0°C to +85°C
- Terminal: 4.8mm quick connect
- Panel Cut-Out: 19.3 x 13 mm (minimum), 119.5 x 13 mm (maximum)
- Mechanical Life: >100,000 cycles
- Endurance Life at Full Load: >20,000 cycles
- Contact Gap: 0.3mm
- Insulation Gap: 8mm
- Contact Resistance: <20 mΩ
- Insulation Resistance: <50 MΩ (500V DC)
- Dielectric Strength: Up to 3.5kV
- Soldering Parameters: PTI 250, 50W iron, 300°C tip, within 3s
- Dimensions: 21 x 15 mm bezel depth 22.7 mm
- Material: Polycarbonate bezel, copper contacts, black actuator
- Certification: Meets safety and insulation standards
- Application: Suitable for industrial control panels and electronic devices
Buy the multicomp Series MC36328 Miniature Switch: MC36328-011-01
Purchase the multicomp Series MC36328 miniature rocker switch online today to benefit from reliable performance, high durability, and easy installation. This SPDT non-illuminated switch features a 4.8mm quick connect terminal, rated for 4A at 250V AC, and is suitable for controlling power circuits in industrial devices and control panels. Its robust construction ensures over 100,000 cycles of mechanical life and 20,000 cycles at full load, making it an excellent choice for demanding environments. Order now for fast delivery and quality assurance.
Order your multicomp Series MC36328 miniature switch today and ensure reliable switching performance for your industrial control projects.
Frequently Asked Questions
Where can I buy MULTICOMP MC3632801101?
You can click on the BUY or RFQ button to purchase MC3632801101 from an authorized MULTICOMP distributor.
How do I troubleshoot issues or seek technical support for part MC3632801101?
You can download the MC3632801101 datasheet or visit the MULTICOMP website for support.
Who is the manufacturer of MC3632801101?
MULTICOMP
