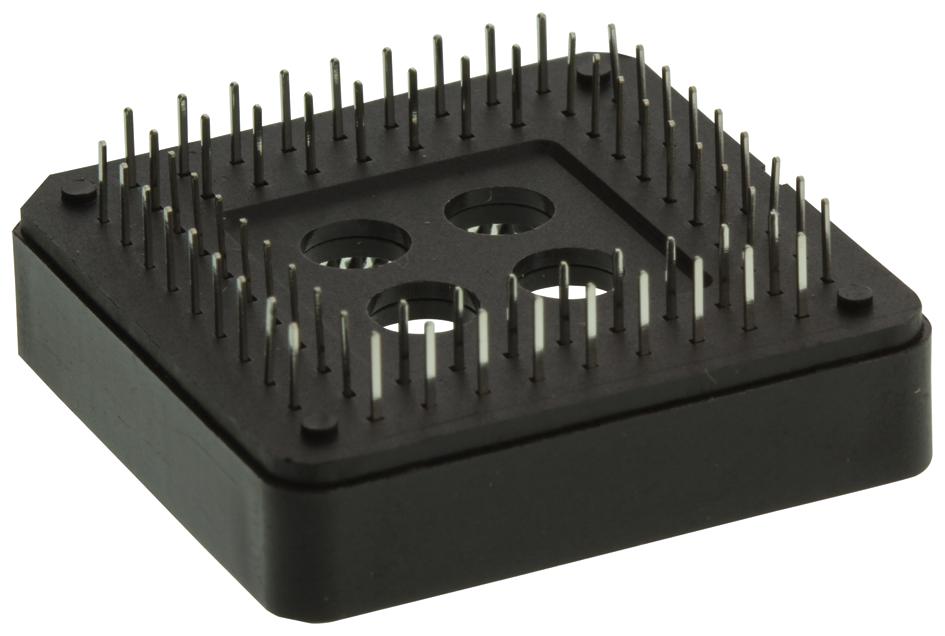

MULTICOMP MC68PLCC PLCC Socket
The MC-68PLCC is a 68-pin through-hole PLCC socket made from black PBT/glass-reinforced insulator with phosphor bronze contacts and tin over copper plating. It offers a contact resistance of 30 milliohms, insulation resistance over 1000 megaohms, and a dielectric withstanding voltage of 500VAC per minute. Rated for 250VAC and 1A, it operates from -20°C to +85°C with a recommended soldering temperature of 235°C. Ideal for industrial electronics, it ensures reliable performance and secure connections in various component mounting applications.
MULTICOMP MC68PLCC PLCC Socket Specifications:
- Material: PBT, Glass reinforced
- Insulator Colour: Black
- Contacts: Phosphor bronze
- Plating: Tin over copper underplate
- Operating Voltage: 250V AC
- Current Rating: 1A
- Contact Resistance: 30mΩ
- Insulation Resistance: 1000MΩ
- Dielectric Withstanding Voltage: 500V AC for 1 min
- Operating Temperature: -20°C to +85°C
- Recommended Soldering Temperature: 235°C
- Dimensions: Length 1.245 inches (31.6mm), Width 0.8 inches (20.32mm), Hole Pitch 2.54mm
Buy the Buy multicomp PLCC Socket Part Number MC68PLCC Online
Order the multicomp MC68PLCC socket online today and ensure your electronic assemblies benefit from durable, high-performance connections. Designed with precision materials, it features a black PBT/glass-reinforced insulator and phosphor bronze contacts with tin plating for corrosion resistance. Its wide operating temperature range of -20°C to +85°C and rated voltage of 250VAC make it ideal for industrial and manufacturing environments. Secure your electronic projects with a trusted socket that offers low contact resistance, excellent insulation, and easy soldering — order now for fast delivery and reliable performance.
Buy multicomp MC68PLCC now and experience reliable connections with high insulation resistance and robust construction for industrial applications.
Frequently Asked Questions
Where can I buy MULTICOMP MC68PLCC?
You can click on the BUY or RFQ button to purchase MC68PLCC from an authorized MULTICOMP distributor.
How do I troubleshoot issues or seek technical support for part MC68PLCC?
You can download the MC68PLCC datasheet or visit the MULTICOMP website for support.
Who is the manufacturer of MC68PLCC?
MULTICOMP
