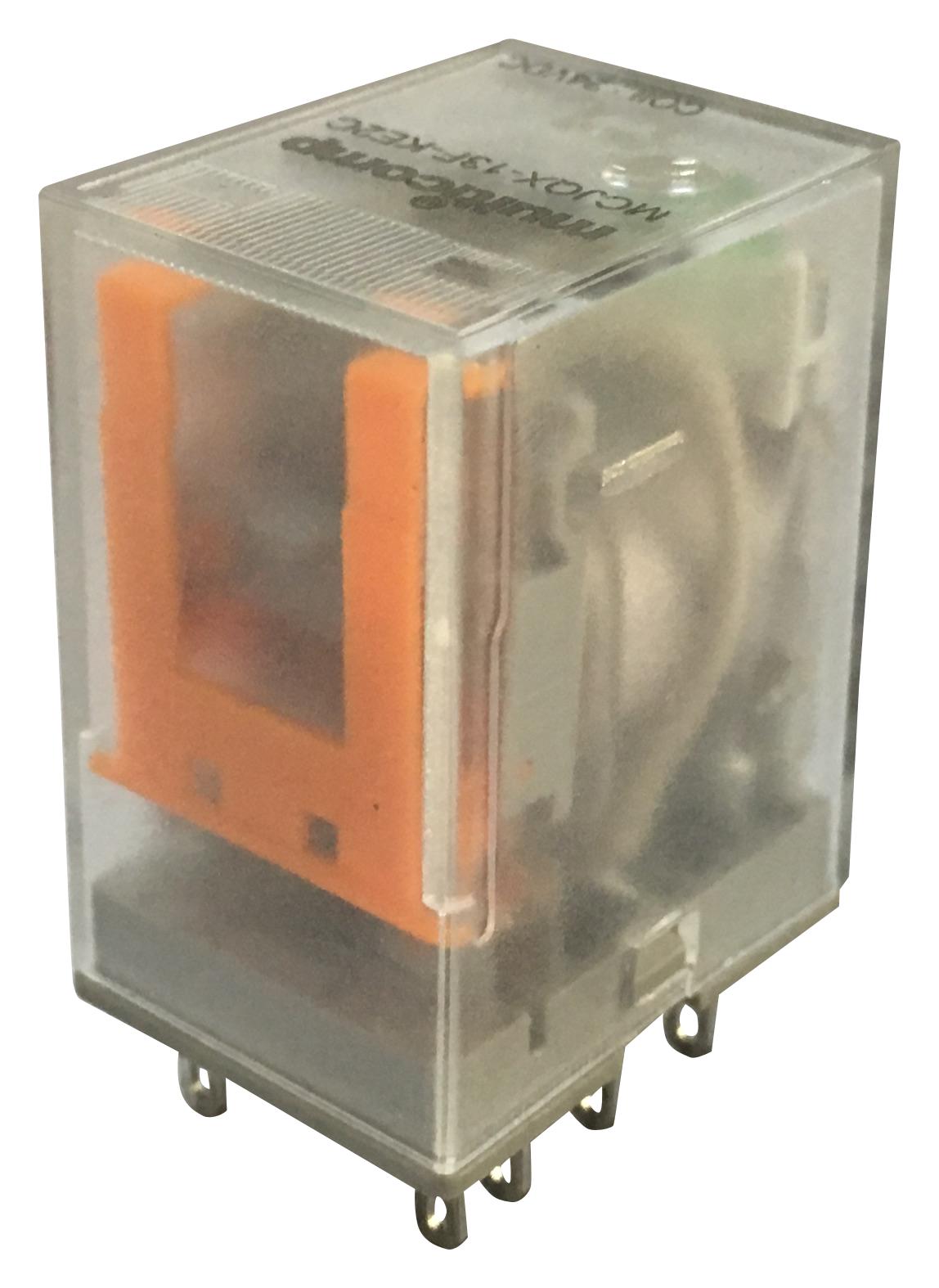

MULTICOMP MCJQX13FKE2C110VAC Power Relay
This power relay with LED features a compact design suitable for various automation and control applications. It offers high switching power, high sensitivity, and reliable contact operation with a contact form of 2 Change 4 Change. Rated for resistive loads up to 5A/250V AC and equipped with LED indicators for operational status. The relay provides electrical life over 10^6 cycles, excellent electrical insulation, and fast operate and release times below 20ms. It is designed for horizontal PCB mounting and operates across a wide temperature range from -55°C to +70°C, making it ideal for industrial use.
MULTICOMP MCJQX13FKE2C110VAC Power Relay Specifications:
- Contact Form: 2 Change 4 Change
- Resistive (AC-1): 5A/250V AC, 30V DC
- Rated Load: 1/2HP, 240V AC; 1/3HP, 240V AC; 1/6HP, 240V AC; 41I3HP, 120V AC
- Contact Operating Power (Resistive): 2500VA, 300W, 1250VA, 150W
- Contact Resistance (Initial): <50mΩ
- Electrical Life: >10^6 Cycles (1800 Ops/h)
- Mechanical Life: 2×10^7 Cycles (18000 Ops/h)
- Operate Voltage (at 25°C): DC <75% Rated, AC <80% Rated
- Release Voltage (at 25°C): DC 210% Rated, AC 230% Rated
- Max Allowed Voltage (at 25°C): 110% Rated Voltage
- Insulation Resistance: 2500MΩ (500V DC)
- Coil Power Dissipation: 0.9W, AC Consumption: 1.2VA
- Operate Time: <20ms, Release Time: <20ms
- Between Contacts: 1000V AC/1 min, Leakage Current 1mA
- Between Contact and Coil: 2000V AC/1 min, Leakage Current 1mA
- Ambient Temperature Range: -55°C to +70°C
- Humidity: 35% RH to 85% RH
- Shock Resistance: 10G, 11ms sine pulses
- Vibration Resistance: 10–55Hz, 1mm amplitude
- Mounting: Plug-in Terminals or PCB Terminal
- Weight: 35g
Buy the Multicomp Series Power Relay with LED: MCJQX13FKE2C110VAC
Purchase the multicomp Power Relay with LED MCJQX13FKE2C110VAC online today to ensure reliable operation in your automation projects. This relay features a 2 Change 4 Change contact configuration, rated for 5A at 250V AC resistive load, making it suitable for controlling motors, lighting, and other electrical loads. Its compact size and quick switching times of less than 20ms make it ideal for space-constrained applications needing rapid response. Order now for high quality, dependable switching, and industrial-grade insulation for seamless integration into your control system.
Get multicomp MCJQX13FKE2C110VAC today—built for high reliability and fast switching in industrial automation.
