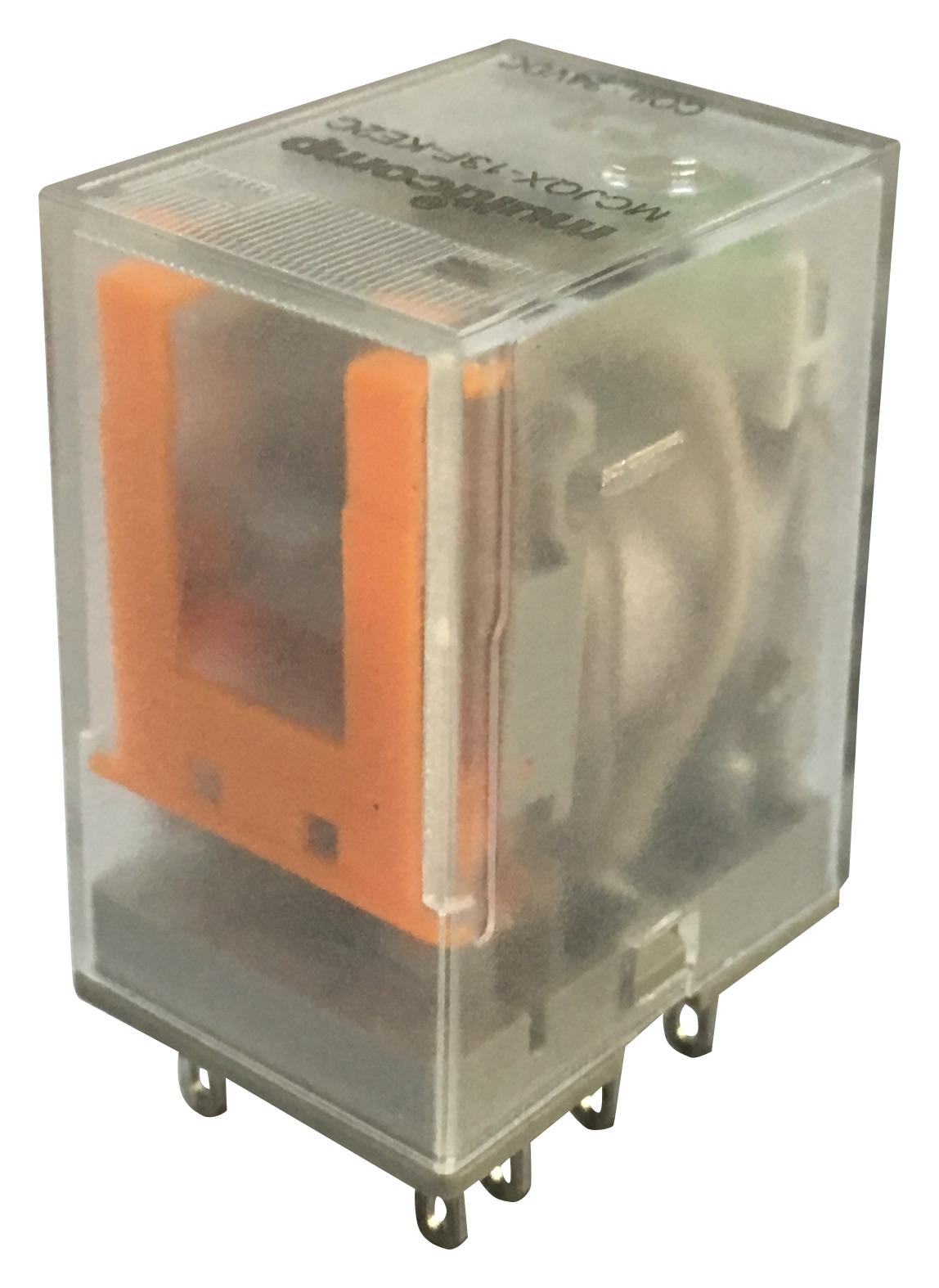

MULTICOMP MCJQX13FKE2C24VAC Power Relay
This power relay with LED by multicomp offers reliable switching capabilities for various industrial applications. It features a compact size, high switching power, two or four change contact forms, and excellent electrical life durability. Suitable for resistive loads up to 5A at 250V AC and motor loads such as 1/2HP at 240V AC, it ensures rapid operation times below 20ms. Its robust insulation resistance, operated at temperatures from -55°C to +70°C, makes it suitable for diverse environments. Designed for plug-in or PCB mounting, it integrates seamlessly into control systems, providing dependable performance with low coil power consumption.
MULTICOMP MCJQX13FKE2C24VAC Power Relay Specifications:
- Contact Form: 2 Change 4 Change
- Resistive Load: 5A/250V AC, 30V DC
- Motor Load: 1/2HP 240V AC, 1/3HP 240V AC, 1/6HP 240V AC, 41I3HP 120V AC
- Contact Operating Power: 2500VA, 300W, 1250VA, 150W
- Initial Contact Resistance: <50mΩ
- Electrical Life: > 10^6 Cycles (1800 Ops/h)
- Mechanical Life: 2×10^7 Cycles (18000 Ops/h)
- Operate Voltage: DC: <75% Rated Voltage, AC: <80% Rated Voltage
- Release Voltage: DC: 210% Rated Voltage, AC: 230% Rated Voltage
- Max. Allowed Voltage: 110% Rated Voltage
- Insulation Resistance: 2500MΩ (500V DC)
- Coil Power De: 0.9W, AC Consumption: 1.2VA
- Operate Time: <20ms, Release Time: <20ms
- Between Contacts Insulation: 1,000V AC/1 min (Leakage Current 1mA)
- Between Contact and Coil Insulation: 2,000V AC/1 min (Leakage Current 1mA)
- Ambient Temperature Range: -55°C to +70°C
- Humidity Range: 35% RH to 85% RH
- Shock Resistance: 10G, sine wave, 11ms
- Vibration Resistance: 10-55Hz, amplitude 1mm
- Installation: Plug-in Terminals/Pcb Terminal
- Weight: 35g
Buy the Multicomp Series Power Relay: MCJQX13FKE2C24VAC
Purchase the multicomp Power Relay with LED today online and experience reliable switching performance for industrial applications. Featuring a compact design, high switching power, fast operation times, and robust insulation resistance, this relay is suitable for resistive and motor loads. Easy to install with plug-in or PCB terminals, it offers durability with an electrical life exceeding one million cycles. Order now to enhance your control systems with this dependable power relay that combines efficiency, speed, and durability in a compact package.
Order your multicomp Series MCJQX13FKE2C24VAC today and ensure reliable control with this high-performance power relay, ideal for industrial automation setups.
