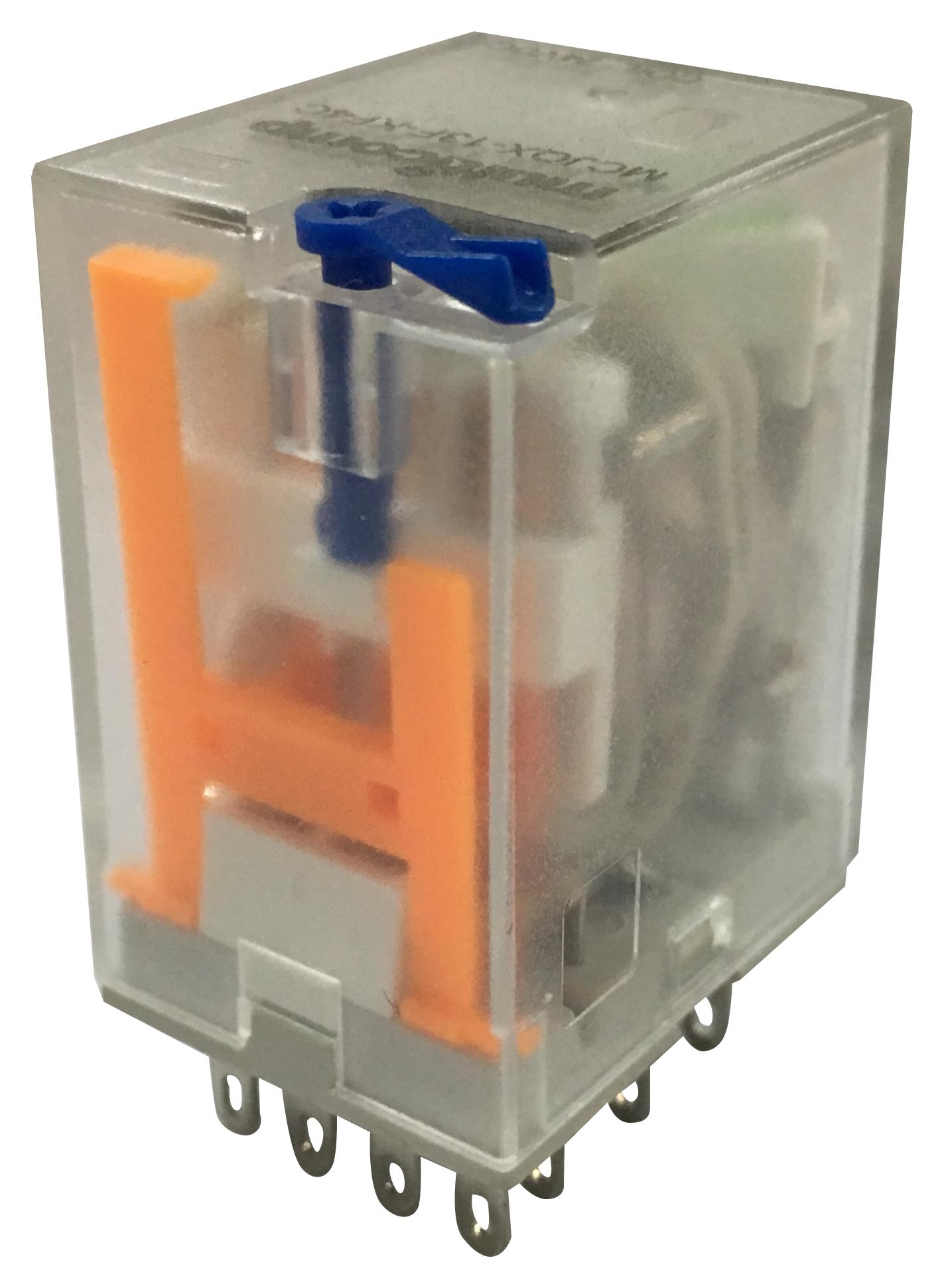

MULTICOMP MCJQX13FKF4C24VDC Power Relay
The power relay features a compact design with high switching capacity and sensitivity. Suitable for controlling motors and resistive loads, it offers a contact form of 2 Change 4 Change and a resistive load of 10A at 250V AC. Operating voltages range from 24V DC to 230V AC, with rapid operate and release times below 20ms. Its insulation resistance exceeds 2500MQ, and it is capable of handling up to 1.8 million mechanical cycles, making it ideal for industrial automation and control applications.
MULTICOMP MCJQX13FKF4C24VDC Power Relay Specifications:
- Contact Form: 2 Change 4 Change
- Resistive Load: 10A/250V AC, 5A/30V DC
- Max Motor Load: 1/3HP at 240V AC
- Contact Resistance: <50mQ
- Electrical Life: > 10^6 Cycles
- Mechanical Life: 2 x 10^7 Cycles
- Operate Voltage: DC:<75% Rated, AC:<80% Rated
- Release Voltage: DC:210% Rated, AC:230% Rated
- Max Allowed Voltage: 110% Rated
- Insulation Resistance: 2500MQ (500V DC)
- Coil Power: 0.9W, AC Consumption: 1.2VA
- Operate Time: <20ms, Release Time: <20ms
- Between Contacts: 1000V AC/1 min (Leakage 1mA)
- Between Contact & Coil: 2000V AC/1 min (Leakage 1mA)
- Ambient Temp: -55°C to +70°C
- Humidity: 35% to 85% RH
- Shock Resistance: 10G, Vibration Resistance: 10-55Hz
- Installation: Plug-in or PCB Terminals
- Weight: 35g
Buy the Multicomp Series Power Relay: MCJQX13FKF4C24VDC
Purchase the multicomp Series Power Relay MCJQX13FKF4C24VDC online today. Designed for high performance, it features fast switching times, high current capacity, and durable construction suitable for industrial automation and control systems. Its compact size and versatile mounting options make it ideal for various electrical applications. Take advantage of our secure online ordering system to get this reliable relay delivered quickly to your doorstep. Enhance your project's reliability with this high-quality control component available now for immediate purchase.
Order your multicomp Series Power Relay MCJQX13FKF4C24VDC today and ensure reliable control for your industrial applications.
Frequently Asked Questions
Where can I buy MULTICOMP MCJQX13FKF4C24VDC?
You can click on the BUY or RFQ button to purchase MCJQX13FKF4C24VDC from an authorized MULTICOMP distributor.
How do I troubleshoot issues or seek technical support for part MCJQX13FKF4C24VDC?
You can download the MCJQX13FKF4C24VDC datasheet or visit the MULTICOMP website for support.
Who is the manufacturer of MCJQX13FKF4C24VDC?
MULTICOMP
