A Premier B2B Part Search

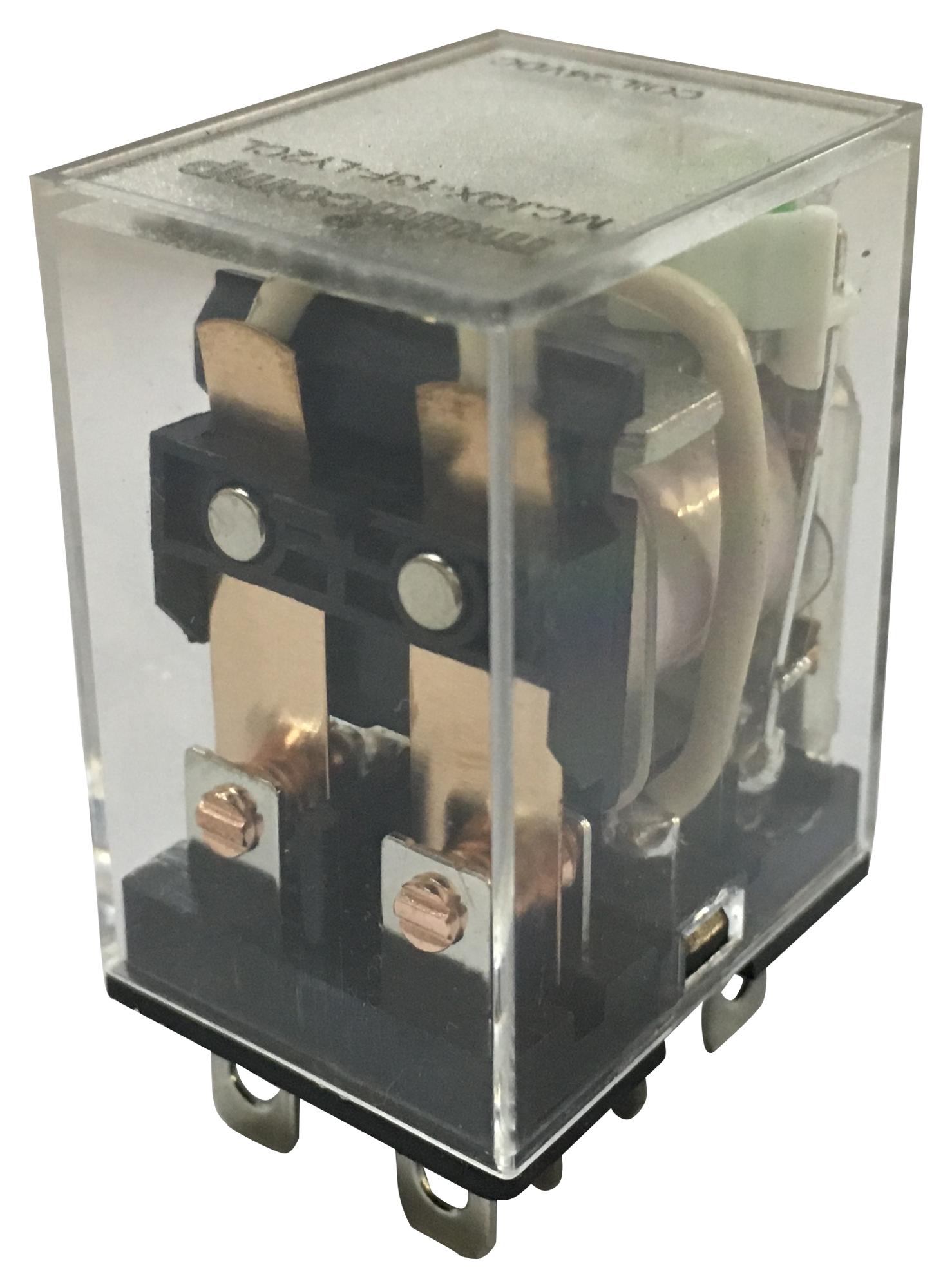

MULTICOMP MCJQX13FLY2CL110VAC Power Relay
This compact power relay with LED provides reliable switching for various electrical loads, featuring high sensitivity and high switching power. Suitable for controlling motors, resistive loads, and electrical circuits with AC or DC voltages, it offers a rated load of 10A at 250V AC and DC resistive loads up to 30V. The relay includes plug-in or PCB terminal options, with fast operate and release times below 20ms. It withstands ambient temperatures from -25°C to +55°C and has excellent insulation resistance, making it ideal for industrial automation and control applications.
MULTICOMP MCJQX13FLY2CL110VAC Power Relay Specifications:
- Contact Form: 2 Change
- Resistive Load: 10A/250V AC, 30V DC
- Motor Load: 120V AC 1/2HP, 240V AC
- Rated Load Power: 2500VA 300W
- Contact Resistance: <650mΩ
- Material: Ag alloy
- Electrical Life: >10^6 cycles
- Mechanical Life: 2×10^7 cycles
- Operate Voltage: DC <75% Rated, AC <80% Rated
- Release Voltage: DC 210%, AC 230% Rated
- Max. Allowed Voltage: 110% Rated
- Insulation Resistance: 2500MΩ at 500V DC
- Coil Power DC: 14W
- Consumption AC: 2VA
- Operate Time: <20ms
- Release Time: <20ms
- Between Contacts: 1000V AC/1 min, Leakage 1mA
- Between Contact and Coil: 2000V AC/1 min
- Ambient Temperature: -25°C to +55°C
- Humidity: 35% RH to 85% RH
- Shock Resistance: 10G
- Vibration Resistance: 10–55Hz, 1mm amplitude
- Installation: Plug-in / PCB terminals
- Weight: 50g
Buy the Multicomp Series Power Relay: MCJQX13F-LY2CL-110VAC
Purchase the multicomp power relay now online for fast, reliable switching and control in automation projects. With high load capacity, quick response times, and robust construction, this relay ensures efficient operation across various applications. Its compact size and dual terminal options simplify installation, while its electrical resilience guarantees durability under demanding conditions. Whether controlling motors or circuit loads, this relay offers excellent insulation resistance and a wide temperature range for versatile use. Elevate your automation setup today with this high-quality relay for seamless control and long-term performance.
Buy multicomp MCJQX13F-LY2CL-110VAC power relay now and experience unmatched reliability and performance in industrial control systems.
Frequently Asked Questions
Where can I buy MULTICOMP MCJQX13FLY2CL110VAC?
You can click on the BUY or RFQ button to purchase MCJQX13FLY2CL110VAC from an authorized MULTICOMP distributor.
How do I troubleshoot issues or seek technical support for part MCJQX13FLY2CL110VAC?
You can download the MCJQX13FLY2CL110VAC datasheet or visit the MULTICOMP website for support.
Who is the manufacturer of MCJQX13FLY2CL110VAC?
MULTICOMP
