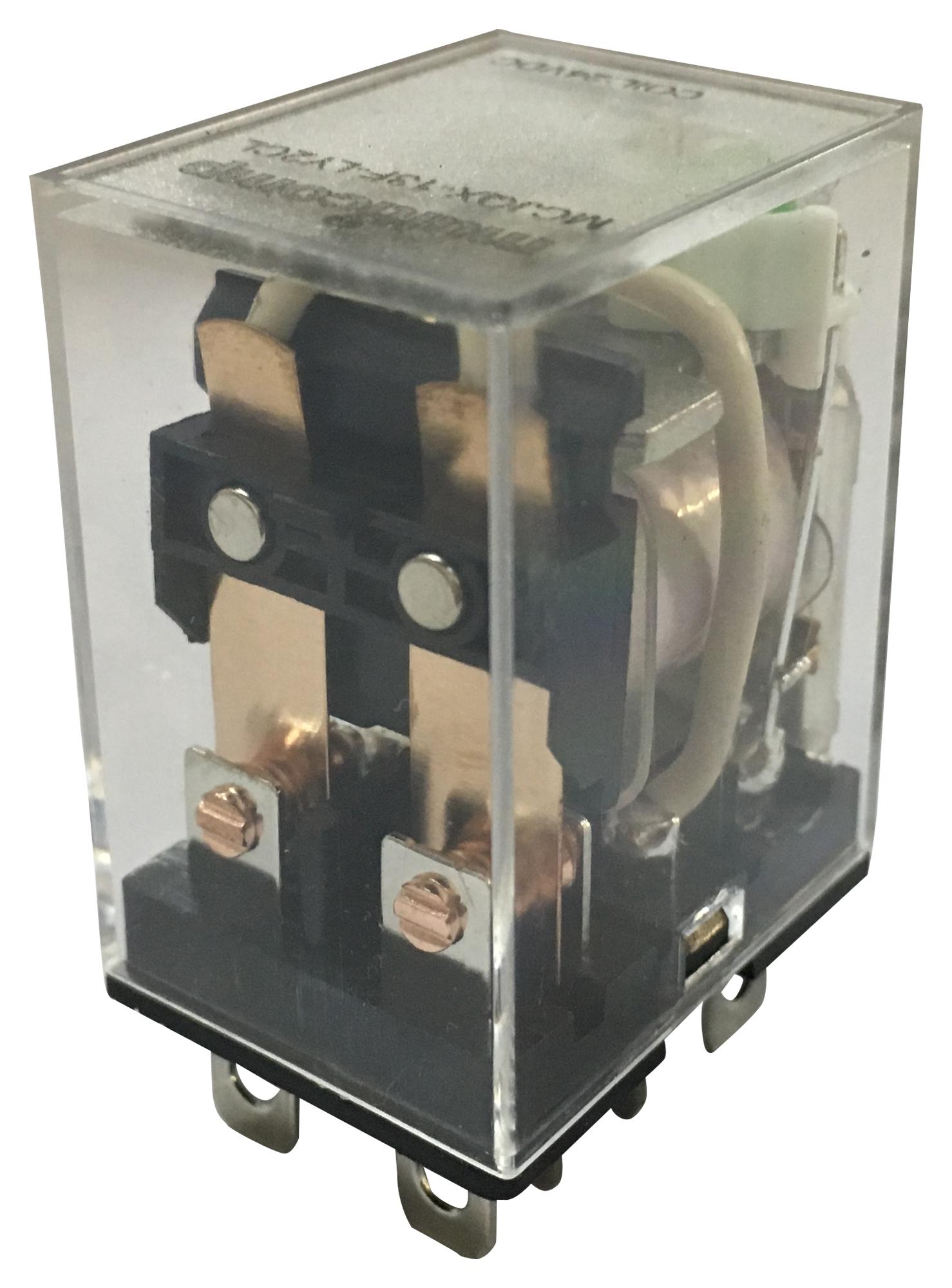

MULTICOMP MCJQX13FLY2CL24VDC Power Relay
The multicomp power relay with LED is a compact, high-sensitivity switching component rated for resistive loads up to 10A at 250V AC or 30V DC. It features a small size, fast operate (<20ms), and release times (<20ms), suitable for automation and control applications. The relay includes a coil power consumption of 14W DC, and operates within -25°C to +55°C temperatures, with robust insulation resistance of 2500MQ. Designed with durable Ag alloy contacts, it supports high electrical and mechanical life cycles, making it ideal for industrial control systems and automation projects.
MULTICOMP MCJQX13FLY2CL24VDC Power Relay Specifications:
- Coil Power DC: 14W
- Consumption AC: 2VA
- Operate Time: <20ms
- Release Time: <20ms
- Rated Load: 10A/250V AC, 30V DC
- Contact Resistance (Initial): <650mΩ
- Electrical Life: > 10^6 Cycles
- Mechanical Life: 2×10^7 Cycles
- Insulation Resistance: 2500MQ (500V DC)
- Max. Allowed Voltage: 110% Rated Voltage
- Operate Voltage (at 25°C): DC:<75%; AC:<80%
- Release Voltage (at 25°C): DC: 210%; AC: 230%
- Between Contacts: 1,000V AC/1 min (Leakage 1mA)
- Between Contact and Coil: 2,000V AC/1 min (Leakage 1mA)
- Ambient Temperature Range: -25°C to +55°C
- Humidity Range: 35% RH to 85% RH
- Shock Resistance: 10G
- Vibration Resistance: 10–55Hz, 1mm amplitude
- Weight: 50g
- Install Model: Plug-in Terminals/PCB Terminal
Buy the Multicomp Series Power Relay LED: MCJQX13F-LY2CL-24VDC
Enhance your automation system with the multicomp Power Relay featuring LED indicator. Designed for reliable high-current switching, this 10A relay at 24VDC ensures fast response times (<20ms) and long cycle life, making it perfect for industrial and control applications. With robust contact materials and high insulation resistance, it provides safe, efficient operation. Order your multicomp Power Relay MCJQX13F-LY2CL-24VDC now online for seamless integration into your projects, ensuring dependable performance and durability for demanding automation environments.
Order your multicomp Series Power Relay with LED MCJQX13F-LY2CL-24VDC today and ensure reliable switching performance for your industrial automation needs.
Frequently Asked Questions
Where can I buy MULTICOMP MCJQX13FLY2CL24VDC?
You can click on the BUY or RFQ button to purchase MCJQX13FLY2CL24VDC from an authorized MULTICOMP distributor.
How do I troubleshoot issues or seek technical support for part MCJQX13FLY2CL24VDC?
You can download the MCJQX13FLY2CL24VDC datasheet or visit the MULTICOMP website for support.
Who is the manufacturer of MCJQX13FLY2CL24VDC?
MULTICOMP
