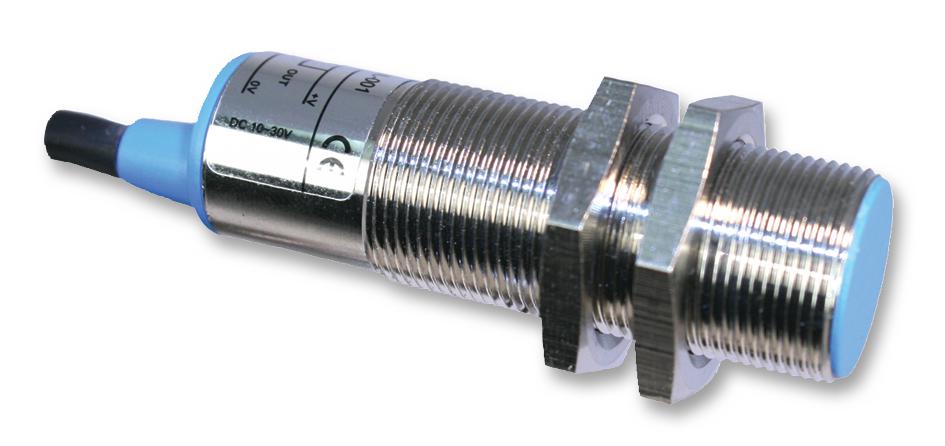

MULTICOMP MCPINT18L011 Inductive Proximity Sensor
This inductive proximity sensor features a shielded design with an 18mm diameter, suitable for detecting ferrous metals at distances up to 4mm. It boasts IP67 water resistance, over-current protection, and reliable operation in temperatures from -20°C to +70°C. The sensor operates on 10-30V DC power, with NPN and PNP configurations available, making it ideal for machinery, counting, RPM measurement, and industrial automation applications. Its compact cylindrical shape includes LED indicators for easy operation status verification.
MULTICOMP MCPINT18L011 Inductive Proximity Sensor Specifications:
- Style: Cylindrical shape
- Diameter: 18mm
- Sensing Distance: 0 to 4mm, shielded
- Mounting Distance: 5mm
- Standard Sensing Object: ferrous metals
- Protection Rate: IP67, water resistant
- Frequency: 00Hz/400Hz (DC 3/2 wires)
- Current Output: 200mA (DC/AC)
- Power Supply: 10 to 30V DC
- Ambient Temperature: -20°C to +70°C
- Polarity Reversal Protection: Yes
- Electrical Connection: NPN and PNP options, straight plug-in connectors available
- Material: Brass chrome-plated, oil, water, acid, alkaline proof
Buy the Inductive Sensor Series M18: Detects ferrous metals up to 4mm with IP67 protection
Purchase the Premier Farnell inductive proximity sensor MCPINT18L011 online today and enjoy fast delivery and superior performance. Designed for detecting ferrous metals within 4mm, this shielded sensor offers IP67 water resistance, making it suitable for harsh industrial environments. Its robust construction includes over-current protection and versatile electrical connections with NPN and PNP configurations. Perfect for automation, counting, and RPM measurement, this reliable sensor ensures efficient operation—order now to optimize your machinery and industrial processes with confidence.
Buy Premier Farnell inductive sensor MCPINT18L011 now and experience unmatched reliability and precision in industrial automation applications.
