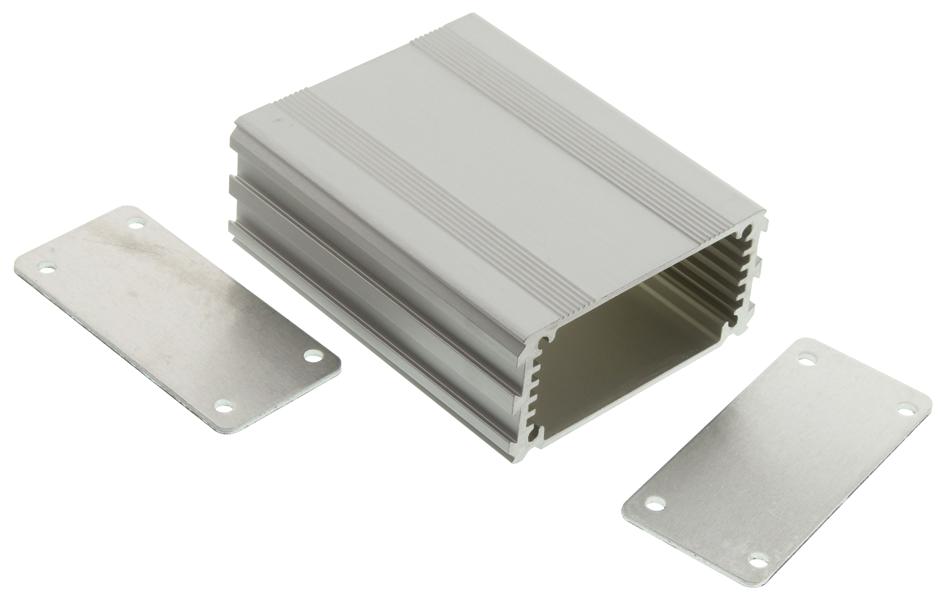

MULTICOMP MCREAS80 Aluminium Enclosure
The MCREAS80 is an extruded aluminium heat sink enclosure designed to house circuit boards. It features a silver anodized finish with an extruded box section, making it suitable for small electronic circuits and RF amplifiers. The enclosure includes aesthetic grooves and a shallow recess for labeling. Dovetail slots along the sides accommodate Linc-Lug mounting brackets for surface mounting. Optional gaskets are available for waterproofing. Manufactured by Multicomp, it is rated highly with positive customer feedback and comes with a 12-month limited warranty. Ideal for industrial applications.
MULTICOMP MCREAS80 Aluminium Enclosure Specifications:
- Material: Aluminium 6063 T6 (HE9)
- Finish: Silver anodized 54μm thick, can be painted directly
- Dimensions: 80 x 63.5 x 30 mm
- Length Tolerance: Nominal length - 0 mm / +1 mm
- Perimeter: 217 mm (inside), 220 mm (outside)
- Screw ports: Nominal diameter 2.7mm for No.4 self-tapping screws
- Optional threading: M3 using thread-rolling tap or M3 thread-forming screw
- Weight: 21 Kg/m
- Dovetail slots for mounting brackets
- Grooved surface with labeling recess
- Waterproof gasket option available
- Manufactured for small electronic and RF circuit applications
Buy the Buy Multicomp Aluminium Enclosure Part Number MCREAS80 Online
Discover the reliable and durable Multicomp aluminium enclosure, ideal for housing small electronic and RF circuits. Featuring a sleek anodized finish, dovetail slots for easy mounting, and optional waterproof gaskets, this enclosure offers excellent protection for your sensitive components. Its compact dimensions and labeling recess enhance usability in industrial or hobbyist projects. Purchase the MCREAS80 online today and enjoy quick delivery, premium build quality, and compatibility with various mounting brackets—making it your top choice for professional electronic enclosures.
Get Multicomp MCREAS80 aluminium enclosure today—perfect for small circuits, RF amplifiers, and industrial applications with waterproofing options.
