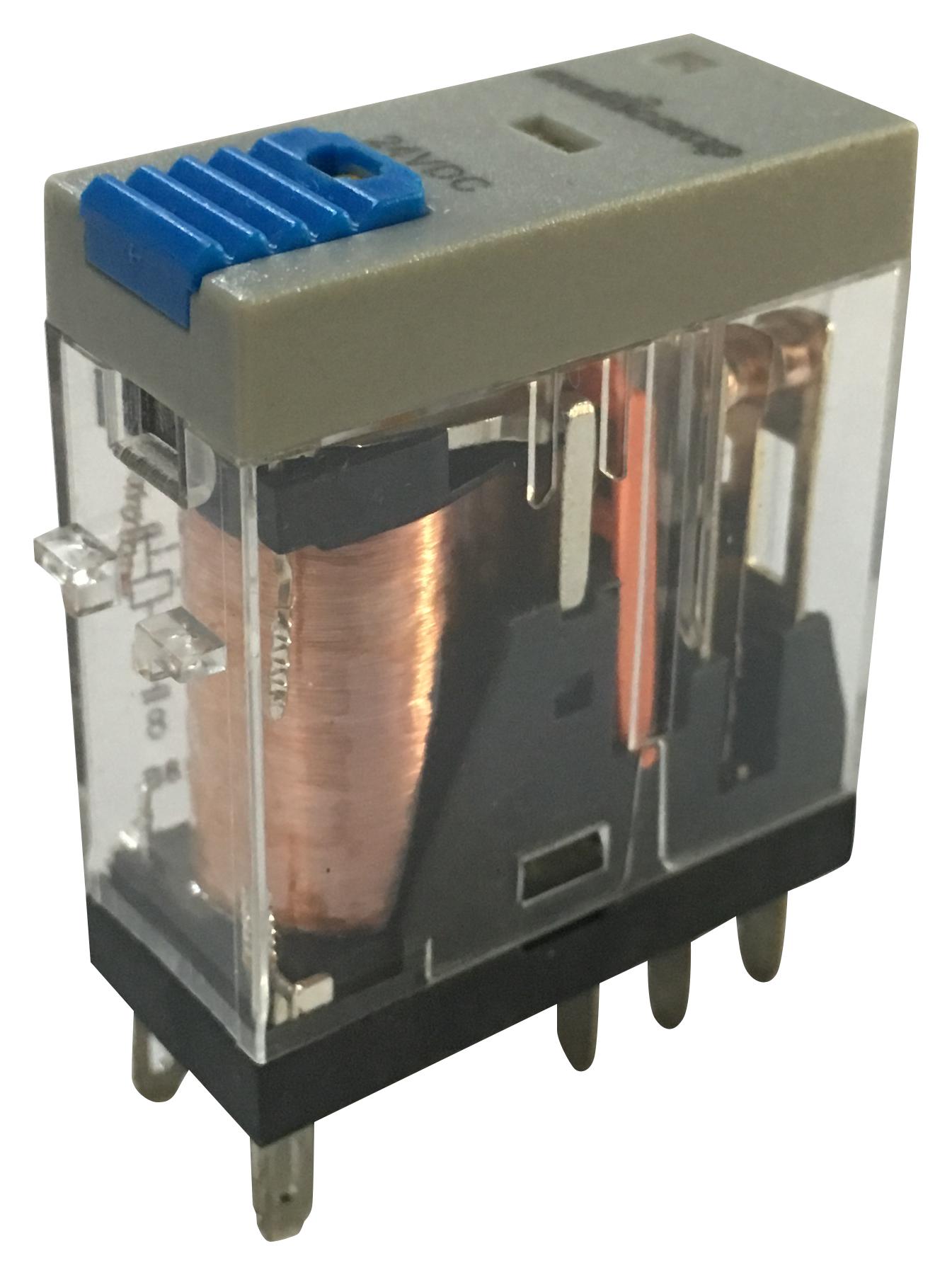

MULTICOMP MCRFT2CO524LT Interface Relay
The multicomp interface relay with lock test button offers a compact and reliable switching solution suitable for control circuits. It features 1 pole 12A and 2 pole 8A contacts, with integrated LED indicators for polarity, and a lockable test button for inspection. Its resistive load capacity is 12A/250V AC, 30V DC, with a coil voltage of 24V AC/DC. The relay provides durable electrical and mechanical life, high insulation resistance, and excellent dielectric strength, making it ideal for industrial automation and control applications. Its compact plug-in design simplifies installation and maintenance.
MULTICOMP MCRFT2CO524LT Interface Relay Specifications:
- Rated current resistive load: 12A at 250V AC, 30V DC; 8A at 250V AC, 30V DC
- Rated voltage: 24V DC/AC, 115V AC, 230V AC (varies by model)
- Contact switching capacity: 3000VA, 360W at 250V AC; 2000VA, 240W at 250V AC
- Electrical life: > 10^6 cycles at 1800 operations per hour
- Insulation resistance: 21000MΩ at 500V DC
- Dielectric strength: 3,000V AC between poles, 5,000V AC between contact and coil
- Coil resistance: 1100Ω at 24V DC, 615Ω at 115V AC, 23000Ω at 230V AC
- Operate time: <20ms, release time: <10ms
- Ambient temperature range: -40°C to +55°C, humidity: 5% to 85% RH
- Mounting: Plug-in, weight approximately 20g
Buy the Multicomp Series Interface Relay: MCRFT2CO524LT
Purchase the multicomp Series Interface Relay with lock test button online today to ensure reliable control and switching in your automation and industrial circuits. Designed for ease of installation with compact size and integrated LED indicators, this relay offers a resistive load capacity of 12A and a coil voltage of 24V AC/DC. Its durable construction provides high insulation resistance and excellent dielectric strength, making it ideal for demanding control panel applications. Secure your supply of this versatile relay now and optimize your system performance with quick online ordering.
Order your multicomp Series Interface Relay with lock test button today and enhance your automation projects with dependable switching performance.
