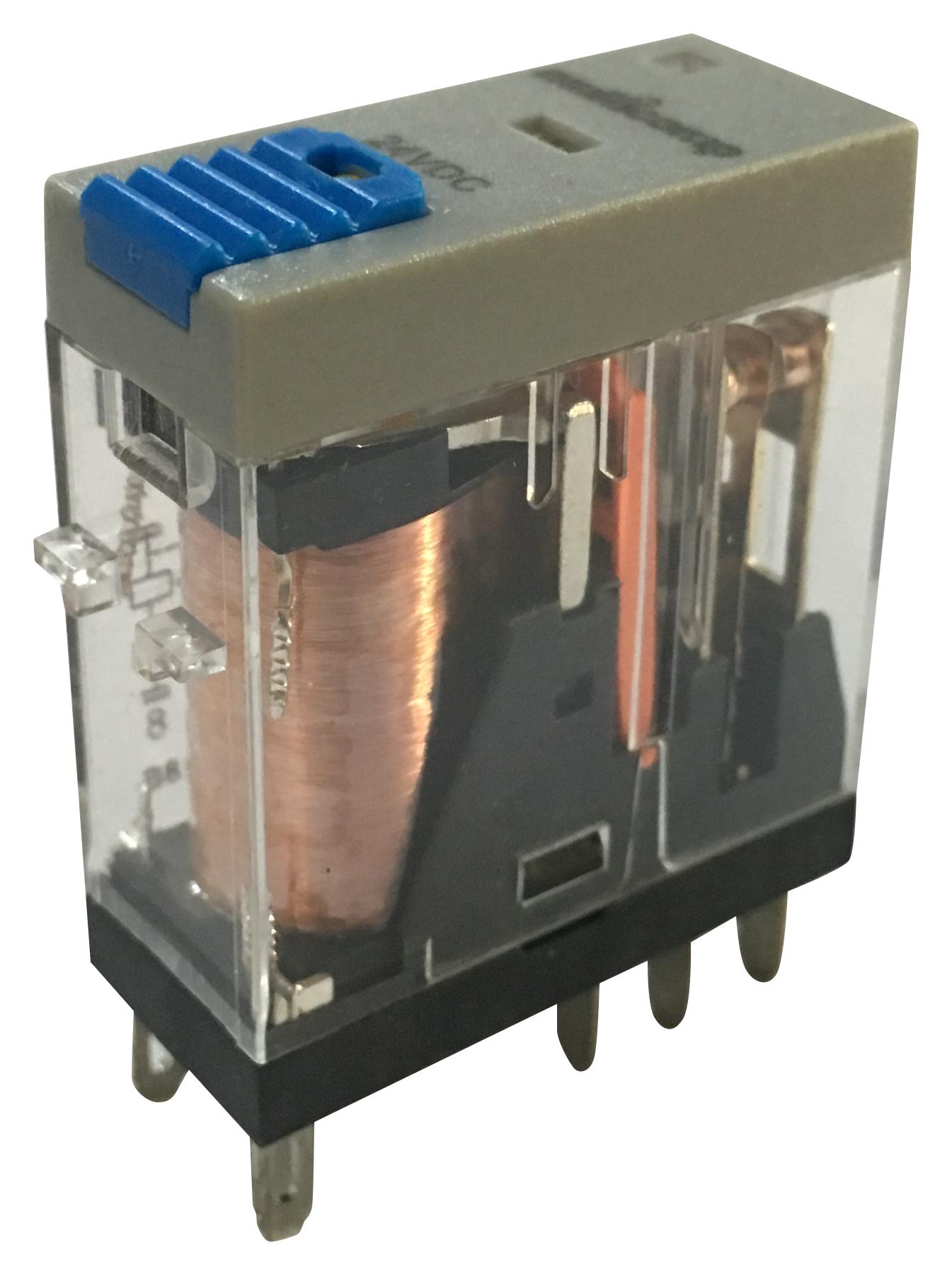

MULTICOMP MCRFT2CO730LT Industrial Interface Relay
The multilayer interface relay with lock test button offers reliable switching for industrial automation. Designed with a slim, compact structure, it features 1-pole and 2-pole configurations, rated at 12A and 8A respectively. Equipped with integrated non-polarity LEDs, lockable test buttons, and inspection windows, it simplifies troubleshooting and testing. The relay supports resistive loads up to 3000VA and 360W, with fast operate (<20ms) and release times (<10ms). It adheres to RoHS standards and withstands harsh environments, making it suitable for control circuits and industrial systems.
MULTICOMP MCRFT2CO730LT Industrial Interface Relay Specifications:
- Rated current: 12A (resistive load), 8A (motor load)
- Rated voltage: 250V AC/DC (resistive), 240VAC (motor)
- Contact capacity: 3000VA/360W (resistive), 2000VA/240W (inductive)
- Initial contact resistance: <50mΩ
- Material: Silver alloy
- Electrical life: > 10^6 cycles
- Mechanical life: > 10^7 cycles
- Operate time: <20ms at nominal voltage
- Release time: <10ms at nominal voltage
- Insulation resistance: 21000MΩ at 500V DC
- Coil resistance (DC): approx. 240Ω (24V DC), varies with voltage
- Coil power: approx. 0.53W (DC), approx. 1VA (AC)
- Max. voltage: 110% of rated voltage
- Ambient temperature: -40°C to +55°C
- Vibration resistance: 10–55Hz, 1mm amplitude
- Shock resistance: 10G
- Mounting: Plug-in
- Weight: Approx. 20g
Buy the multicomp MCRFT2CO730LT – Reliable Industrial Interface Relay for Control Systems
Order the multicomp MCRFT2CO730LT online today to enhance your control panel with a reliable, compact relay featuring lock test buttons and LED indicators. Designed for industrial environments, this relay supports high load switching up to 8A/12A with quick response times, ensuring efficient operation and simplified maintenance. Its sturdy construction and RoHS compliance make it ideal for demanding applications. Secure your industrial automation setup with this high-quality relay, available for immediate purchase online with fast delivery and excellent support.
Buy multicomp MCRFT2CO730LT now and experience unmatched reliability and performance in industrial automation and control circuits.
Frequently Asked Questions
Where can I buy MULTICOMP MCRFT2CO730LT?
You can click on the BUY or RFQ button to purchase MCRFT2CO730LT from an authorized MULTICOMP distributor.
How do I troubleshoot issues or seek technical support for part MCRFT2CO730LT?
You can download the MCRFT2CO730LT datasheet or visit the MULTICOMP website for support.
Who is the manufacturer of MCRFT2CO730LT?
MULTICOMP
