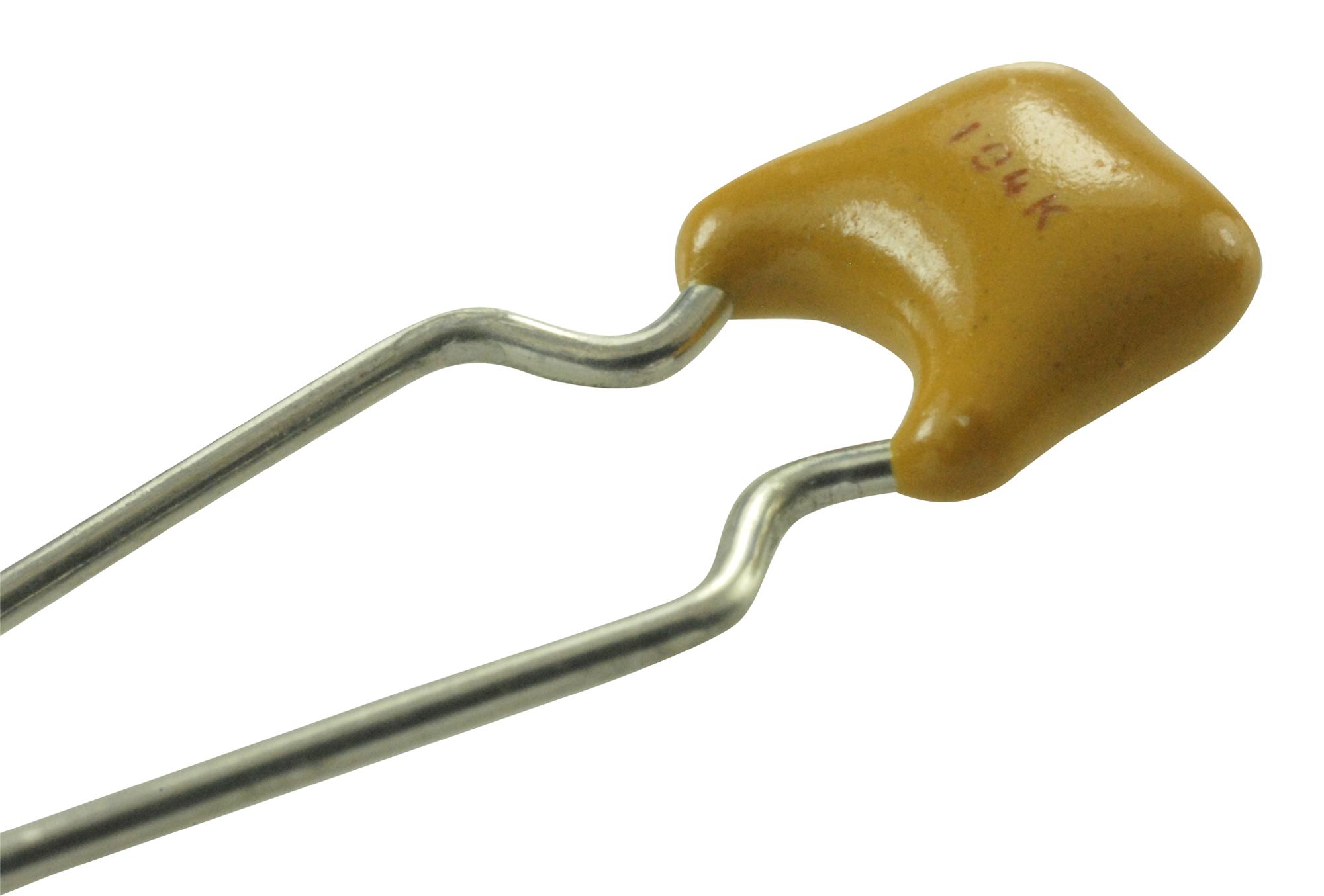

MULTICOMP MCRR50104X7RK0050 Multilayer Ceramic Capacitor
The Multicomp MCRR series capacitors are cost-effective, radial leaded multilayer ceramic capacitors (MLCC) utilizing X7R dielectric material. They feature high-density conduction electrodes and ceramic dielectric for efficient performance. Suitable for applications requiring stable capacitance with moderate temperature variation, these capacitors are ideal for general-purpose filtering and decoupling. They offer high reliability and performance, with capacitance values ranging from 1000pF to 1µF, and rated voltages of 50VDC, 63VDC, and 100VDC. Available with tolerance levels of ±5%, ±10%, and ±20%, they are rated for long-term use.
MULTICOMP MCRR50104X7RK0050 Multilayer Ceramic Capacitor Specifications:
- Capacitance range: 1000 pF to 1,000,000 pF (1µF)
- Voltage ratings: 50VDC, 63VDC, 100VDC
- Dielectric: X7R
- Size: Height 3.81 mm to 7.62 mm, Width 3.81 mm to 5.08 mm, Depth 2.54 mm to 3.18 mm
- Lead Spacing: 2.54 mm to 5.08 mm
- Lead Diameter: 0.508 mm
- Capacitance Tolerance: ±5%, ±10%, ±20%
- Temperature Coefficient: X7R (moderate temperature variation)
- Application: Filtering, decoupling, general-purpose electronics
- Material: Epoxy case, solderable leads
- Dimensions and ratings conform to industry standards
Buy the Multicomp Series MCRR Ceramic Capacitor: MCRR50104X7RK0050
Enhance your electronic projects with the high-reliability Multicomp multilayer ceramic capacitors. Featuring X7R dielectric, rated at 50V, 63V, and 100V, these capacitors are perfect for filtering and decoupling applications. Their compact size, tolerances of ±5%, ±10%, and ±20%, and stable performance make them ideal for both industrial and consumer electronics. Easy to solder and conforming to industry standards, they ensure long-term durability and consistent performance in demanding environments. Purchase online today for quality and reliability.
Get Multicomp MCRR50104X7RK0050 today—built for precision and long-lasting durability with reliable performance for your electronic filtering needs.
Frequently Asked Questions
Where can I buy MULTICOMP MCRR50104X7RK0050?
You can click on the BUY or RFQ button to purchase MCRR50104X7RK0050 from an authorized MULTICOMP distributor.
How do I troubleshoot issues or seek technical support for part MCRR50104X7RK0050?
You can download the MCRR50104X7RK0050 datasheet or visit the MULTICOMP website for support.
Who is the manufacturer of MCRR50104X7RK0050?
MULTICOMP
