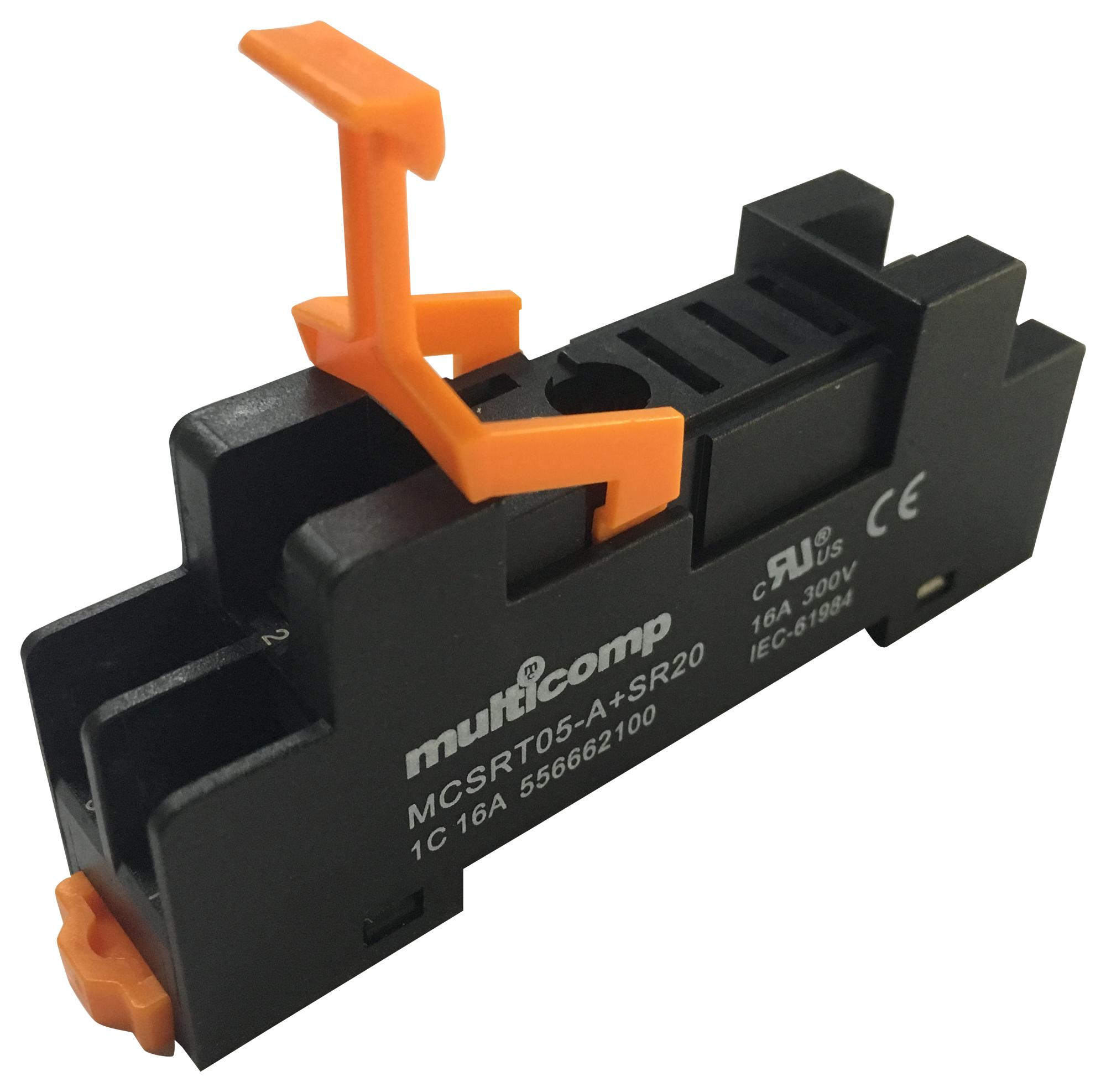

MULTICOMP MCSRT05ASR20 Relay Socket
The relay socket is designed for 1C 5-pin relays, supporting a current of 16A and a voltage of 300V. It features robust dielectric resistance of 4,000V between coil and contact, and 2,500V between contacts, ensuring safety and durability. Made with quality materials, it includes a plastic clip for secure installation and has dimensions up to 29.2 mm. Compatible with 20~14/0.5~2.5 AWG wires and rated for ambient temperatures from -45°C to +85°C, ideal for industrial control panel applications.
MULTICOMP MCSRT05ASR20 Relay Socket Specifications:
- Current: 16A
- Nominal Load Voltage: 300V
- Dielectric Between Coil and Contact: 4,000V/S
- Strength Between Contacts: 2,500V/S
- Screw Torque: 1Nm
- External Connection Wire: 20~14/0.5~2.5 AWG/mm²
- Ambient Temperature: -45°C to +85°C
- Weight: 22g
- Relay Accessories: Plastic clip
- Dimensions: Max 29.2 mm
- Part Number: MCSRTO5-A, SR20
Buy the Multicomp MCSRTO5-A – Reliable Relay Socket for Industrial Applications
Order the Multicomp relay socket online today for robust performance and reliable connections in your industrial automation projects. Designed for 1C 5-pin relays, it supports 16A current and 300V with high dielectric strength for safe operation. The socket features a sturdy plastic clip for secure mounting, compatible with 20~14/0.5~2.5 AWG wires, and operates efficiently within -45°C to +85°C environments. Ensure your control panels are equipped with durable, easy-to-install relay sockets—buy online now for fast delivery and quality assurance.
Get Multicomp MCSRTO5-A today—built for secure connections and long-lasting durability in industrial environments.
Frequently Asked Questions
Where can I buy MULTICOMP MCSRT05ASR20?
You can click on the BUY or RFQ button to purchase MCSRT05ASR20 from an authorized MULTICOMP distributor.
How do I troubleshoot issues or seek technical support for part MCSRT05ASR20?
You can download the MCSRT05ASR20 datasheet or visit the MULTICOMP website for support.
Who is the manufacturer of MCSRT05ASR20?
MULTICOMP
