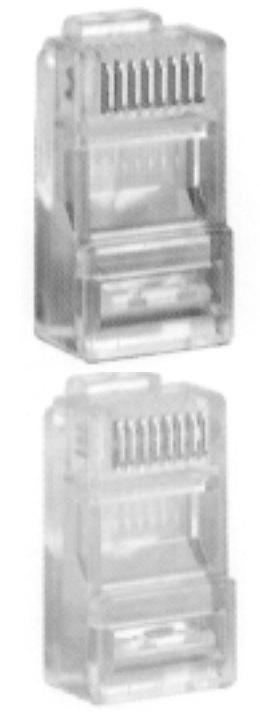

MULTICOMP MTPR88UEMI RJ45 Modular Plug
This RJ45 modular plug is designed for network and telecommunication applications, offering high durability and reliable connections. Made with a clear polycarbonate insulator and phosphor bronze contacts plated with 15 micro-inches of gold over nickel, it ensures excellent signal integrity and corrosion resistance. The plug supports up to 150V AC, 1.5A maximum current, and features insulation resistance of at least 500 MΩ. Operating effectively from -65°C to +125°C, it is lead-free and RoHS compliant, suitable for a wide range of industrial networking environments.
MULTICOMP MTPR88UEMI RJ45 Modular Plug Specifications:
- Material: Insulator Polycarbonate, Contacts Phosphor Bronze
- Plating: 15u" Gold over Nickel on contact area
- Operating Voltage: 150V AC Max.
- Current Rating: 1.5A Max.
- Insulation Resistance: 500 MΩ Min.
- Dielectric Withstanding Voltage: 1,000V AC for 1 minute
- Operating Temperature: -65°C to +125°C
- Environmental: Lead-free, RoHS compliant
- Dimensions: According to standard modular plug size, approximately 14.0 mm x 19.0 mm x 8.0 mm
- Compliance: RoHS, Certified for industrial use
Buy the CATS 88U-EMI – Reliable RJ45 Modular Plug for Industrial Applications
Order the CATS 88U-EMI modular Ethernet plug online today and enjoy fast delivery and secure checkout. Designed for industrial networking, it features gold-plated contacts for corrosion resistance and optimal signal transmission. This plug operates across a wide temperature range, from -65°C to +125°C, making it ideal for demanding environments. With RoHS compliance and lead-free construction, it ensures safety and environmental standards. Perfect for home, office, or industrial network setups, this plug guarantees a reliable and long-lasting connection you can trust for flexible communication solutions.
Get CATS 88U-EMI today—built for reliable data transmission in industrial environments with high durability and precise connections.
Frequently Asked Questions
Where can I buy MULTICOMP MTPR88UEMI?
You can click on the BUY or RFQ button to purchase MTPR88UEMI from an authorized MULTICOMP distributor.
How do I troubleshoot issues or seek technical support for part MTPR88UEMI?
You can download the MTPR88UEMI datasheet or visit the MULTICOMP website for support.
Who is the manufacturer of MTPR88UEMI?
MULTICOMP
