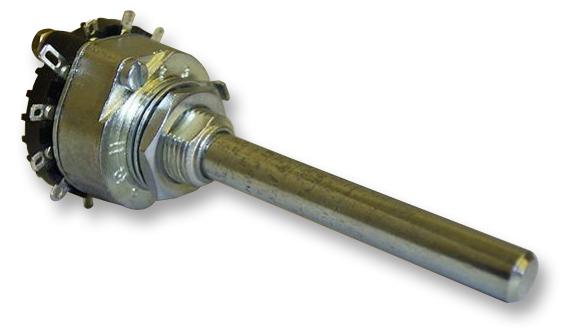

MULTICOMP RA01B06BSFMSOX Rotary Switch
The RA series Rotary Switch features multiple indexing options of 45°, 60°, or 90°, with a standard 30° indexing angle and self-stacking wafers. It offers gold-flashed or gold-plated contacts, insulated drive shafts, and spindles with special flats, slots, or knurls for secure operation. The switch has a 25.4mm diameter with options for solder or printed circuit board connections. It includes both shorting (MBB) and non-shorting (BBM) contact types, as well as adjustable stops to limit positions. Available with various pitch circle diameters for PC terminals, the housing is made of bright zinc-plated zinc alloy, and wafers are constructed from polyphenylene sulphide (PPS). Suitable for industrial applications, this versatile switch is rated for reliable performance.
MULTICOMP RA01B06BSFMSOX Rotary Switch Specifications:
- Switch Rating: 150 mA at 250 V ac/ de, 350 mA at 110 V ac/ de, 1A at 12V ac/dc
- Life: >10,000 cycles
- Operating Temperature: 2–30°C to +85°C
- Proof Voltage: 1,000 V ac (initial)
- Insulation Resistance: >999 MQ at 500 V de (initial)
- Contact Resistance: >20 mQ (initial)
- Dimensions: Diameter 25.4 mm, Spindle Length 50 mm, Thread M10 x 0.75, Flat Length 5 mm
- Housing Material: Polyphenylene sulphide (PPS)
- Contact Material: Brass CZ108 Ag Plated
- Terminal Material: Zinc alloy bright zinc plated
- Spindle: Mild steel Zn plated and passivated
Buy the Multicomp Series Rotary Switch: RA01B06BSFMSOX
Order the multicomp Rotary Switch RA01B06BSFMSOX online today for reliable industrial performance. This versatile switch features multiple indexing options of 45°, 60°, or 90°, with a standard 30° angle and self-stacking wafers. It offers gold-flashed or gold-plated contacts, insulated drive shafts, and accessible mounting for PCB applications. With both shorting and non-shorting contact types, adjustable stops, and a robust zinc alloy housing, this switch is designed to withstand demanding environments for extended operational life, ensuring precision control in automation and industrial systems.
Get multicomp RA01B06BSFMSOX today—built for precision and long-lasting durability.
