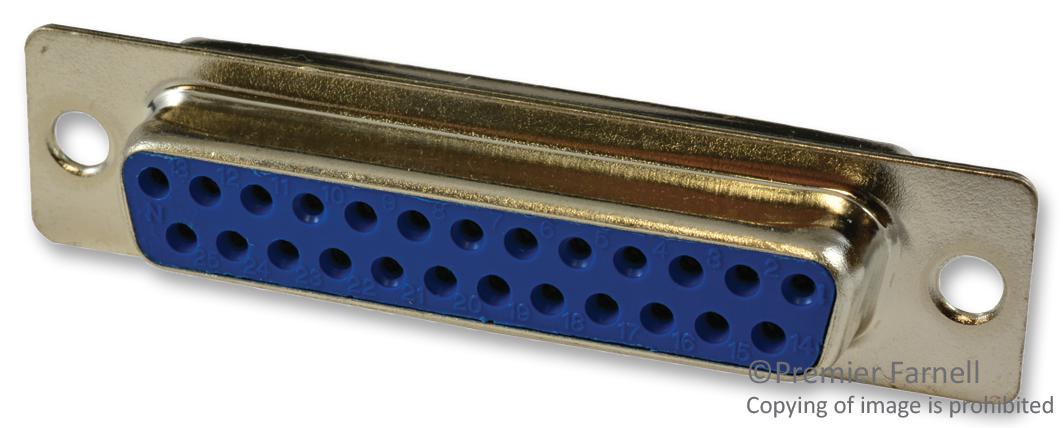

MULTICOMP SPC15276 D-Sub Socket
The SPC15276 is a 25-way D-sub socket designed for reliable electronic connections in communications and networking. It features stamped brass contacts with gold plating for excellent conductivity and corrosion resistance. The blue PBT housing reinforced with 30% glass fiber ensures durability and UL94V-0 flame retardancy standards. Rated at 5A current, it offers a maximum contact resistance of 15 milliohms and an insulation resistance of at least 1000 megaohms. It operates within -50°C to +100°C, making it suitable for various high-performance applications requiring robust performance.
MULTICOMP SPC15276 D-Sub Socket Specifications:
- Shell Material: Steel, Zinc Yellow—Chromated
- Insulator Material: PBT with 30% fiberglass (UL94V-0, blue)
- Contact Material: Brass, stamped, gold-plated on contact area, tin-plated on solder cup
- Current Rating: 5 Amps
- Contact Resistance: 15 milliohms MAX.
- Insulator Resistance: 1000 Megohms MIN.
- Voltage Rating: 500 VAC for 1 Minute
- Operating Temperature Range: -50°C to +100°C
- Dimensions: Length varies with mounting, typical size 41.00 mm × 25.04 mm
- Certification: UL94V-0 flame retardant, RoHS compliant
Buy the SPC Technology Series 25-Way D-Sub Socket: SPC15276
Order the SPC15276 D-Sub socket online today for secure, reliable electronic connections suitable for communication, computing, and industrial applications. Featuring gold-plated brass contacts, a reinforced PBT housing, and rated for 5A, this connector ensures durability and optimal electrical performance. Its flame-retardant design and wide operating temperature range of -50°C to +100°C make it ideal for demanding environments. Purchase online now to benefit from fast shipping, warranty coverage, and trusted quality from leading electronic component suppliers ensuring your project’s success.
Buy SPC Technology SPC15276 now and experience unmatched reliability and performance in high-quality electronic connections.
Frequently Asked Questions
Where can I buy MULTICOMP SPC15276?
You can click on the BUY or RFQ button to purchase SPC15276 from an authorized MULTICOMP distributor.
How do I troubleshoot issues or seek technical support for part SPC15276?
You can download the SPC15276 datasheet or visit the MULTICOMP website for support.
Who is the manufacturer of SPC15276?
MULTICOMP
