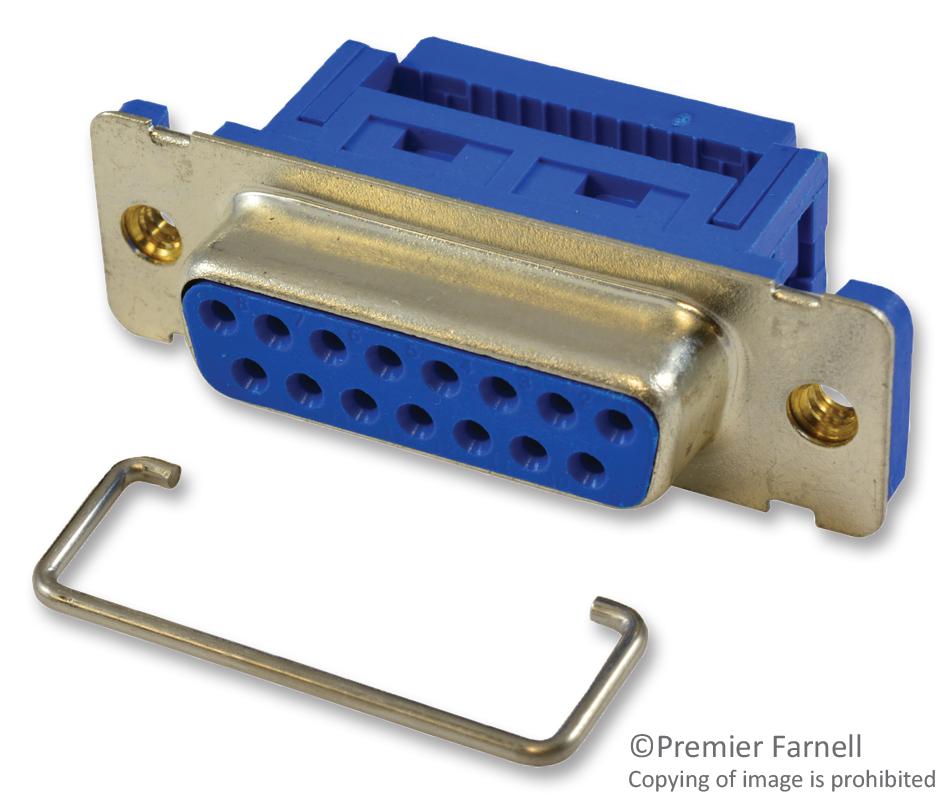

MULTICOMP SPC15296 D-Sub Connector
The SPC15296 is a 15-way D-sub receptacle connector featuring stamped and gold-plated brass contacts. It has a blue PBT housing reinforced with 30% glass fiber, conforming to UL94V-0 standards. This female connector supports wire gauges ranging from 26 to 28 AWG. Rated for 1A current, it offers a contact resistance of 15 milliohms and an insulation resistance of 1000 megaohms. Operating from -55°C to +105°C, ideal for communication, networking, and wiring applications with reliable performance and durable construction.
MULTICOMP SPC15296 D-Sub Connector Specifications:
- Housing: PBT, blue, UL94V-0, reinforced with 30% glass fiber
- Contacts: Brass, stamped, gold-plated on contact area, tin-plated on wiring area
- Current Rating: 1 Amp
- Contact Resistance: 15 milliohm max.
- Insulation Resistance: 1000 MegaOhm at 500V DC
- Operating Temperature Range: -55°C to +105°C
- Supported Wire Size: AWG 26 and 28 stranded wires, 1.27mm conductor center
- Dielectric Withstanding Voltage: AC 500V min for one minute
- Material: Steel shell, tin-plated
- Certification: RoHS compliant
- Suitable for professional communication, data, and instrumentation wiring
- Designed for reliable, high-performance electrical connections
Buy the SPC Electronics SPC15296 – Reliable D-Sub Connector for Industrial Applications
Explore the SPC Electronics SPC15296 D-Sub Female Connector—designed for high reliability in communication, networking, and industrial wiring. With a robust blue PBT housing reinforced with glass fiber, gold-plated brass contacts, and rated for 1A current, this connector ensures optimal performance across temperatures from -55°C to +105°C. Its support for AWG 26-28 wires makes it versatile for professional wiring jobs. Purchase online today to equip your systems with high-quality, durable, and dependable connectors for seamless electrical connections and superior performance in demanding environments.
Get SPC Electronics SPC15296 today—built for precision and long-lasting durability in wiring and communication systems.
