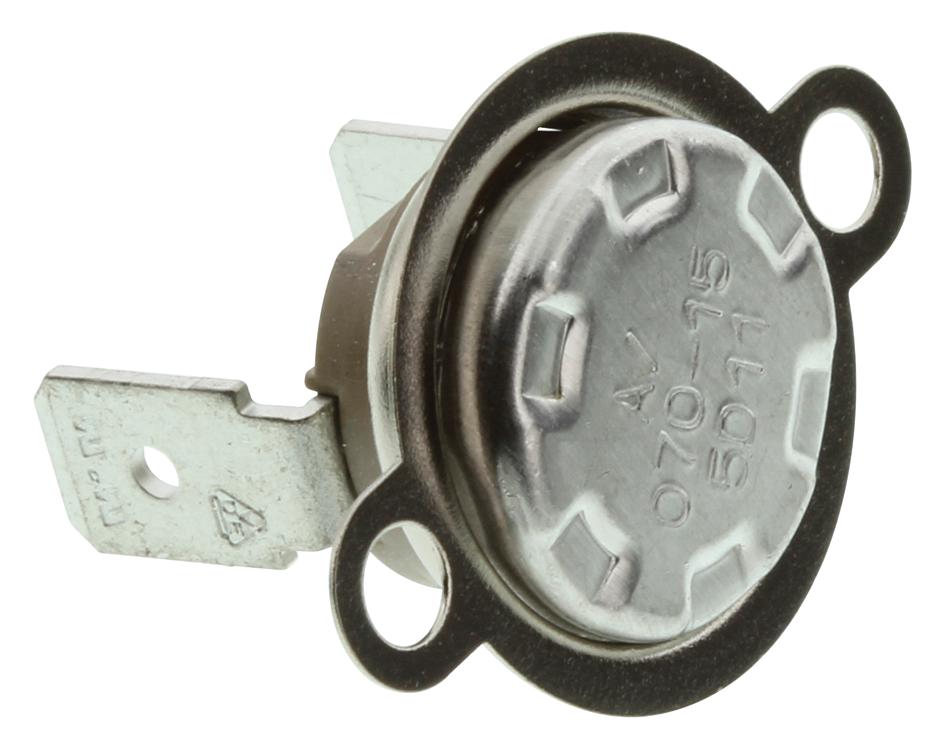

MULTICOMP T23A070ASR215 Temperature Switch
The T23A070ASR2-15 is a 2-pin, single-pole, single-throw normally closed contact temperature sensor equipped with quick connect terminals. It provides a dielectric strength of 1000VAC for at least one minute between non-live metal parts and contacts, along with an insulation resistance of 100 megaohms or more. The sensor features a contact resistance of 50 milliohms and is rated for 100,000 cycles under Class-II VDE standards, making it suitable for demanding applications. Multicomp products are highly rated with an average of 4.6 out of 5 stars, and the product comes with a 12-month limited warranty. It is ideal for use in sensing and instrumentation, automotive systems, and industrial automation control.
MULTICOMP T23A070ASR215 Temperature Switch Specifications:
- Operating Temperature: 50°C to 205°C
- Temperature Tolerance: ±5°C with options for ±3°C or ±4°C
- Differential: Reset temperature 1+ 6°C (typical)
- Heat Resistance: 240°C
- Terminal Size: 0.250 inches quick connect
- Resistance Voltages: 15A 125 V ac, 10 A 250 V ac
- Electrical Rating: 15 A 125 V ac resistive load, 10 A 250 V ac resistive load
- Contact Resistance: 50 mΩ or less
- Dielectric Strength: 1000 V ac for 1 minute between non-live metal parts and terminals
- Insulation Resistance: 100 MΩ or more between non-live parts and terminals
- Operating Life: 100,000 cycles (Class II VDE), 10,000 cycles estimated for 15 A 250 V ac
- Material: Aluminum sensing cup, ceramic actuating pin, bimetal disc, phenolic or pps retainer, brass and steel terminals, silver alloy contacts
- Temperature Rating: 70°C ± 3°C
- Dimensions: Diameter 0.079 inches (2 mm), length varies with mounting
Buy the Multicomp T23A070ASR2-15 – Reliable Temperature Switch for Industrial Applications
Purchase the Multicomp T23A070ASR2-15 online today—a highly durable, reliable temperature switch with quick connect terminals designed for industrial automation, sensing, and automotive use. Rated for up to 100,000 cycles with a dielectric strength of 1000VAC, it guarantees consistent performance in demanding environments. Its compact size (0.079-inch diameter), excellent insulation resistance, and robust material composition make it ideal for sensitive control systems. Order now to ensure seamless operation and long-term reliability in your automation projects, with fast delivery and guaranteed quality.
Get Multicomp T23A070ASR2-15 today—built for precision and long-lasting durability in sensing and automation controls.
Frequently Asked Questions
Where can I buy MULTICOMP T23A070ASR215?
You can click on the BUY or RFQ button to purchase T23A070ASR215 from an authorized MULTICOMP distributor.
How do I troubleshoot issues or seek technical support for part T23A070ASR215?
You can download the T23A070ASR215 datasheet or visit the MULTICOMP website for support.
Who is the manufacturer of T23A070ASR215?
MULTICOMP
