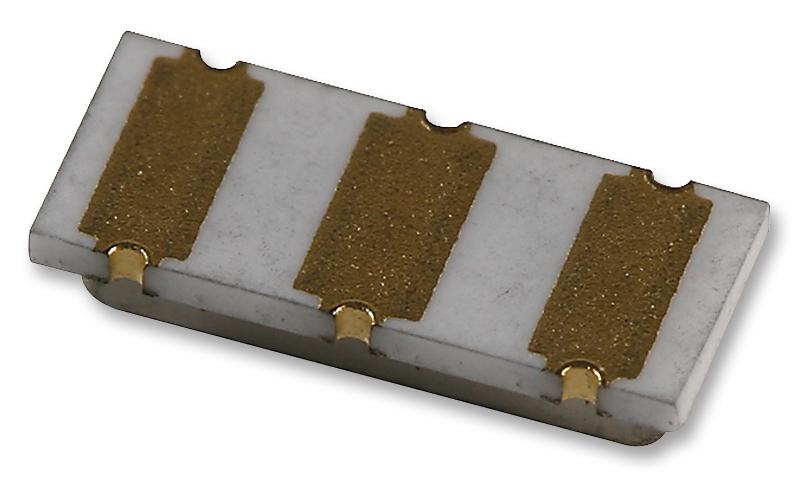

Murata CSTCR6M00G53R0 Piezoelectric Resonator
The piezoelectric ceramic resonator is designed for use in time base oscillators within microcomputers, offering high stability and reliability. It features a nominal frequency of 6.000 MHz with an initial tolerance of ±0.50%. The resonator construction includes mounting onto a ceramic substrate with a metal cap cover, ensuring durability and consistent performance. Operating within -20°C to +80°C, it exhibits excellent frequency stability, high insulation resistance, and withstands voltage of DC 100V. Suitable for precise timing applications, it provides low impedance, minimal aging, and conform to environmental standards for quality and longevity.
Murata CSTCR6M00G53R0 Piezoelectric Resonator Specifications:
- Nominal Oscillating Frequency: 6.000 MHz
- Initial Tolerance: ±0.50%
- Resonant Impedance: 50Ω max
- Built-in Load Capacitance: 15pF + 20%
- Insulation Resistance: 500 MΩ min (Applied DC 10V)
- Withstanding Voltage: DC 100V, 5 seconds max
- Rated Working Voltage: DC 6V, AC 15Vp-p
- Frequency Shift by Temperature: +0.2% max (-20°C to +80°C)
- Frequency Aging: +0.1% max
- Operating Temperature Range: -20°C to +80°C
- Storage Temperature Range: -55°C to +85°C
- Mechanical and environmental tests ensure durability including drop, vibration, thermal shock, and humidity resistance.
- Construction includes ceramic substrate with mounted resonator and metal cap cover, ensuring hermetic sealing and reliable operation.
Buy the CERALOCK CSTCR6M00G53R0 – Reliable Oscillator for Industrial Applications
Order the Murata CSTCR6M00G53R0 ceramic resonator online today for superior performance in microcomputer timing circuits. This high-stability component guarantees precise oscillation with excellent environmental resilience, including temperature stability and high insulation resistance. Compact and durable, it is ideal for industrial automation, communication, and control systems. Enjoy quick delivery and secure payment options. Make your purchase now to ensure your projects operate with maximum accuracy and reliability, supported by Murata's trusted quality standards.
Buy Murata CSTCR6M00G53R0 now and experience unmatched reliability and precise frequency stability for your industrial oscillators.
Frequently Asked Questions
Where can I buy Murata CSTCR6M00G53R0?
You can click on the BUY or RFQ button to purchase CSTCR6M00G53R0 from an authorized Murata distributor.
How do I troubleshoot issues or seek technical support for part CSTCR6M00G53R0?
You can download the CSTCR6M00G53R0 datasheet or visit the Murata website for support.
Who is the manufacturer of CSTCR6M00G53R0?
Murata
