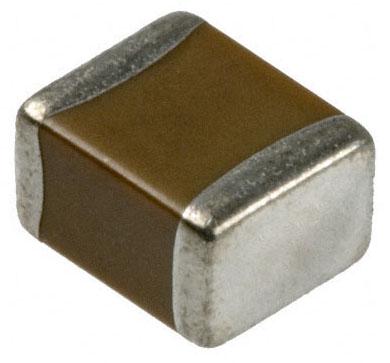

Murata GRM32ER71A476ME15L Ceramic Capacitor
The Murata GRM series multilayer ceramic chip capacitors (MLCC) are versatile, offering capacitance values from 0.1pF to 220µF. Designed for general-purpose use, they feature a multilayer construction with dimensions from 0.4×0.2mm to 5.7×5.0mm, ensuring high capacitance in a compact size. Equipped with tin-plated external electrodes for reliable soldering, these capacitors provide excellent high-frequency performance and pulse response. Rated voltages range from 2.5VDC to 3.15kVDC, with temperature characteristics compliant with JIS and EIA standards, suitable for filtering, high-frequency matching, power decoupling, and smoothing circuits, classified into temperature compensating or high dielectric constant types based on capacitance variation with temperature.
Murata GRM32ER71A476ME15L Ceramic Capacitor Specifications:
- Capacitance: 47 µF
- Rated Voltage: 10V
- Temperature Characteristics: X7RER
- Size: 3.2×2.5mm
- Dimensions: Length 3.2mm, Width 2.5mm
- Mass: 110mg
- Packaging: Embossed taping (180mm reel, 330mm taping)
- Operating Temperature Range: -55°C to +125°C
- Temperature Coefficient: X7R
- Impedance: Low ESR for high-frequency performance
- Material: Ceramic dielectric
- External electrodes: Tin-plated
- Frequency Characteristics: Suitable for high-frequency circuits
- Certifications: RoHS compliant
- Application Types: Filtering, decoupling, high-frequency matching
- Quantity per reel: 1000 or 4000 pieces
- Typical mass: 110 mg per piece
Buy the Murata GRM32ER71A476ME15L – Reliable High-Dielectric Ceramic Capacitor for Industrial Applications
Purchase the Murata Ceramic Capacitor GRM32ER71A476ME15L online today and enhance your electronic projects with a highly reliable, compact, and high-performance component. Designed for a wide range of applications including filtering, decoupling, and high-frequency circuit matching, this capacitor offers excellent pulse response and low impedance at high frequencies. With precise dimensions, high stability, and tin-plated electrodes for easy soldering, it's the perfect addition to your manufacturing or repair toolkit. Secure fast delivery and quality assurance by ordering now for your industrial and electronic needs.
Order your Murata Series GRM32ER71A476ME15L today and give your electronic projects the dependable quality they deserve, especially in high-frequency filtering and decoupling applications.
Frequently Asked Questions
Where can I buy Murata GRM32ER71A476ME15L?
You can click on the BUY or RFQ button to purchase GRM32ER71A476ME15L from an authorized Murata distributor.
How do I troubleshoot issues or seek technical support for part GRM32ER71A476ME15L?
You can download the GRM32ER71A476ME15L datasheet or visit the Murata website for support.
Who is the manufacturer of GRM32ER71A476ME15L?
Murata
