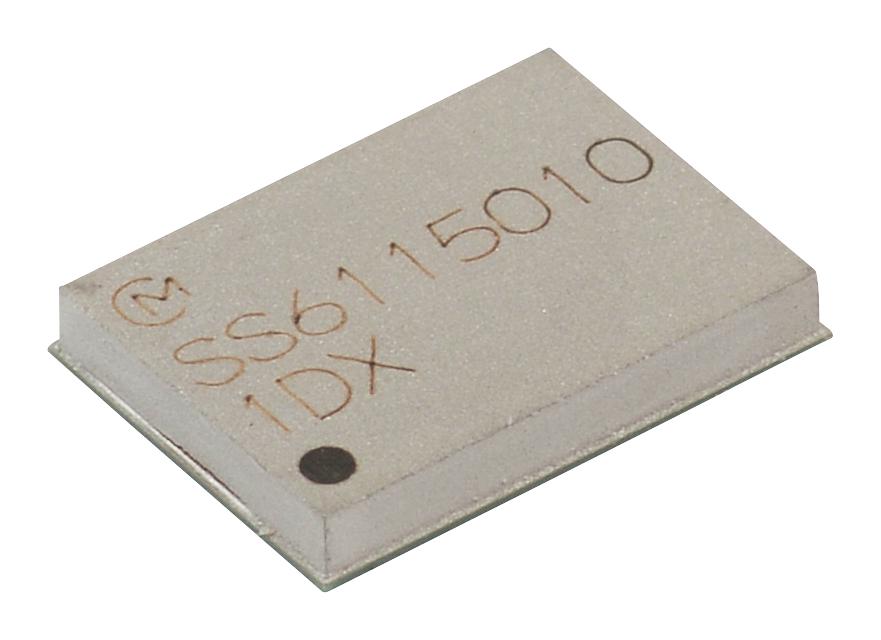

Murata LBEE5KL1DX883 Wireless Communication Module
This wireless module integrates Wi-Fi and Bluetooth functionalities, supporting IEEE 802.11b/g/n standards and Bluetooth v4.1. It features Cypress chipset technology, embedded reference clock, RoHS compliance, and reliable operation for IoT, industrial automation, and wireless communication systems. Designed for OEM integration, it includes SDIO and UART interface options, withstands a wide operating temperature range, and complies with FCC and Industry Canada certifications, ensuring high performance in various environments with robust certification approval.
Murata LBEE5KL1DX883 Wireless Communication Module Specifications:
- Supports IEEE802.11b/g/n Wi-Fi standards (2400 - 2483.5 MHz, data rates up to 54 Mbps)
- Bluetooth v4.1 + EDR, BLE with 2.4 GHz operation, 1MHz channel spacing
- Power Consumption: Tx: 320-370mA (802.11b), Rx: 47-60mA, Bluetooth Tx: 6-14dBm output
- Operating temperature: -10°C to +55°C; Storage: -40°C to +85°C
- Supply Voltage: 3.0V to 4.2V for VBAT, 1.8V/3.3V for VDDIO
- Certifications: FCC ID VPYLB1DX, IC 772C-LB1DX, Bluetooth Qualification QDID: 73069, RoHS compliant
- Interfaces: SDIO for WLAN, UART for Bluetooth, GPIO, and external sleep clock
- Physical Dimensions: Length 6.95mm, width 5.15mm, height approximately 1.1mm
- MTBF and reliability according to JEDEC Level 3, with anti-static, RoHS, and moisture resistance features.
Buy the Murata LBEE5KL1DX – Reliable Wireless Module for Industrial Applications
Purchase the Murata wireless communication module today to leverage advanced Wi-Fi and Bluetooth features, certified for industrial and IoT applications. Designed for OEM integration, it provides reliable operation with extensive certification, including FCC and Industry Canada approval. Its compact size, support for high data rates, and compliance with RoHS make it suitable for a wide range of wireless solutions in automation, smart devices, and industrial environments. Experience seamless connectivity and high-performance wireless communication by buying now.
Get Murata LBEE5KL1DX today—built for high-performance wireless connectivity in automation and IoT solutions.
Frequently Asked Questions
Where can I buy Murata LBEE5KL1DX883?
You can click on the BUY or RFQ button to purchase LBEE5KL1DX883 from an authorized Murata distributor.
How do I troubleshoot issues or seek technical support for part LBEE5KL1DX883?
You can download the LBEE5KL1DX883 datasheet or visit the Murata website for support.
Who is the manufacturer of LBEE5KL1DX883?
Murata
