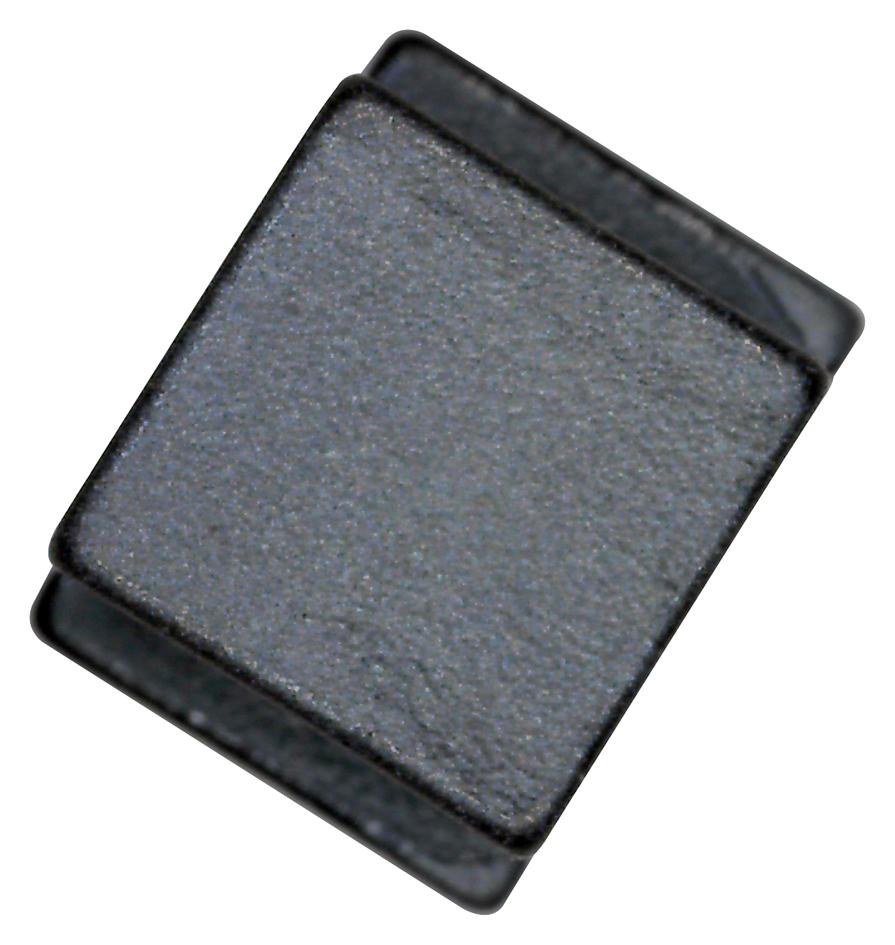

Murata LQH2HPN100MJRL High-Performance Chip Inductor
The LQH2HPN100MJRL is a high-performance chip inductor designed for electronic applications requiring precise inductance and stability. It features a size of 2.52mm by 2.02mm with a maximum thickness of 1.14mm, and offers an inductance of 10 µH with a tolerance of 20%. The component operates within a temperature range of 40°C to 125°C, with a low DC resistance of 0.456 Ω, and a self-resonance frequency above 30 MHz. It is suitable for use in power supply circuits, filters, and RF applications, ensuring durability and reliable performance under various conditions.
Murata LQH2HPN100MJRL High-Performance Chip Inductor Specifications:
- Size: 2.52mm x 2.02mm x 1.14mm
- Inductance: 10 µH ±20%
- Inductance Test Frequency: 1MHz
- Rated Current (Isat): 830mA at 85°C ambient temperature, 490mA at 105°C
- DC Resistance: 0.456 Ω
- Operating Temperature Range: 40°C to 125°C
- Self-Resonance Frequency: Minimum 30MHz
- Magnetic Shield Class: Magnetic Resin
- Frequency Characteristic (L): Frequencies up to 100MHz
- Temperature Rise: Up to 40°C at rated current
- Size Code: 2520 (inch mm: 1008)
- Material: Ferrite core with low loss properties
Buy the Buy Murata Inductor Part Number LQH2HPN100MJRL Online
Order the Murata High-Performance Chip Inductor LQH2HPN100MJRL online today and enjoy reliable power, RF stability, and durability. This compact, high-quality component features a 10 µH inductance, operates within 40°C to 125°C, and provides low DC resistance. It is ideal for use in power filters, RF applications, and complex electronic circuits, ensuring consistent performance under varying temperatures and currents. Purchase online now for quick delivery and superior electronic component performance.
Get Murata LQH2HPN100MJRL today—built for precision and long-lasting durability in RF and power supply circuits.
Frequently Asked Questions
Where can I buy Murata LQH2HPN100MJRL?
You can click on the BUY or RFQ button to purchase LQH2HPN100MJRL from an authorized Murata distributor.
How do I troubleshoot issues or seek technical support for part LQH2HPN100MJRL?
You can download the LQH2HPN100MJRL datasheet or visit the Murata website for support.
Who is the manufacturer of LQH2HPN100MJRL?
Murata
