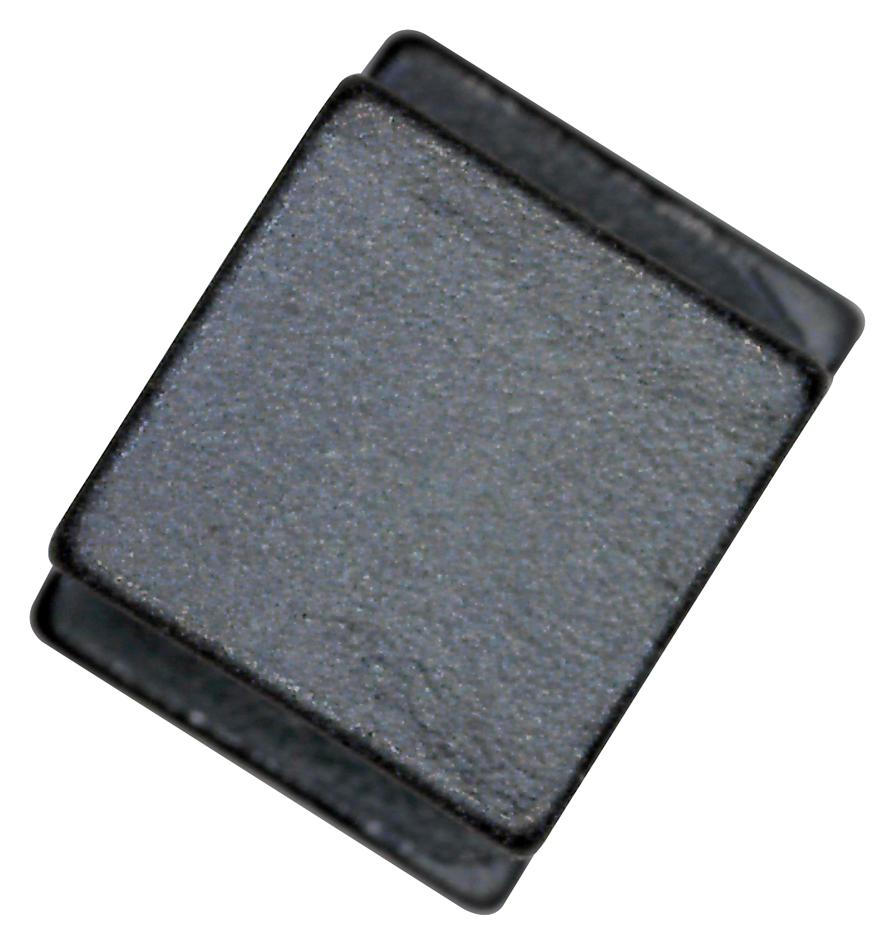

Murata LQH2HPN1R5MDRL Power Inductor
The LQH2HPN1 R5MDRL is a high-performance surface-mount power inductor designed for industrial and electronic applications. It features an inductance of 1.5 μH with ±20% tolerance at a test frequency of 1 MHz. Suitable for high-frequency circuits, it boasts a maximum DC resistance of 0.348 Ω and a self-resonance frequency of at least 60 MHz. Rated for a saturation current of 4120 mA and operational temperature ranging from -40°C to 125°C, it ensures reliable performance under demanding conditions. Its magnetic resin shield minimizes electromagnetic interference, making it ideal for compact, high-efficiency power modules.
Murata LQH2HPN1R5MDRL Power Inductor Specifications:
- Inductance: 1.5 μH ±20% at 1 MHz
- Rated Current (Isat): 4120 mA (Ambient 85°C), 540 mA (Ambient 105°C)
- Max. DC Resistance: 0.348 Ω
- Self Resonance Frequency: ≥ 60 MHz
- Operating Temperature Range: -40°C to 125°C
- Temperature Rise: Limited to 40°C at 85°C ambient, 20°C at 105°C ambient
- Size: 2.5x2.0 mm (LxW)
- Magnetic Shield: Magnetic resin
- Frequency Characteristic: Measured at 1 MHz
- Packaging: Embossed taping, quantity: 4000 pcs
- Mass: Approx. 0.0109 g
- Series: LQH2HPN_DR
Buy the Murata LQH2HPN1 R5MDRL – Reliable Power Inductor for Industrial Applications
Purchase Murata LQH2HPN1 R5MDRL power inductor online today for high performance and reliability in your electronic projects. Its 1.5 μH inductance with ±20% tolerance ensures efficient power management and high-frequency capabilities, making it ideal for industrial and consumer electronics. The inductor features low DC resistance of 0.348 Ω, operates across -40°C to 125°C, and is shielded with magnetic resin to reduce electromagnetic interference. Order now to benefit from quick delivery and premium quality components for your applications.
Get Murata LQH2HPN1 R5MDRL today—built for high-frequency stability and long-lasting durability.
Frequently Asked Questions
Where can I buy Murata LQH2HPN1R5MDRL?
You can click on the BUY or RFQ button to purchase LQH2HPN1R5MDRL from an authorized Murata distributor.
How do I troubleshoot issues or seek technical support for part LQH2HPN1R5MDRL?
You can download the LQH2HPN1R5MDRL datasheet or visit the Murata website for support.
Who is the manufacturer of LQH2HPN1R5MDRL?
Murata
