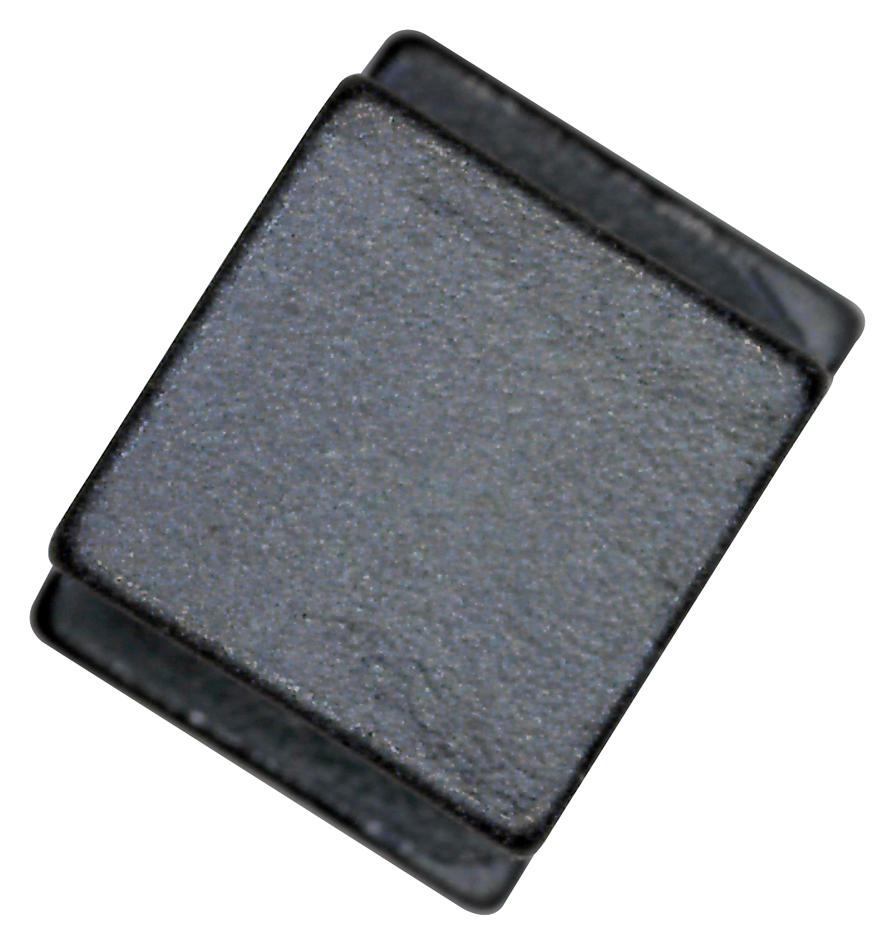

Murata LQH2HPN220MDRL Surface-mount inductor
The LQH2HPN220MDRL is a high-reliability surface-mount inductor designed for industrial and electronic applications. It features a 22uH inductance with a tolerance of ±20%, rated at 260mA at 85°C ambient temperature and 170mA at 105°C. This inductor offers a low DC resistance of approximately 3.09420%, with a self-resonance frequency minimum of 20MHz. It operates effectively within a temperature range of -40°C to 125°C, making it suitable for high-temperature environments. The magnetic shield is made of magnetic resin, ensuring consistent performance and EMI suppression in compact designs.
Murata LQH2HPN220MDRL Surface-mount inductor Specifications:
- Inductance: 22uH ±20%
- Rated current: 260mA at 85°C ambient temperature, 170mA at 105°C ambient temperature
- DC Resistance: approximately 3.09420%
- Self resonance frequency: Minimum 20MHz
- Operating temperature range: -40°C to 125°C
- Temperature rise limit: 40°C max at ambient 85°C, 20°C max at ambient 105°C
- Magnetic shield: Magnetic Resin
- Size: 0.55±0.05mm (size code in inches: 1008 or 2520)
- Mass: approx. 0.0109 grams per piece
- Series: LOQH2HPN_DR
- Packaging: Embossed taping, minimum order quantity 4000 pieces
- Frequency characteristics: Inductance and current vary with frequency, tested at 20MHz
- Temperature rise: Characteristics illustrated at different current levels
Buy the Murata 220MDR – Reliable Inductive Components for Industrial Applications
Secure your supply of high-quality inductors by purchasing Murata 220MDR online today. Designed for superior performance with precise inductance, low resistance, and broad temperature range, this inductor is perfect for industrial and electronic applications requiring high reliability. Easily incorporate it into your designs with minimal space and maximum efficiency. Our online store offers quick ordering and fast delivery, ensuring your projects stay on schedule. Invest in quality and performance with Murata 220MDR inductors today to enhance your product's reliability and efficiency.
Buy Murata 220MDR high-efficiency inductors now and experience unmatched reliability and consistent performance in your electronic designs.
Frequently Asked Questions
Where can I buy Murata LQH2HPN220MDRL?
You can click on the BUY or RFQ button to purchase LQH2HPN220MDRL from an authorized Murata distributor.
How do I troubleshoot issues or seek technical support for part LQH2HPN220MDRL?
You can download the LQH2HPN220MDRL datasheet or visit the Murata website for support.
Who is the manufacturer of LQH2HPN220MDRL?
Murata
