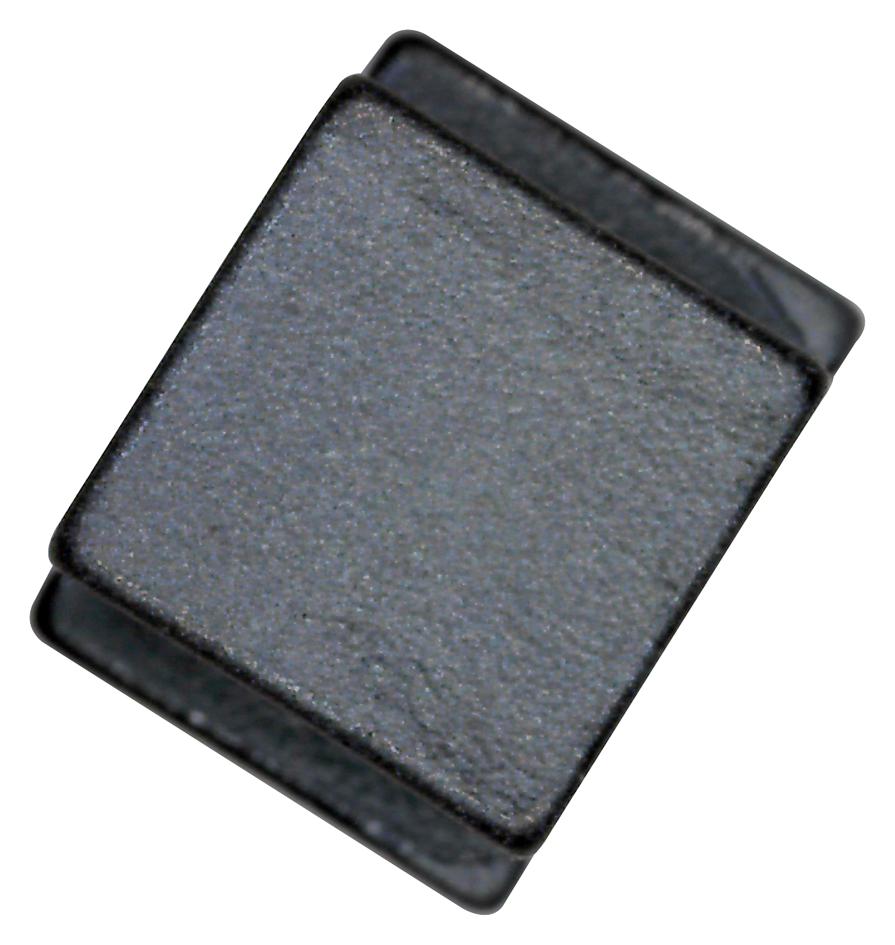

Murata LQH2HPN220MJRL High-Frequency Inductance Core
This ferrite core in a 2520 package measures 2.520 mm in size and is designed for high-frequency inductance applications. It offers inductance of 22μH with a tolerance of ±20%, tested at 1 MHz. Suitable for high-current circuits, it supports a maximum rated current of 540mA at ambient temperatures up to 85°C, with a self-temperature rise of 40°C. Its compact size and magnetic resin shield make it ideal for compact electronic devices, precise filtering, and power supply modules. Durably built, it ensures stable inductive performance in various electronic assemblies.
Murata LQH2HPN220MJRL High-Frequency Inductance Core Specifications:
- Size: 2.520 mm (length), 2.020 mm (width), 1.140 mm (height)
- Package: 2520 (1008 inch mm)
- Inductance: 22μH ±20% at 1 MHz
- Rated Current: 540mA at 85°C ambient temperature
- Temperature Range: 40°C to 125°C (self-temperature rise included)
- Max DC Resistance: 0.80Ω
- Self-Resonance Frequency: 20MHz
- Magnetic Shield Class: Magnetic Resin
- Operating Temperature Range: 40°C to 105°C (without self-temperature rise)
- Inductance change under current: within 30% of the initial value
- Size Code: 2520 (1008 mm)
- Material: Ferrite core with magnetic resin shield
Buy the Buy Murata Inductance Part Number LQH2HPN220MJR# Online
Order Murata high-frequency inductance core designed for various electronic applications. Featuring 22μH inductance with ±20% tolerance at 1 MHz, rated at 540mA, and compact 2520 size. It supports ambient temperatures up to 85°C with a 40°C self-temperature rise, ensuring reliable performance. Suitable for power supplies, filters, and compact circuit designs, its magnetic resin shield provides durability. Easy online purchase with quick delivery ensures your projects stay on schedule.
Get Murata LQH2HPN220MJR# today—designed for high-frequency filtering and stable inductance performance in compact applications.
Frequently Asked Questions
Where can I buy Murata LQH2HPN220MJRL?
You can click on the BUY or RFQ button to purchase LQH2HPN220MJRL from an authorized Murata distributor.
How do I troubleshoot issues or seek technical support for part LQH2HPN220MJRL?
You can download the LQH2HPN220MJRL datasheet or visit the Murata website for support.
Who is the manufacturer of LQH2HPN220MJRL?
Murata
