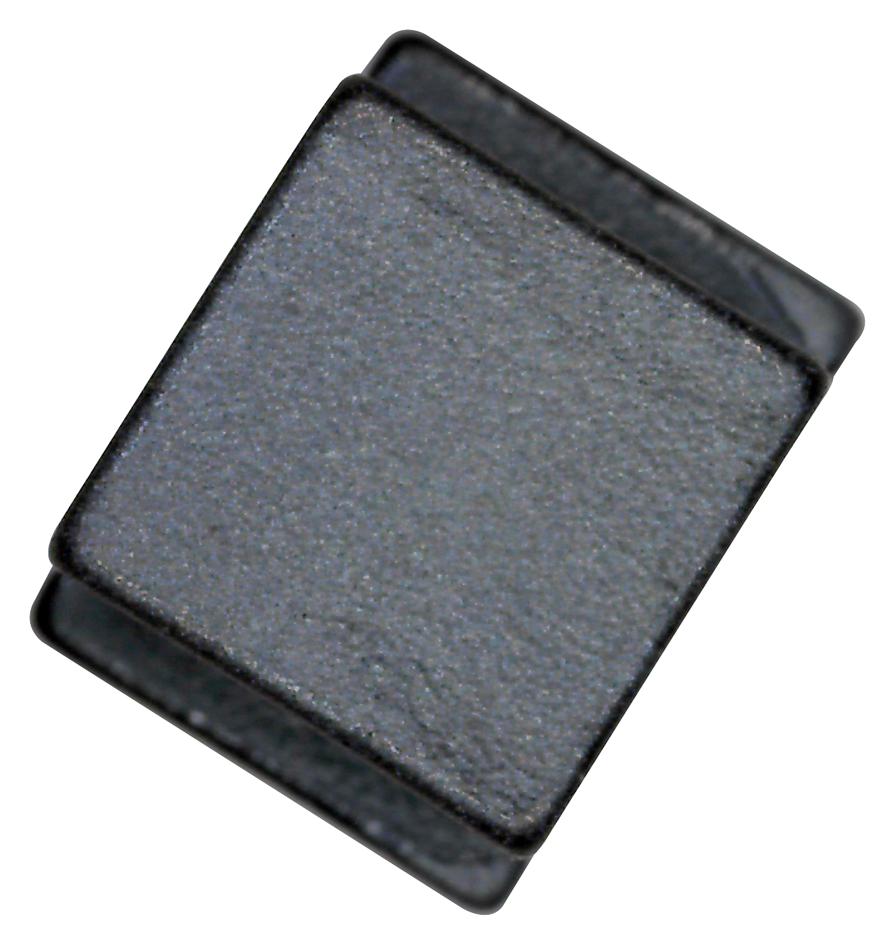

Murata LQH32MN221K23L Multilayer Chip Inductor
The LQH32MN221K23L is a high-performance multilayer chip inductor designed for compact electronic applications. Featuring a size code of 3225 (1210), it boasts an inductance of 220 microhenries with a ±10% tolerance. The component delivers a maximum DC resistance of 11.80 ohms, with a self-resonance frequency of at least 5.5 MHz and an impedance of 100 ohms at 1 MHz. Its construction includes no magnetic shield, making it suitable for high-frequency circuits and radio frequency applications. The inductor operates within a temperature range of -45°C to +85°C and weighs approximately 0.06 grams, ensuring reliability and efficiency in precise electronic designs.
Murata LQH32MN221K23L Multilayer Chip Inductor Specifications:
- Size: 3.2 mm x 2.5 mm x 2.0 mm
- Size code: 1210 (3225 in mm)
- Inductance: 220μH ±10%
- Test Frequency: 1MHz
- Rated Current: based on operating temperature and heat rise
- Maximum DC Resistance: 11.80 ohms
- Q factor: Minimum 40 at 796 kHz
- Self Resonance Frequency: Minimum 5.5 MHz
- Operating Temperature Range: -45°C to +85°C
- Magnetic Shield: No Shield
- Impedance: 100 ohms at 1 MHz
- Weight: approximately 0.06 g
Buy the Murata LQH32MN221K23L – Reliable Inductor for Industrial Applications
Purchase the Murata Series LQH32MN221K23L multilayer chip inductor online today. This high-quality component offers 220μH inductance, low resistance, and excellent high-frequency performance, making it ideal for precise electronic applications. Compact and lightweight, it operates within a temperature range of -45°C to +85°C, ensuring durability and reliability in various environments. Whether for RF circuits or compact electronics, this inductor provides consistent performance. Order now to ensure your projects benefit from superior quality and efficient design with quick delivery and trusted service.
Order your Murata Series LQH32MN221K23L inductor today and give your electronic projects the dependable quality they deserve, ensuring high performance in compact designs.
Frequently Asked Questions
Where can I buy Murata LQH32MN221K23L?
You can click on the BUY or RFQ button to purchase LQH32MN221K23L from an authorized Murata distributor.
How do I troubleshoot issues or seek technical support for part LQH32MN221K23L?
You can download the LQH32MN221K23L datasheet or visit the Murata website for support.
Who is the manufacturer of LQH32MN221K23L?
Murata
