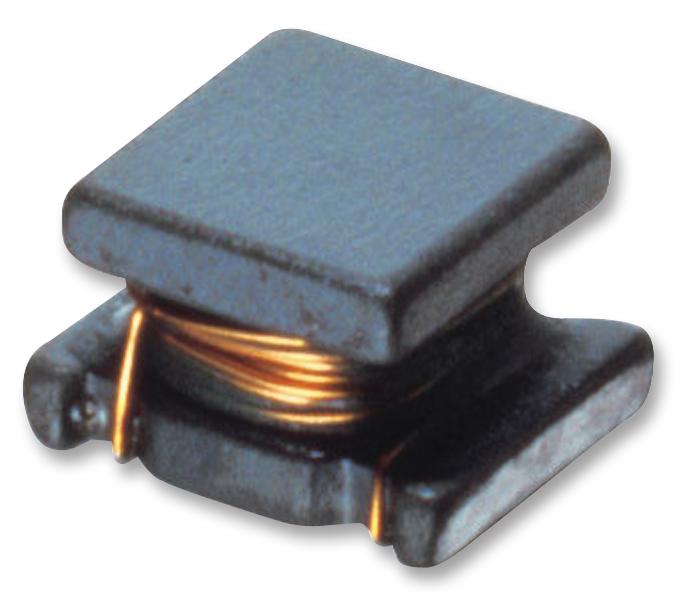

Murata LQH32NH100J23L Multilayer Ceramic Chip Inductor
The LQH32NH100J23L is a high-quality multilayer ceramic chip inductor designed for compact electronic applications. It features an inductance of 10µH with ±15% tolerance, operating efficiently across temperatures from -40°C to 125°C. Rated for a maximum current of 325mA, it offers low DC resistance of approximately 0.340Ω and a self-resonance frequency minimum of 35MHz. Its small size and high-quality construction make it ideal for noise filtering, impedance matching, and RF circuits, enhancing performance in portable and surface-mount device applications.
Murata LQH32NH100J23L Multilayer Ceramic Chip Inductor Specifications:
- Inductance: 10µH, ±15%
- Inductance test frequency: 1MHz
- Rated current: 325mA
- Maximum DC resistance: 0.408Ω
- Average DC resistance: 0.340Ω
- Self resonance frequency: 35MHz (minimum)
- Operating temperature range: -40°C to 125°C
- Package series: LQH32NH_23
- Package size: 3.2mm x 2.5mm x 2.0mm
- Material: Multilayer ceramic
- Shielding: No Shield
- Packaging options: Embossed taping, 2000 or 7500 units per reel
Buy the Murata Series LQH32NH 10µH Ceramic Chip Inductor: LQH32NH100J23L
Order the Murata LQH32NH100J23L multilayer ceramic chip inductor online today to enhance your electronic designs with high inductance stability, low resistance, and broad temperature tolerance. Ideal for RF circuits, noise filtering, and impedance matching, this compact component ensures reliable performance across diverse applications. With quick delivery, quality assurance, and premium design, purchasing online guarantees you access to top-tier inductors suitable for portable and surface-mount devices, supporting your project’s success and efficiency.
Buy Murata LQH32NH100J23L now and experience unmatched reliability and performance in RF filtering and impedance matching applications.
Frequently Asked Questions
Where can I buy Murata LQH32NH100J23L?
You can click on the BUY or RFQ button to purchase LQH32NH100J23L from an authorized Murata distributor.
How do I troubleshoot issues or seek technical support for part LQH32NH100J23L?
You can download the LQH32NH100J23L datasheet or visit the Murata website for support.
Who is the manufacturer of LQH32NH100J23L?
Murata
