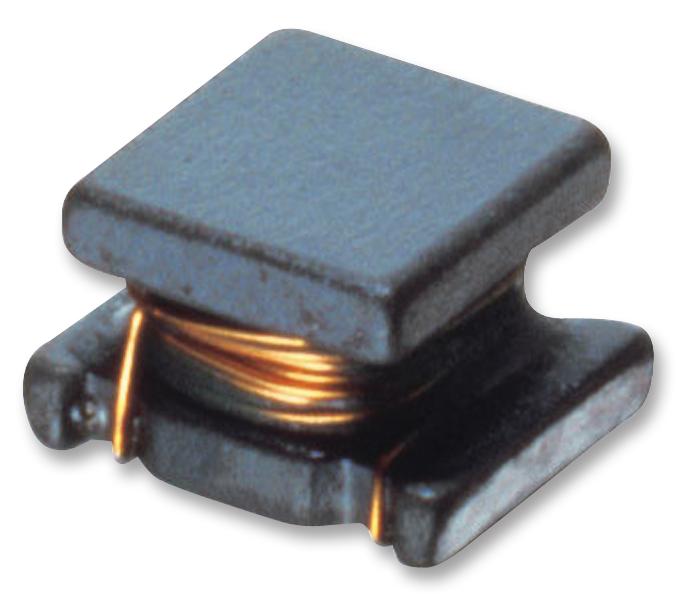

Murata LQH32NH2R2J23L High-Performance Surface Mount Inductor
The LQH32NH2R2J23L is a high-performance SMD inductor with a inductance of 2.2μH rated at 1MHz frequency. It features a temperature range from -40°C to 125°C, making it suitable for various electronic circuits requiring stable inductance and minimal resistance. The inductor has a maximum DC resistance of 0.1164Ω and an average of 0.0970Ω. Designed without magnetic shielding, it delivers reliable magnetic performance with high Q values and self-resonance frequency of 75MHz, ideal for power supplies, filters, and RF applications.
Murata LQH32NH2R2J23L High-Performance Surface Mount Inductor Specifications:
- Inductance: 2.2μH ±45%
- Inductance test frequency: 1MHz
- Rated current: 610mA (based on temperature rise)
- Max. DC resistance: 0.1164Ω
- Average DC resistance: 0.0970Ω
- Self-resonance frequency: 75MHz
- Operating temperature range: -40°C to 125°C
- Series: LQH32NH2R2J23
- Package options: Embossed taping - 180mm (2000 pieces), 330mm (7500 pieces)
- Size: 32 (mm), W size: 2.5 ±0.2mm, T size: 2.0 ±0.2mm
- No magnetic shield, suitable for high-frequency applications
Buy the Murata Series LQH32NH Series Inductor: LQH32NH2R2J23L
Order the Murata LQH32NH2R2J23L inductor today through our online store and enjoy quick delivery and top-quality performance. This high-frequency inductor features 2.2μH inductance, low DCR of 0.097Ω, and operates efficiently across -40°C to 125°C, making it ideal for power filters, RF circuits, and noise suppression. Its robust construction ensures long-term reliability, with embossed taping options facilitating automated assembly. Choose our online platform for secure purchase, competitive pricing, and expert support for your electronic component needs.
Buy Murata LQH32NH2R2J23L inductor now and experience reliable performance for power supply and RF applications.
Frequently Asked Questions
Where can I buy Murata LQH32NH2R2J23L?
You can click on the BUY or RFQ button to purchase LQH32NH2R2J23L from an authorized Murata distributor.
How do I troubleshoot issues or seek technical support for part LQH32NH2R2J23L?
You can download the LQH32NH2R2J23L datasheet or visit the Murata website for support.
Who is the manufacturer of LQH32NH2R2J23L?
Murata
