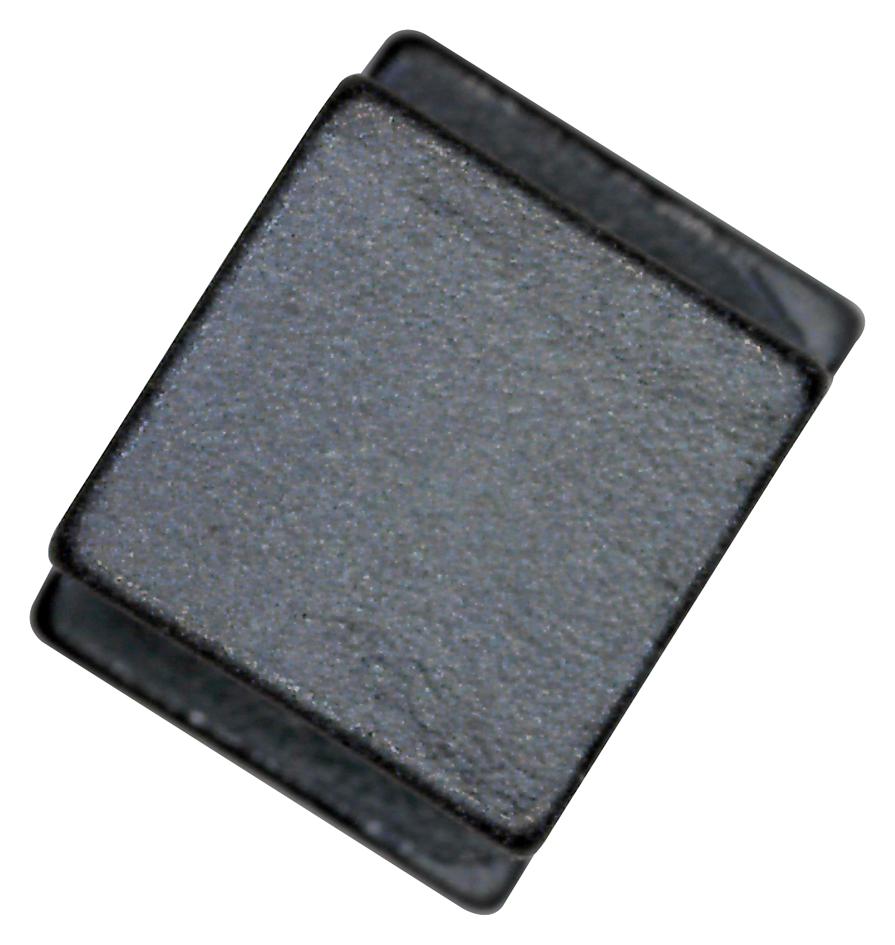

Murata LQH32NH471J23L High-Frequency Chip Inductor
The LQH32NH471J23L is a high-frequency multilayer chip inductor designed for use in compact electronic circuits. With a size of 3.2 x 2.5 x 2.0 mm, it features an inductance with a tolerance of ±5% and a minimum Q factor of 50 at test frequencies of 796 kHz. Suitable for applications requiring operation up to 125°C, it has a maximum DC resistance of 16.9 mΩ and operates within an ambient temperature range of -40°C to 125°C. Its medium self-resonance frequency of 5 MHz makes it ideal for RF and high-speed digital circuits. This component is shieldless, offering reliable magnetic performance and low losses, ensuring consistent energy transfer in compact, high-frequency electronic systems.
Murata LQH32NH471J23L High-Frequency Chip Inductor Specifications:
- Size: 3.2 x 2.5 x 2.0 mm
- Size code: 1210 (32 x 25 mm)
- Inductance Tolerance: ±5%
- Q factor: 50 (at 796kHz)
- Self resonance frequency: minimum 5 MHz
- Rated current: 40mA (based on temperature rise of 20°C)
- Max. DC Resistance: 16.9 mΩ
- Operating Temperature Range: -40°C to 125°C
- Magnetic Shield: No Shield
- Series: LQH32NH_23
- Physical & Technical: Small size, low resistance, suitable for high-frequency circuits, reliable performance in electronic applications
Buy the Murata LQH32NH471J23L – Reliable High-Frequency Inductor for Industrial Applications
Order the Murata LQH32NH471J23L today and enhance your electronic designs with a high-quality, reliable inductor. Its compact size, excellent high-frequency characteristics, and durability make it ideal for RF circuits, digital electronics, and high-speed applications. With a temperature range of -40°C to 125°C, low DC resistance, and stable inductance, this component ensures optimal performance in demanding environments. Purchase online now to secure a proven solution for your advanced electronic systems, backed by Murata's quality and innovation.
Get Murata LQH32NH471J23L today—built for precision and durable high-frequency performance in your electronic projects.
Frequently Asked Questions
Where can I buy Murata LQH32NH471J23L?
You can click on the BUY or RFQ button to purchase LQH32NH471J23L from an authorized Murata distributor.
How do I troubleshoot issues or seek technical support for part LQH32NH471J23L?
You can download the LQH32NH471J23L datasheet or visit the Murata website for support.
Who is the manufacturer of LQH32NH471J23L?
Murata
