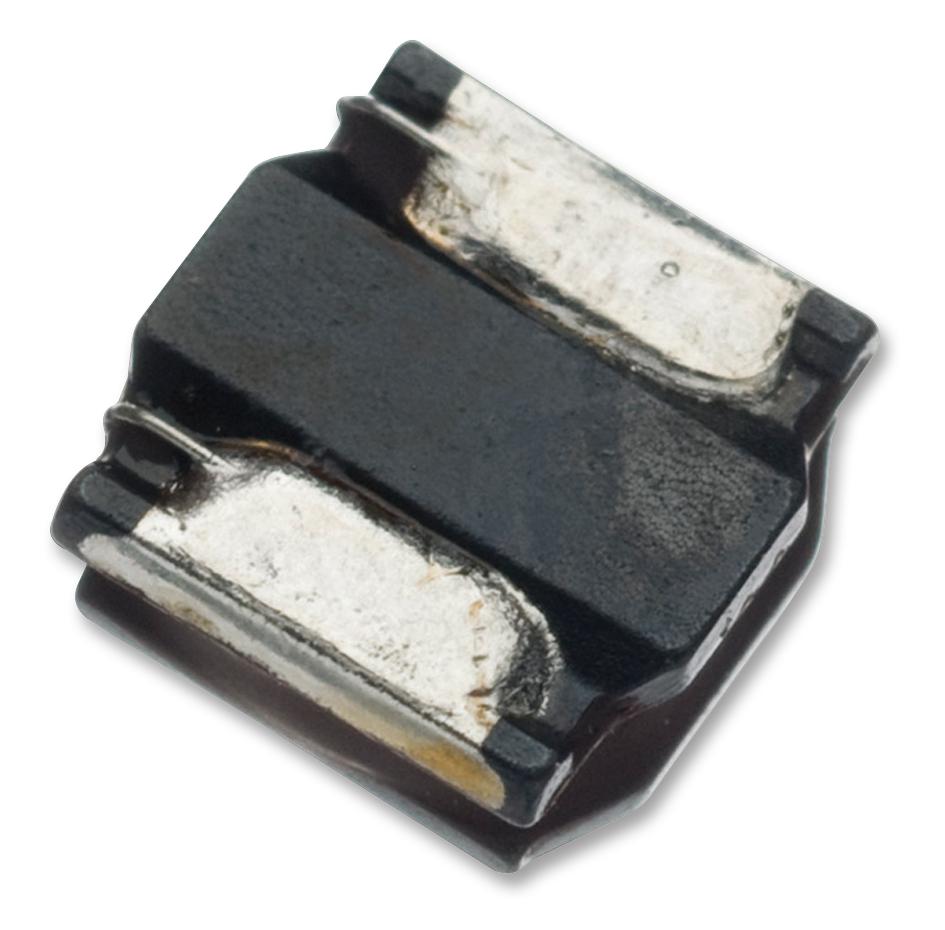

Murata LQH32PN220MN0L High-Frequency Inductor
The inductor features a 22 microhenry inductance with a maximum DC resistance of 0.0972 ohms and a rated current of 500mA, designed for high-frequency applications up to 20MHz. It has a compact size with a 3.2mm (L) x 2.5mm (W) x 1.5mm (T) package. The device supports operating temperatures from 40°C to 125°C, with a maximum self temperature rise of 40°C under rated current. Encased in resin with magnetic powder for shielding, it offers reliable performance in compact electronic systems.
Murata LQH32PN220MN0L High-Frequency Inductor Specifications:
- Inductance: 22μH
- DC Resistance: Max 0.0972Ω
- Rated Current: 500mA based on inductance change
- Temperature Range: 40°C to 125°C
- Self Resonance Frequency: Min 20MHz
- Package Size: 3.2mm x 2.5mm x 1.5mm
- Magnetic Shield: Resin with magnetic powder
- Maximum Temperature Rise: 40°C
- Mass: Approximately 0.044g
- Packaging: 180mm embossed taping (2000 units), 330mm embossed taping (7500 units)
Buy the Buy Murata Inductor Part Number LQH32PN220MN0L Online
Order the high-performance Murata inductor LQH32PN220MN0L online today and enhance your electronic designs with compact size, high resonance frequency, and reliable magnetic shielding. Designed for demanding applications, this 22μH inductor ensures minimal resistance and efficient operation at frequencies up to 20MHz. With a compact package measuring 3.2mm by 2.5mm and a maximum temperature range of 40°C to 125°C, it provides robust performance for power management and RF circuits. Secure your supply and benefit from quick, convenient online purchasing.
Buy Murata LQH32PN220MN0L now and experience reliable high-frequency performance in compact electronic systems.
Frequently Asked Questions
Where can I buy Murata LQH32PN220MN0L?
You can click on the BUY or RFQ button to purchase LQH32PN220MN0L from an authorized Murata distributor.
How do I troubleshoot issues or seek technical support for part LQH32PN220MN0L?
You can download the LQH32PN220MN0L datasheet or visit the Murata website for support.
Who is the manufacturer of LQH32PN220MN0L?
Murata
