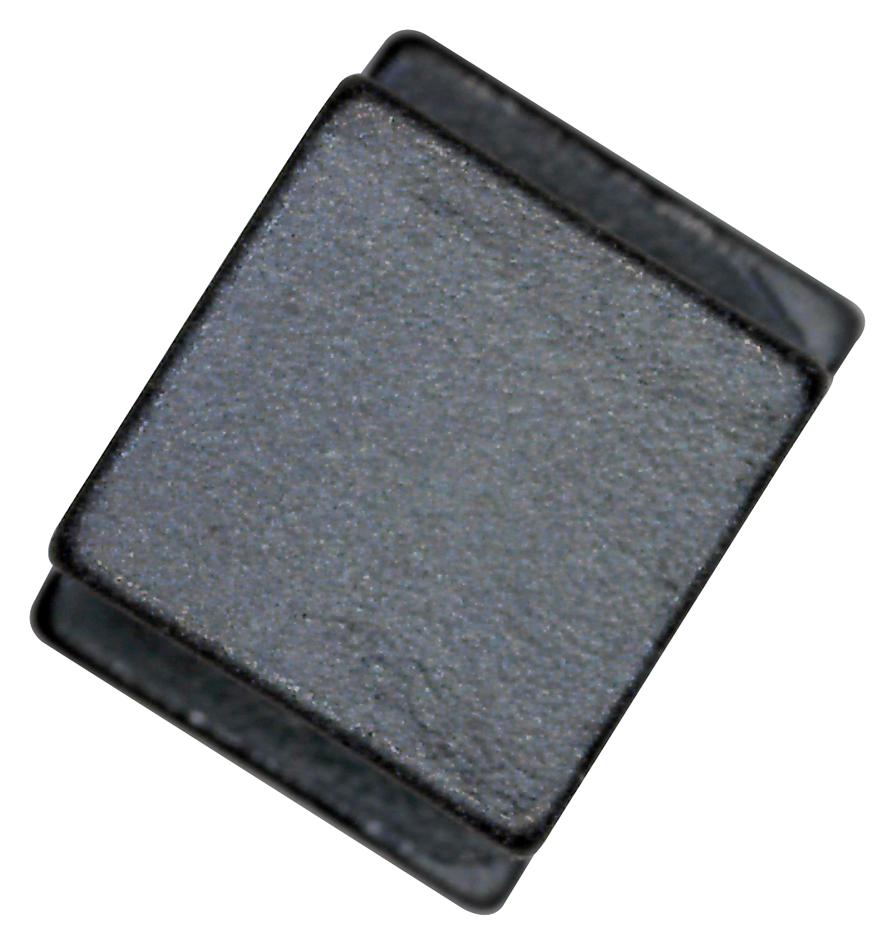

Murata LQH3NPN100MMEL Power Inductor
The LQH3NPN100MMEL is a high-performance, low-profile power inductor designed for use in electronic circuits requiring reliable inductance and stable operation. Featuring a size code of 1212 (30.30 mm), it offers an inductance of 10μH with a tolerance of ±20%, and operates within a temperature range of 40°C to 125°C. The inductor has a maximum DC resistance of 0.228Ω, and is protected by a magnetic resin shield, ensuring durability in various applications. It supports rated currents up to 1280mA at 85°C ambient temperature, making it suitable for power supplies and RF circuits.
Murata LQH3NPN100MMEL Power Inductor Specifications:
- Inductance: 10μH ±20% at 1MHz
- Rated current: 1280mA at 85°C ambient temperature
- Maximum DC resistance: 0.228Ω
- Operating temperature range: 40°C to 125°C
- Self-resonance frequency: 20MHz
- Size: 30.30mm (1212 size code)
- Material: Magnetic resin shield
- Impedance: varies with frequency, with impedance increasing at higher frequencies
- Temperature rise: limited to 40°C max at rated current
- Package: Bulk (Bag) 100 units, Embossed Tape 2000 units
- Height: 1.5mm max
- Dimensions: approximately 30.30mm x 30.30mm x 1.5mm
- Test frequency: 1MHz
- Certifications: Not specified
Buy the Murata LQH3NPN100MME – Reliable Power Inductor for Industrial Applications
Order the Murata LQH3NPN100MME inductor online today to ensure your electronic circuits are equipped with a reliable, high-quality power inductor. Designed for durability and efficiency, this inductor features a 10μH inductance, supports up to 1280mA current, and operates within a broad temperature range of 40°C to 125°C. Its compact size, low resistance, and magnetic resin shield make it ideal for power supplies, RF circuitry, and automotive applications. Purchase now for fast delivery and consistent performance!
Get Murata LQH3NPN100MME today—built for precision and long-lasting durability in power and RF circuits.
Frequently Asked Questions
Where can I buy Murata LQH3NPN100MMEL?
You can click on the BUY or RFQ button to purchase LQH3NPN100MMEL from an authorized Murata distributor.
How do I troubleshoot issues or seek technical support for part LQH3NPN100MMEL?
You can download the LQH3NPN100MMEL datasheet or visit the Murata website for support.
Who is the manufacturer of LQH3NPN100MMEL?
Murata
