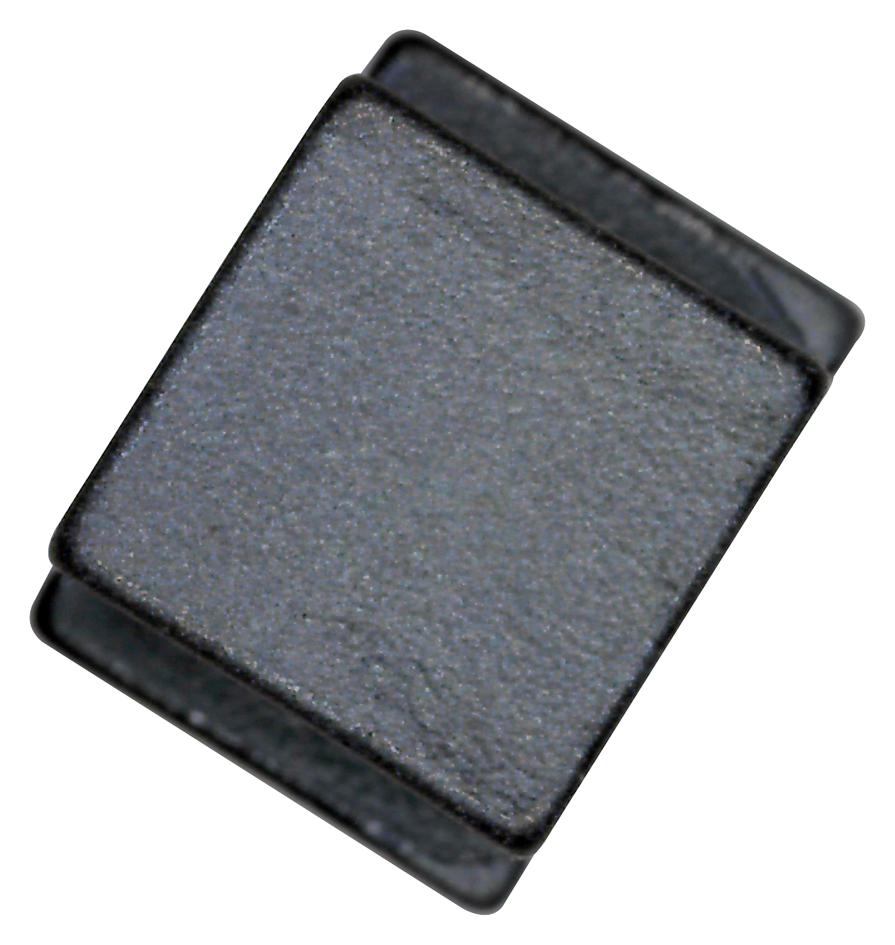

Murata LQH3NPN330MMEL High-Frequency Multilayer Ceramic Inductor
The LQH3NPN330MME# is a high-performance multilayer ceramic inductor designed for use in electronic circuits. It features a 33 µH inductance with a tolerance of ±20%, a size code 1212 (3.0mm x 3.0mm), and a maximum thickness of 1.5mm. It operates within a temperature range of 40°C to 125°C, with a self-resonance frequency of at least 8 MHz. Rated for a current of 760mA at 85°C ambient, and 460mA at 105°C, it offers low DC resistance of 0.662Ω, making it suitable for high-frequency applications.
Murata LQH3NPN330MMEL High-Frequency Multilayer Ceramic Inductor Specifications:
- Inductance: 33 µH ±20%
- Size code: 1212 (3.0mm x 3.0mm)
- Maximum Thickness: 1.5mm
- Inductance Test Frequency: 1MHz
- Rated Current: 760mA at 85°C, 460mA at 105°C
- DC Resistance: 0.662Ω
- Operating Temperature Range: 40°C to 125°C
- Self-Resonance Frequency: At least 8MHz
- Magnetic Shield: Magnetic Resin
- Temperature Rise: Max 40°C (ambient 85°C)
- Flux Change: within +30% of initial inductance
- Size Dimensions: 3.0mm x 3.0mm x 1.5mm
- Series: LQH3NPN_M
- Package: Embossed Tape, 2000 pieces per reel
- Mass: Approximate 0.0519g per piece
Buy the Murata Series NPN Inductor: LQH3NPN330MME#: 33 µH
Purchase the Murata high-performance multilayer ceramic inductor LQH3NPN330MME# online today. Designed for reliable operation in high-frequency circuits, this 33 µH inductor offers low resistance, excellent thermal stability, and a compact size ideal for mobile and embedded electronic applications. With a rated current up to 760mA and operating temperature range of 40°C to 125°C, it ensures long-lasting durability. Perfect for engineers seeking high quality and consistent performance in RF and power management modules.
Get Murata LQH3NPN330MME# today—built for high-frequency stability and durability in electronic circuits.
Frequently Asked Questions
Where can I buy Murata LQH3NPN330MMEL?
You can click on the BUY or RFQ button to purchase LQH3NPN330MMEL from an authorized Murata distributor.
How do I troubleshoot issues or seek technical support for part LQH3NPN330MMEL?
You can download the LQH3NPN330MMEL datasheet or visit the Murata website for support.
Who is the manufacturer of LQH3NPN330MMEL?
Murata
