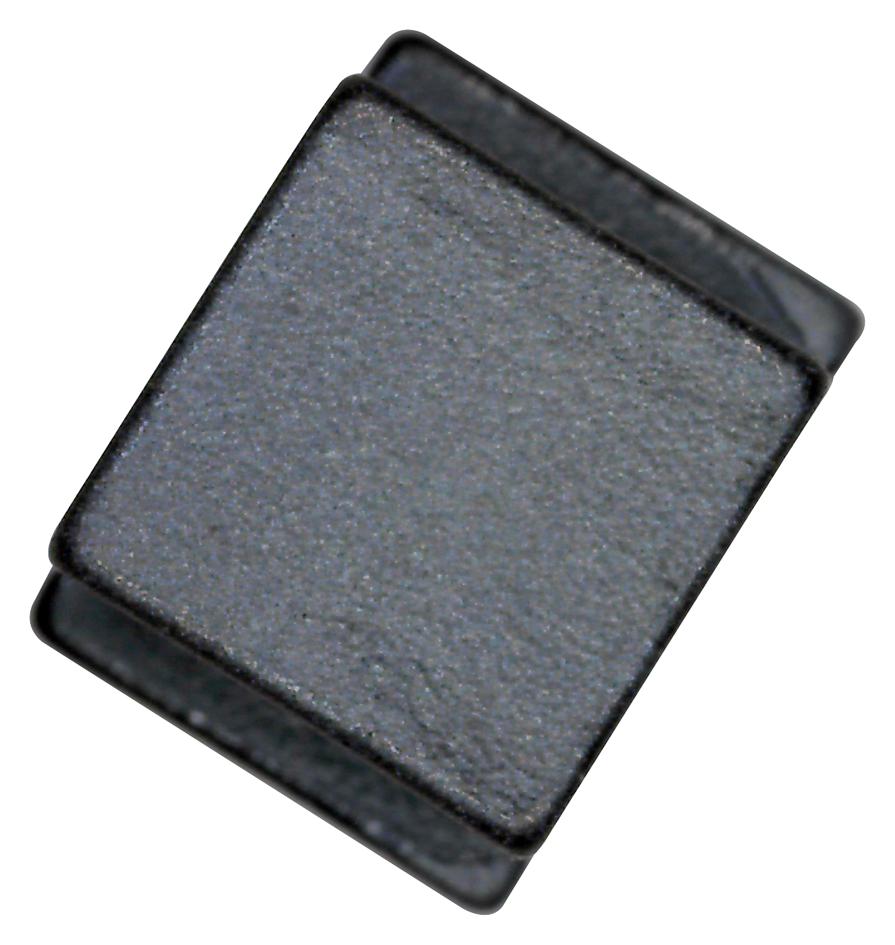

Murata LQH3NPZ220MMEL inductor
The LQH3NPZ220MME is a high-performance multilayer ceramic inductor with a size of 3.0 x 3.0 mm, offering a 22µH inductance value with a ±20% tolerance. Designed for compact electronic applications, it features a magnetic resin shield and operates within a temperature range of -40°C to +105°C. The inductor exhibits a self-resonance frequency of 410 MHz and features low DCR of approximately 0.48 ohms. Its small size and high quality make it ideal for power supply filtering, RF, and signal processing circuits demanding stability and efficiency.
Murata LQH3NPZ220MMEL inductor Specifications:
- Size: 3.0 x 3.0 mm, thickness 1.44 mm
- Inductance: 22µH ±20%
- Test Frequency: 1 MHz
- Rated current (Isat): 540 mA at 105°C ambient, 860 mA at 85°C ambient
- Max DC Resistance: 0.48 ohms
- Self resonance frequency: 410 MHz
- Operating Temperature Range: -40°C to +105°C
- Material: Magnetic resin shield
- Series: LQH3NPZ_ME
- Inductance change within 30% under rated current
- Temperature rise limit: 40°C at 85°C ambient, 20°C at 105°C ambient
- Dimensions: 3.0 mm x 3.0 mm x 1.44 mm
Buy the Murata LQH3NPZ220MME – Reliable Inductor for Industrial Applications
Purchase the Murata LQH3NPZ220MME inductor online today for your electronic projects. This compact, high-quality component offers 22 microhenries of inductance with excellent stability across a wide temperature range. Its low DCR and high self-resonance frequency ensure optimal performance in power filtering, RF circuits, and signal processing. Designed with a magnetic resin shield, it provides reliable operation in demanding industrial environments. Order now to leverage this dependable inductor that combines size efficiency and superior electrical characteristics for advanced electronic applications.
Get Murata LQH3NPZ220MME today—built for precision, reliability, and long-lasting durability in high-performance electronic devices.
Frequently Asked Questions
Where can I buy Murata LQH3NPZ220MMEL?
You can click on the BUY or RFQ button to purchase LQH3NPZ220MMEL from an authorized Murata distributor.
How do I troubleshoot issues or seek technical support for part LQH3NPZ220MMEL?
You can download the LQH3NPZ220MMEL datasheet or visit the Murata website for support.
Who is the manufacturer of LQH3NPZ220MMEL?
Murata
