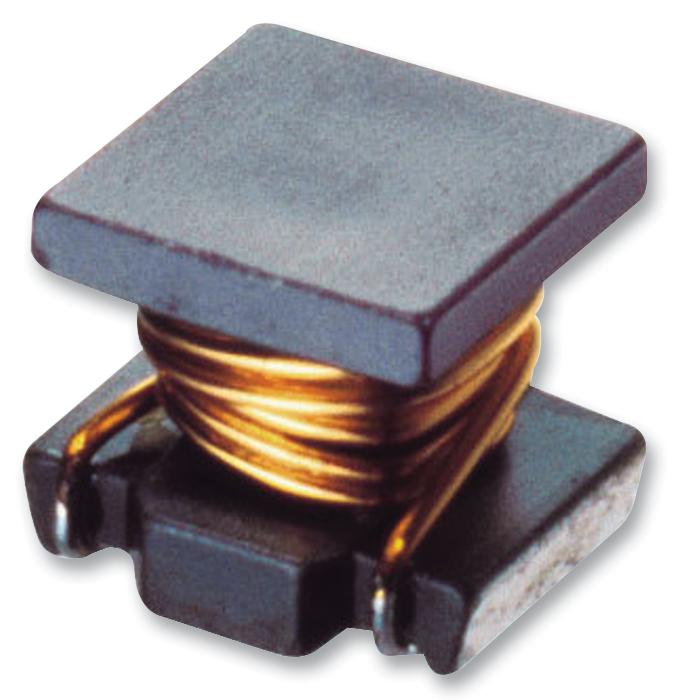

Murata LQH43NH150J03L 15H Inductor
The LQH43NH150J03 series is a high-quality 15H inductor designed for efficient energy storage and filtering in electronic circuits. These inductors feature a maximum self-temperature rise of 20°C under rated current and maintain inductance within +10% of the nominal value. With a rated current of 390mA, a DC resistance of 0.360Ω max, and a Q factor of at least 35 at 19MHz, they operate reliably over temperatures from -40°C to 125°C. Suitable for compact electronic designs, they are available in embossed taping packages for easy handling.
Murata LQH43NH150J03L 15H Inductor Specifications:
- Inductance: 15H ±5%
- Rated Current: 390mA (based on temperature rise of 20°C)
- Max. DC Resistance: 0.360Ω
- Average DC Resistance: 0.304Ω
- Self-Resonance Frequency: min. 19MHz
- Q Factor: Minimum 35 at test frequency
- Operating Temperature Range: -40°C to 125°C
- Series: LOH43NH_03
- Package: Embossed taping, size 180mm or 330mm, width 3.2mm, thickness 2.6mm
- Dimensions: Approximate size 18×12 inch (453×532 mm)
- Shielding: No magnetic shield
Buy the Murata Series LOH43NH_03 15H Inductor: LQH43NH150J03L
Enhance your electronic circuit designs with this high-quality 15H inductor featuring a stable inductance within ±5%, a rated current of 390mA, and operating temperature tolerance from -40°C to 125°C. Its low DC resistance and high Q factor ensure optimal performance in filtering applications. Packaged in embossed taping for easy assembly, this inductor is ideal for space-constrained, high-reliability electronic systems. Purchase online today to ensure seamless integration into your projects and enjoy dependable operation.
Order your Murata Series LOH43NH_03 15H inductor today and ensure reliable power filtering for your compact electronic projects.
Frequently Asked Questions
Where can I buy Murata LQH43NH150J03L?
You can click on the BUY or RFQ button to purchase LQH43NH150J03L from an authorized Murata distributor.
How do I troubleshoot issues or seek technical support for part LQH43NH150J03L?
You can download the LQH43NH150J03L datasheet or visit the Murata website for support.
Who is the manufacturer of LQH43NH150J03L?
Murata
