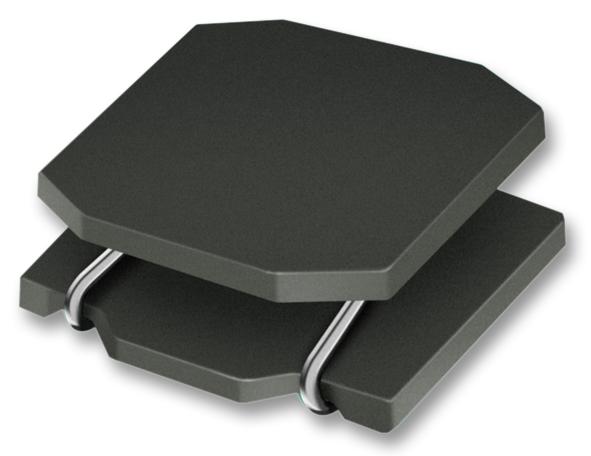

Murata LQH44PH1R0MPRL Power Inductor
The LQH44PH1R0MPRL is a 1 Henry inductance power inductor from Murata, designed for high-current applications with a rated current of 4300mA. It features a magnetic resin shield, operates within a temperature range of -40°C to 125°C, and maintains an inductance tolerance of ±20%. Suitable for use in power supply circuits, filtering, and electromagnetic interference suppression, this inductor offers reliable performance with low DC resistance of approximately 0.025Ω and a self-resonance frequency of 85MHz, ensuring stability in demanding industrial electronics and automotive systems.
Murata LQH44PH1R0MPRL Power Inductor Specifications:
- Inductance: 1H ±20%
- Inductance test frequency: 100kHz
- Rated current (Isat): 4300mA (based on inductance change), 3200mA at ambient temp. 85°C
- Rated current (Itemp): 1700mA at ambient temp. 105°C
- Max. DC resistance: 0.030Ω
- Average DC resistance: 0.025Ω
- Self-resonance frequency: 85MHz
- Operating temperature range: -40°C to 125°C
- Temperature rise limits: max 40°C at 85°C ambient, 20°C at 85°C to 105°C ambient
- Magnetic shield: Magnetic Resin
- Size: 40 x 40 mm, height approximately 15 mm
- Packaging: Embossed taping, minimum order quantity 1000 pieces
- Size code: 40 mm square, thickness 1.65 ±0.15mm
Buy the Murata LQH44PH1R0MPRL – Reliable Power Inductor for Industrial Applications
Secure the Murata LQH44PH1R0MPRL power inductor online today. This high-current component features a 1H inductance, low DC resistance, and operates efficiently within a wide temperature range from -40°C to 125°C. Ideal for power supply filtering, electromagnetic interference suppression, and industrial electronics, it ensures reliability and stability in challenging environments. With a magnetic resin shield and a self-resonance frequency of 85MHz, this inductor offers excellent performance for demanding electrical and automotive systems, making it a crucial component for advanced electronic designs.
Order your Murata SeriesLQH44PH1R0MPRL today and enhance your power electronics with this high-current, low-resistance inductor designed for demanding industrial systems.
Frequently Asked Questions
Where can I buy Murata LQH44PH1R0MPRL?
You can click on the BUY or RFQ button to purchase LQH44PH1R0MPRL from an authorized Murata distributor.
How do I troubleshoot issues or seek technical support for part LQH44PH1R0MPRL?
You can download the LQH44PH1R0MPRL datasheet or visit the Murata website for support.
Who is the manufacturer of LQH44PH1R0MPRL?
Murata
