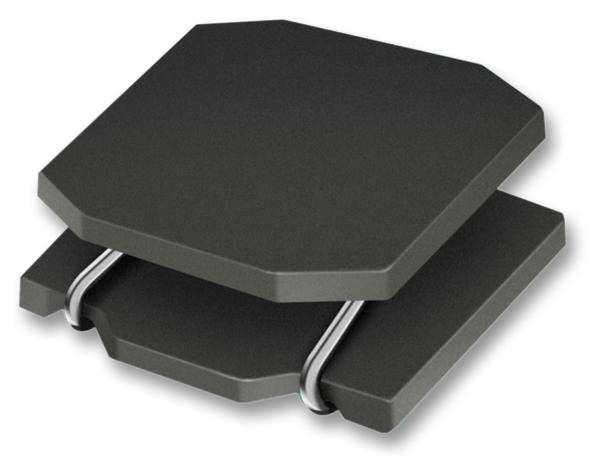

Murata LQH44PH3R3MPRL High-Frequency Inductor
The LQH44PH3R3MPRL is a high-quality, surface-mount inductor designed for electronic applications requiring stable inductance and low resistance. It features a 4.0 x 4.0 mm footprint with a typical height of 1.65 mm, employing a magnetic resin shield for enhanced magnetic performance. Rated at 3.3μH with a tolerance of 20%, it supports a maximum DC resistance of 0.066Ω and a self-resonance frequency of 40MHz. Suitable for high-frequency circuits, it operates within a temperature range of -40°C to 125°C, ensuring reliable performance under varying conditions.
Murata LQH44PH3R3MPRL High-Frequency Inductor Specifications:
- Size: 4.0 x 4.0 mm, Height: 1.65 mm
- Inductance: 3.3μH with ±20% tolerance
- Test Frequency: 100kHz
- Rated current (Isat): 2300mA
- Operating Temperature Range: -40°C to 125°C
- DC Resistance: 0.066Ω maximum
- Self Resonance Frequency: 40MHz
- Shielding: Magnetic Resin
- Ambient Temperature: 85°C to 125°C
- Temperature Rise: Limited to 40°C at rated current
- Case: Surface-mount package
- Inductance change under rated current: within +30%
- Part Number: LQH44PH3R3MPRL
Buy the Buy Murata LQH44PH3R3MPRL Part Number 3.3μH Inductor Online
Acquire the Murata LQH44PH3R3MPRL inductor online today to ensure your electronic design benefits from superior inductance stability, low resistance, and compact size. Perfect for power supplies, RF modules, and high-speed circuits, this surface-mount component delivers consistent performance from -40°C to 125°C. Its magnetic resin shield enhances magnetic performance, making it suitable for demanding applications. Order now to incorporate a high-quality, reliable inductor that supports your engineering needs for durability and efficiency in modern electronic systems.
Get Murata LQH44PH3R3MPRL today—built for high-frequency stability and reliable performance in compact form factors.
Frequently Asked Questions
Where can I buy Murata LQH44PH3R3MPRL?
You can click on the BUY or RFQ button to purchase LQH44PH3R3MPRL from an authorized Murata distributor.
How do I troubleshoot issues or seek technical support for part LQH44PH3R3MPRL?
You can download the LQH44PH3R3MPRL datasheet or visit the Murata website for support.
Who is the manufacturer of LQH44PH3R3MPRL?
Murata
