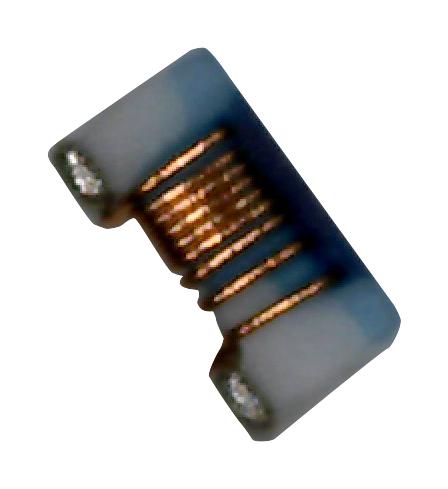

Murata LQW15AN15NH00D Chip Inductor
The LQW15AN15NH00D is a high-quality chip inductor from the LQW15AN series, designed for efficient energy storage and filtering applications in compact electronic devices. This surface-mount component features an inductance of 15 nH with tight tolerances, high self-resonant frequency, and rated currents suitable for demanding environments. Its robust construction ensures long-term durability, excellent solderability, and environmental resilience, making it ideal for use in communication equipment, consumer electronics, and automotive applications requiring high-performance inductors with precise electrical characteristics.
Murata LQW15AN15NH00D Chip Inductor Specifications:
- Inductance: 15 nH
- Tolerance: ±0.2 nH
- Rated Current: 750 mA
- Self-Resonant Frequency: ≥ several GHz (min. 2-3 GHz typical)
- Q Factor: ≥ 20 (at 100 MHz)
- DC Resistance: approximately 0.07 Ω
- Operating Temperature Range: -55°C to +125°C
- Storage Conditions: -10°C to +40°C, 15% to 85% RH, avoid corrosive gases
- Mounting: Surface-mount, reflow process compatible
- Size: 2.5 x 1.25 x 1.0 mm
Buy the Murata Series LQW15AN Inductor: 15NH
Purchase the Murata LQW15AN15NH00D chip inductor online today and ensure your electronic projects benefit from high inductance accuracy, exceptional thermal stability, and durable surface-mount design. Ideal for high-frequency communication systems, power supplies, and filtering applications, this compact component offers reliable performance with precise electrical characteristics. Designed for easy reflow soldering and long-term environmental stability, it guarantees seamless integration into your manufacturing process and end products. Trust Murata's quality for your critical electronic components—order now for fast delivery!
Get Murata LQW15AN15NH00D today—built for high reliability, efficient energy filtering, and long-lasting performance in compact electronic designs.
Frequently Asked Questions
Where can I buy Murata LQW15AN15NH00D?
You can click on the BUY or RFQ button to purchase LQW15AN15NH00D from an authorized Murata distributor.
How do I troubleshoot issues or seek technical support for part LQW15AN15NH00D?
You can download the LQW15AN15NH00D datasheet or visit the Murata website for support.
Who is the manufacturer of LQW15AN15NH00D?
Murata
