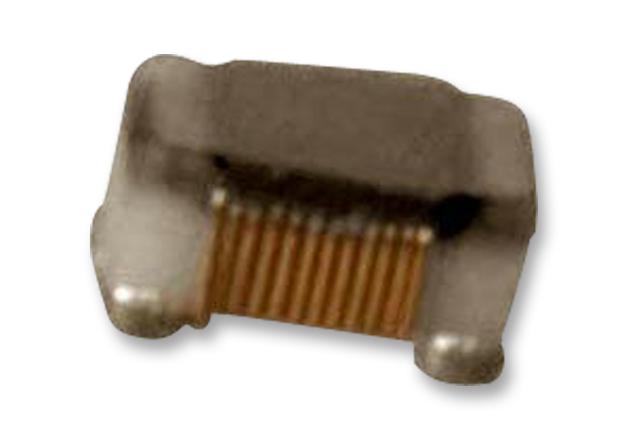

Murata LQW18AN3N6D00D High-Frequency Chip Inductor
The LQW18AN3N6D00D is a high-performance multilayer chip inductor designed for compact electronic devices. It features a low profile of 0.8 mm height, with dimensions of 1.6 x 0.8 mm, and offers an inductance of 3.6 nH at 100 MHz. This inductors series supports rated currents up to 850 mA, with a maximum DC resistance of 0.059 ohms, and a self-resonance frequency of 6000 MHz. Suitable for RF and high-frequency applications, it provides high Q values and reliable operation in a small package, ideal for modern electronic designs requiring miniaturization.
Murata LQW18AN3N6D00D High-Frequency Chip Inductor Specifications:
- Size: 1.6 x 0.8 mm, height 0.8 mm
- Size Code: 0603 (1608)
- Inductance: 3.6 nH at 100 MHz
- Inductance Test Frequency: 100 MHz
- Rated Current: 850 mA (based on temperature rise)
- DC Resistance: 0.059 ohms
- Q Factor: 25 at 250 MHz
- Self Resonance Frequency: 6000 MHz
- Operating Temperature Range: -55°C to +105°C
- Material: Ceramic multilayer
- Series: LQW18AN
- Impedance: 16 to 106 ohms across frequency
- Frequency Range: Up to 100 MHz for inductance characteristics
- Application: RF circuits, high-frequency filtering, miniaturized electronic modules
Buy the Murata Series LQW18AN High-Frequency Inductor: LQW18AN3N6D00D
Order the Murata LQW18AN3N6D00D online today for reliable performance in RF and high-frequency circuits. This compact multilayer chip inductor offers 3.6 nH inductance at 100 MHz, supports rated currents up to 850 mA, and features low DC resistance of 0.059 ohms. Its small size of 1.6 x 0.8 mm and height of 0.8 mm make it ideal for miniaturized applications, ensuring high Q values and excellent stability across operating temperatures. Purchase now for quality, durability, and seamless integration into your designs.
Get Murata LQW18AN3N6D00D today—built for precision and long-lasting durability in compact high-frequency electronic applications.
Frequently Asked Questions
Where can I buy Murata LQW18AN3N6D00D?
You can click on the BUY or RFQ button to purchase LQW18AN3N6D00D from an authorized Murata distributor.
How do I troubleshoot issues or seek technical support for part LQW18AN3N6D00D?
You can download the LQW18AN3N6D00D datasheet or visit the Murata website for support.
Who is the manufacturer of LQW18AN3N6D00D?
Murata
