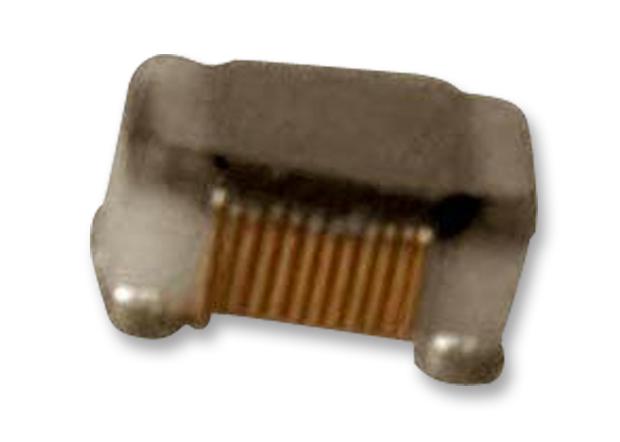

Murata LQW18AN6N2C00D Multilayer Chip Inductor
The LQW18AN6N2C00D is a high-quality multilayer chip inductor designed for electronic applications requiring stable inductance and minimal resistance. These inductors feature a size of 0603 (1608 in mm), inductance of 6.2nH with a tolerance of 0.2nH, operating at a test frequency of 100MHz with a self-resonance frequency above 6000MHz. Rated for a current of 750mA and a maximum DC resistance of 0.082Ω, they are suitable for compact, high-frequency circuits in diverse electronic devices and industrial systems.
Murata LQW18AN6N2C00D Multilayer Chip Inductor Specifications:
- Size: 0603 (1608 in mm)
- Inductance: 6.2nH ±0.2nH
- Inductance Test Frequency: 100MHz
- Rated Current: 750mA
- Maximum DC Resistance: 0.082Ω
- Self Resonance Frequency: >6000MHz
- Operating Temperature Range: -55°C to +85°C
- Size Dimensions: Length 1.6mm, Width 0.8mm, Thickness 0.8mm
- Q factor: 35 at 250MHz
- Material: Multilayer ceramic
- Series: LQW18AN00
- Impedance: Variable with frequency
Buy the Murata LQW18AN6N2C00D – Reliable High-Frequency Inductor for Industrial Applications
Discover the reliable high-frequency performance of the Murata LQW18AN6N2C00D multilayer chip inductor. Designed for compact electronic circuits, this 0603 size inductor offers 6.2nH inductance with low DC resistance of 0.082Ω, supporting high-speed and high-frequency applications. Rated for 750mA current, it ensures stable operation in a wide temperature range. Ideal for industrial, automotive, and consumer electronic devices, this inductor provides excellent Q factor, self-resonance over 6000MHz, and consistent performance, making your projects more efficient and dependable.
Order your Murata Series LQW18AN6N2C00D high-frequency inductor today and ensure your electronic circuits operate with minimal interference and maximum stability.
Frequently Asked Questions
Where can I buy Murata LQW18AN6N2C00D?
You can click on the BUY or RFQ button to purchase LQW18AN6N2C00D from an authorized Murata distributor.
How do I troubleshoot issues or seek technical support for part LQW18AN6N2C00D?
You can download the LQW18AN6N2C00D datasheet or visit the Murata website for support.
Who is the manufacturer of LQW18AN6N2C00D?
Murata
