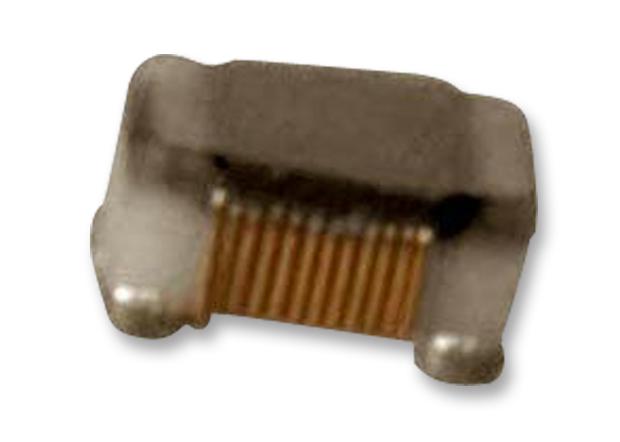

Murata LQW18ANR12G8ZD RF Inductor
The LQW18ANR12G8ZD is a high-frequency RF inductor designed for electronic applications requiring low DC resistance and large current capacity. Featuring a size of 0603 (1608), it operates within a temperature range of -55°C to 125°C, with an inductance of 120nH at a test frequency of 100MHz. With a max. DC resistance of 0.720Ω, it offers a self-resonance frequency above 1650MHz and a rated current of 450mA, making it suitable for RF filtering, noise suppression, and high-frequency circuits in compact electronics.
Murata LQW18ANR12G8ZD RF Inductor Specifications:
- Size: 0603 (1608)
- Inductance: 120nH at 100MHz
- DC Resistance: Max. 0.720Ω
- Q factor: Min. 32 at 150MHz
- Self-resonance Frequency: Min. 1650MHz
- Rated Current: 450mA
- Operating Temperature Range: -55°C to 125°C
- Size Dimensions: Length 1.65mm, Width 0.99mm, Height 0.92mm
- Series: LQW18AN_8Z
- Material: Ferrite core with metalized coating
- Application: RF filtering, noise suppression in high-frequency circuits
Buy the Murata Series LQW18ANR12G8Z RF Inductor: 120nH Compact High-Frequency Filter PartNumber
Enhance your electronic projects with the Murata LQW18ANR12G8Z RF inductor. This high-quality inductor offers low DC resistance, 120nH inductance in a compact 0603 size, and operates across a wide temperature range from -55°C to 125°C. Its high Q factor and self-resonance frequency above 1650MHz make it ideal for RF filtering, noise suppression, and high-frequency applications. Purchase online today for reliable performance in your electronic and communication systems with this durable, precision component.
Get Murata LQW18ANR12G8Z today—engineered for high-frequency precision and durability in compact electronic designs.
Frequently Asked Questions
Where can I buy Murata LQW18ANR12G8ZD?
You can click on the BUY or RFQ button to purchase LQW18ANR12G8ZD from an authorized Murata distributor.
How do I troubleshoot issues or seek technical support for part LQW18ANR12G8ZD?
You can download the LQW18ANR12G8ZD datasheet or visit the Murata website for support.
Who is the manufacturer of LQW18ANR12G8ZD?
Murata
