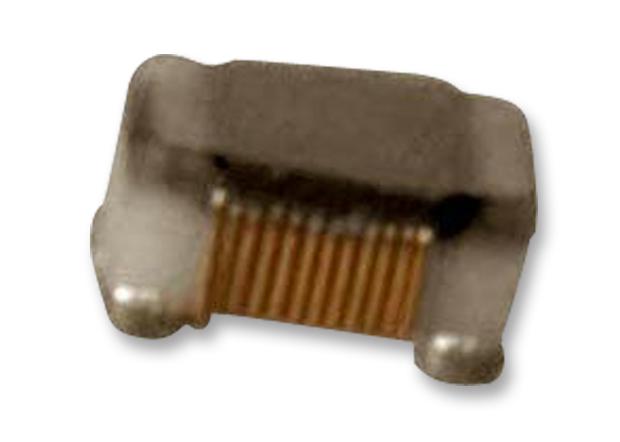

Murata LQW18ASR10J00D RF Inductor
The LQW18ASR10J00D is a high-performance ceramic inductor with a compact 0603 (1608) size, offering a 100nH inductance with a 5% tolerance. Designed for use in RF circuits, it features a maximum DC resistance of 0.589 Ohms, a rated current of 400mA, and operates within a temperature range of -55°C to +126°C. Its high self-resonance frequency of at least 1400MHz makes it suitable for demanding high-frequency applications in miniature electronic designs, ensuring efficient signal filtering and power management with minimal size and excellent performance stability.
Murata LQW18ASR10J00D RF Inductor Specifications:
- Size: 0603 (1608) inch (mm): 1.6 x 0.8 x 0.8 mm
- Inductance: 100nH ±5%
- Inductance Test Frequency: 150MHz
- Rated Current: 400mA (based on temperature rise)
- Max. DC Resistance: 0.589 Ohms
- Self Resonance Frequency: ≥1400MHz
- Operating Temperature Range: -55°C to +126°C
Buy the Murata Series RF Inductor: LQW18ASR10J00D
Purchase the Murata RF Inductor LQW18ASR10J00D online today to ensure your RF and power circuits benefit from high performance, minimal size, and exceptional stability. This 0603 size component offers 100nH inductance with a 5% tolerance, a maximum DC resistance of 0.589 Ohms, and a high self-resonance frequency of at least 1400MHz. Ideal for demanding applications, it supports operating temperatures up to 126°C and provides reliable signal filtering and power management in miniature electronic devices. Get yours now for quality, efficiency, and seamless integration.
Order your Murata Series RF Inductor LQW18ASR10J00D today and equip your high-frequency circuits with reliable, compact magnetic components.
Frequently Asked Questions
Where can I buy Murata LQW18ASR10J00D?
You can click on the BUY or RFQ button to purchase LQW18ASR10J00D from an authorized Murata distributor.
How do I troubleshoot issues or seek technical support for part LQW18ASR10J00D?
You can download the LQW18ASR10J00D datasheet or visit the Murata website for support.
Who is the manufacturer of LQW18ASR10J00D?
Murata
