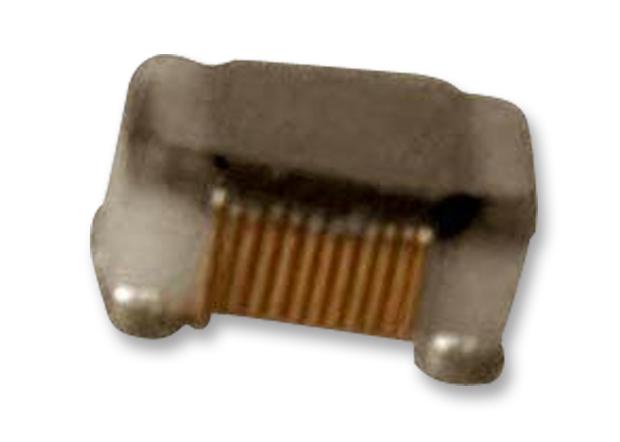

Murata LQW2BAS22NJ00L High-Frequency Inductor
The LQW2BAS22NJ00L is a surface-mount inductor ideal for high-frequency applications, featuring 22nH inductance with a 5% tolerance. It operates over -55°C to +105°C, with a maximum DC resistance of 0.220 ohms, and a self-resonance frequency of 2600MHz. Packaged in an 0805 (2015) size code, it provides a reliable solution for compact electronic designs and power filtering circuits, ensuring efficient performance in demanding environments with stable inductance and minimal parasitic effects.
Murata LQW2BAS22NJ00L High-Frequency Inductor Specifications:
- Size: 0805 (2015) package code
- Inductance: 22nH with 5% tolerance
- Rated current: 50mA
- DC Resistance: 0.220 ohms
- Self-resonance frequency: 2600MHz
- Test Frequency: 250MHz (inductance), 500MHz (Q factor)
- Temperature Range: -55°C to +105°C
- Impedance: varies with frequency, tested up to 106Hz
- Series: LQW2BAS_00
- Material: Ferrite core with inductance stability in high-frequency circuits
- Application: Power filtering, RF circuits, high-frequency switching
- Note: Datasheet is typical; verify latest specifications before procurement
- Compliance: RoHS compliant
Buy the Buy Murata LQW2BAS22NJ00L Part Number 22nH Surface-Mount Inductor Online
Secure your Murata LQW2BAS22NJ00L surface-mount inductor today through our online store. Designed for high-frequency applications, it offers a 22nH inductance with 5% tolerance, compact 0805 size, and a temperature range of -55°C to +105°C. Suitable for power filtering, RF circuits, and demanding electronic environments, this inductor ensures stable performance, minimal parasitic effects, and excellent reliability. Purchase now to elevate your circuit designs with top-quality components engineered for optimal functionality and durability.
Order your Murata Series LQW2BAS22NJ00L high-frequency inductor today and enhance your electronic projects with reliable, compact power filtering solutions.
Frequently Asked Questions
Where can I buy Murata LQW2BAS22NJ00L?
You can click on the BUY or RFQ button to purchase LQW2BAS22NJ00L from an authorized Murata distributor.
How do I troubleshoot issues or seek technical support for part LQW2BAS22NJ00L?
You can download the LQW2BAS22NJ00L datasheet or visit the Murata website for support.
Who is the manufacturer of LQW2BAS22NJ00L?
Murata
